Toyota Hilux (JPP)

1988-08 → 1997-08 · chassis RN1##,YN85,90,1##,LN85,90,1##,VZN130,KZN130 · catalogue 671550 · Europe

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

14 part groups · 7 illustrations

Illustrations

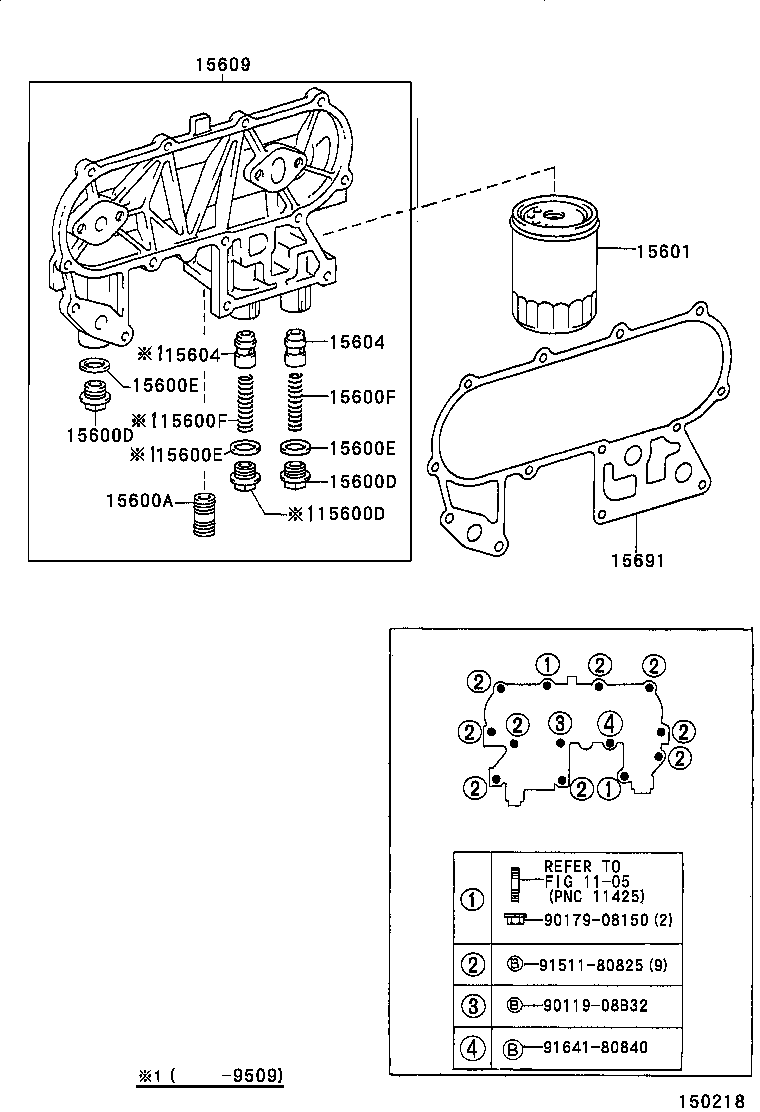

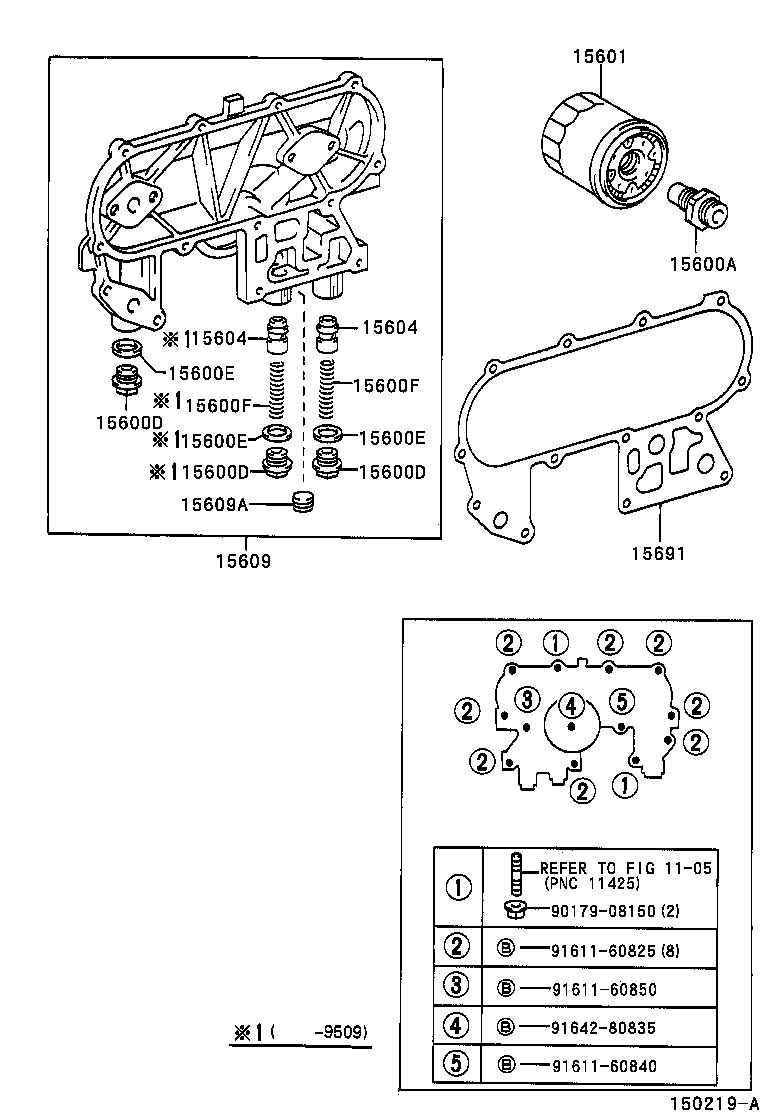

Figure MAG457A MAG457A 1993-08 → 1995-11 Figure 150218 150218 1988-08 → — Figure 150217A 150217A 1988-08 → — Figure 150219A 150219A 1990-01 → 1995-11 Figure MA6093A MA6093A 1988-08 → — Figure MAE085 MAE085 1989-08 → 1995-11 Figure MA6182A MA6182A 1988-08 → 1994-10

Part groups

PNCDescription
15600A Union(FOR OIL FILTER)
15600D Plug(FOR OIL FILTER)
15600E Washer(FOR OIL FILTER)
15600F Spring, Compression(FOR OIL FILTER)
15601 Filter Sub-assy, Oil
15604 Valve Sub-assy, Oil Safety
15609 Bracket Sub-assy, Oil Filter
15609A Plug, Taper Screw(FOR OIL FILTER BRACKET)
15609D Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET)
15609E Gasket, W/Head Straight Screw Plug
15690B Valve Assy, Oil Cooler Relief
15691 Gasket, Oil Filter
15701C Cover Sub-assy, Oil Cooler
15725A Gasket, Oil Cooler Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
