Toyota Hilux (JPP)

1988-08 → 1997-08 · chassis RN1##,YN85,90,1##,LN85,90,1##,VZN130,KZN130 · catalogue 671550 · Europe

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

64 part groups · 8 illustrations

Illustrations

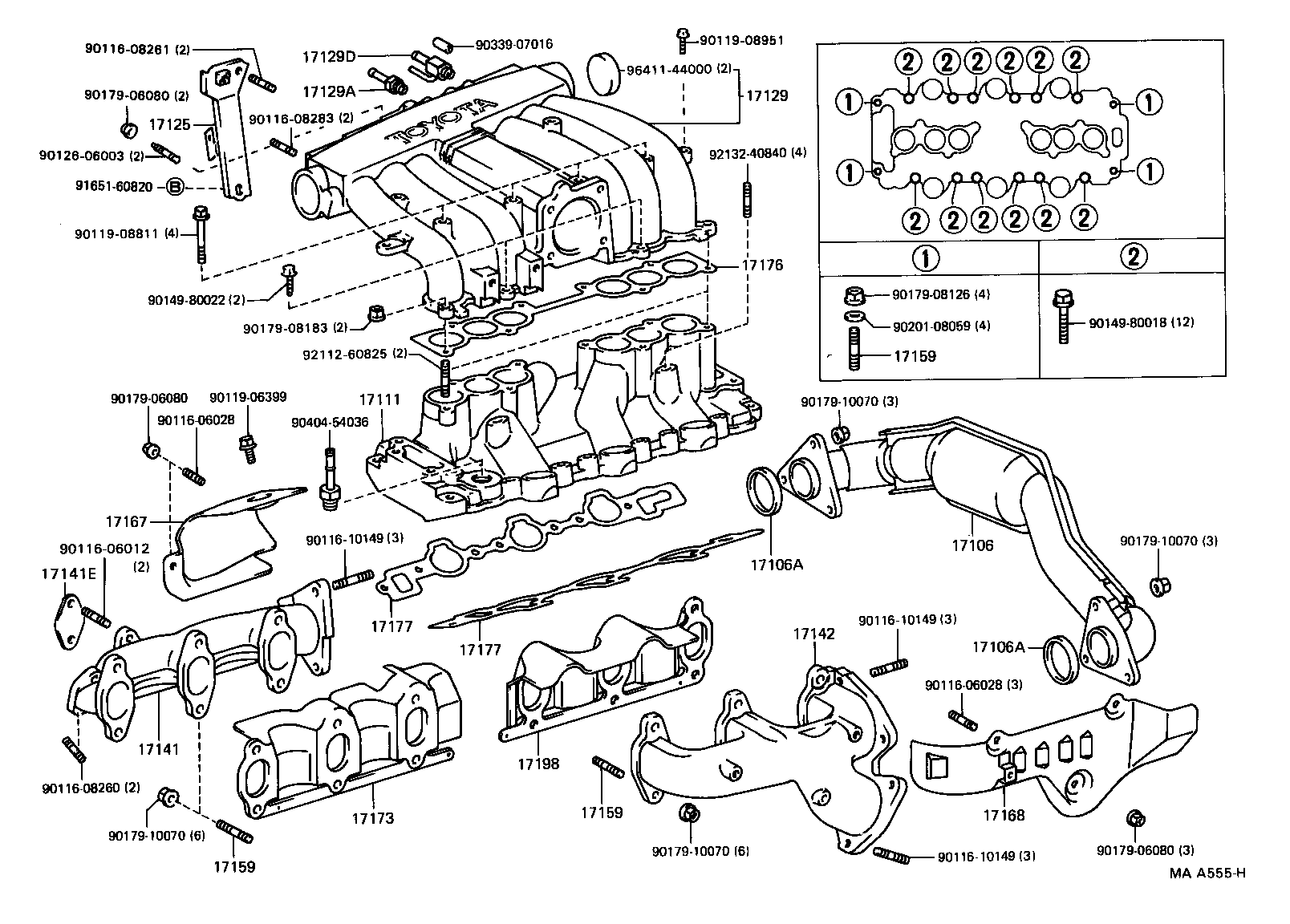

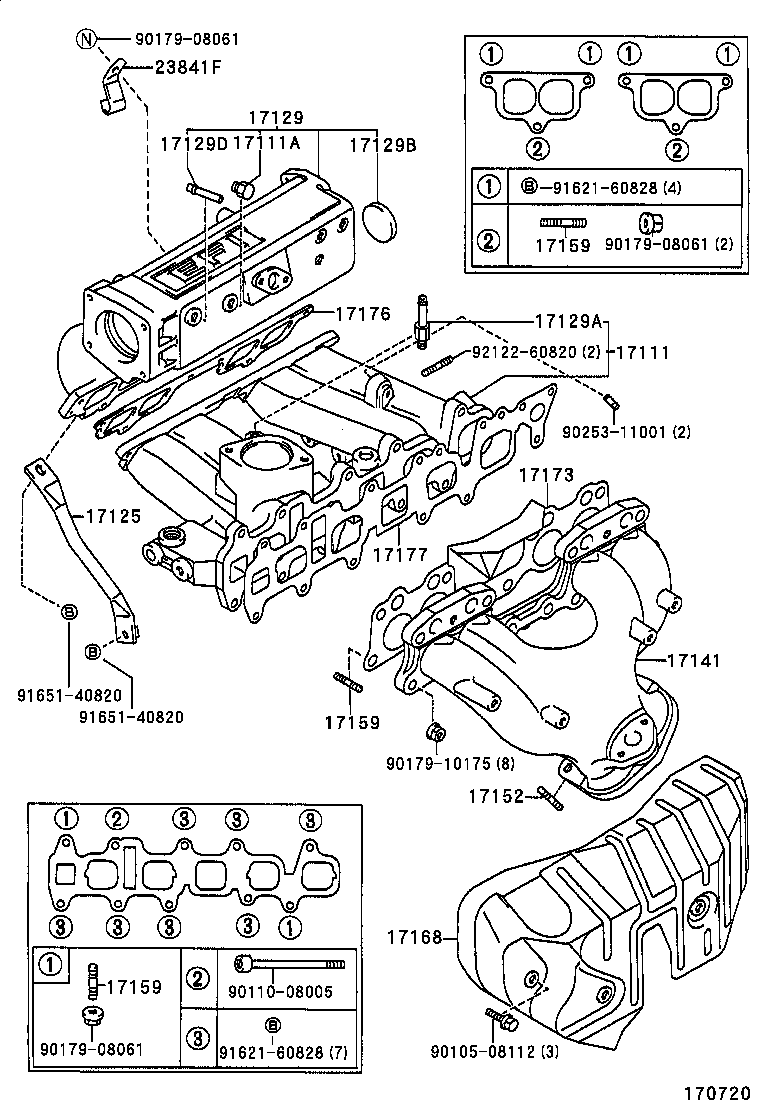

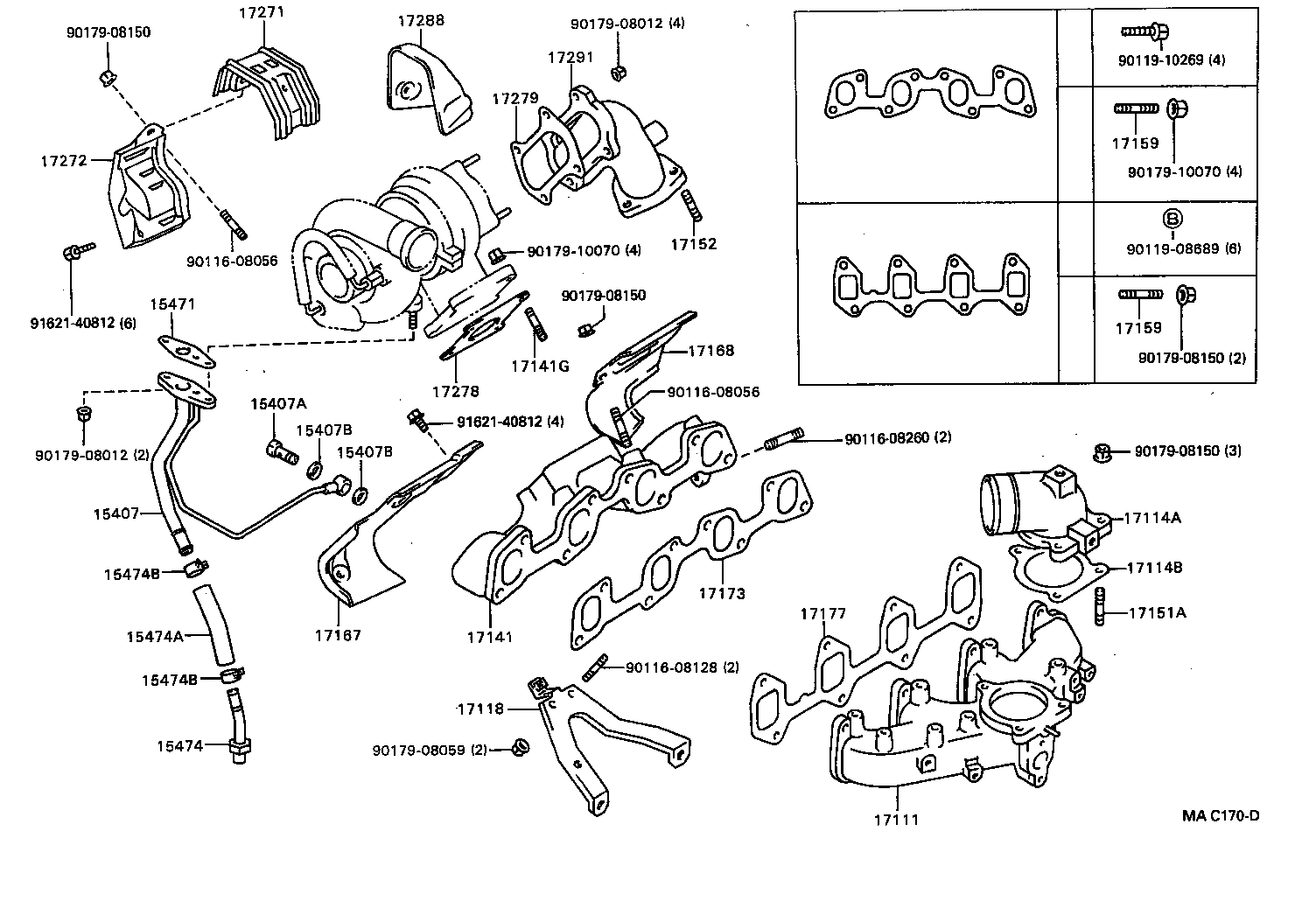

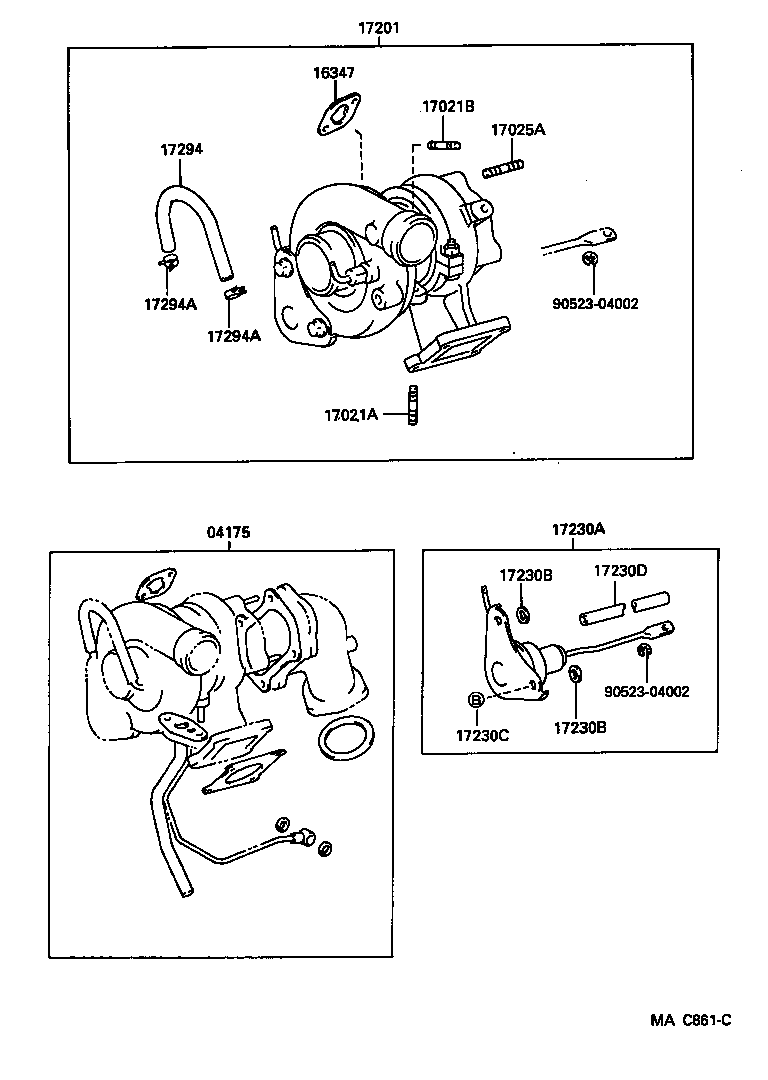

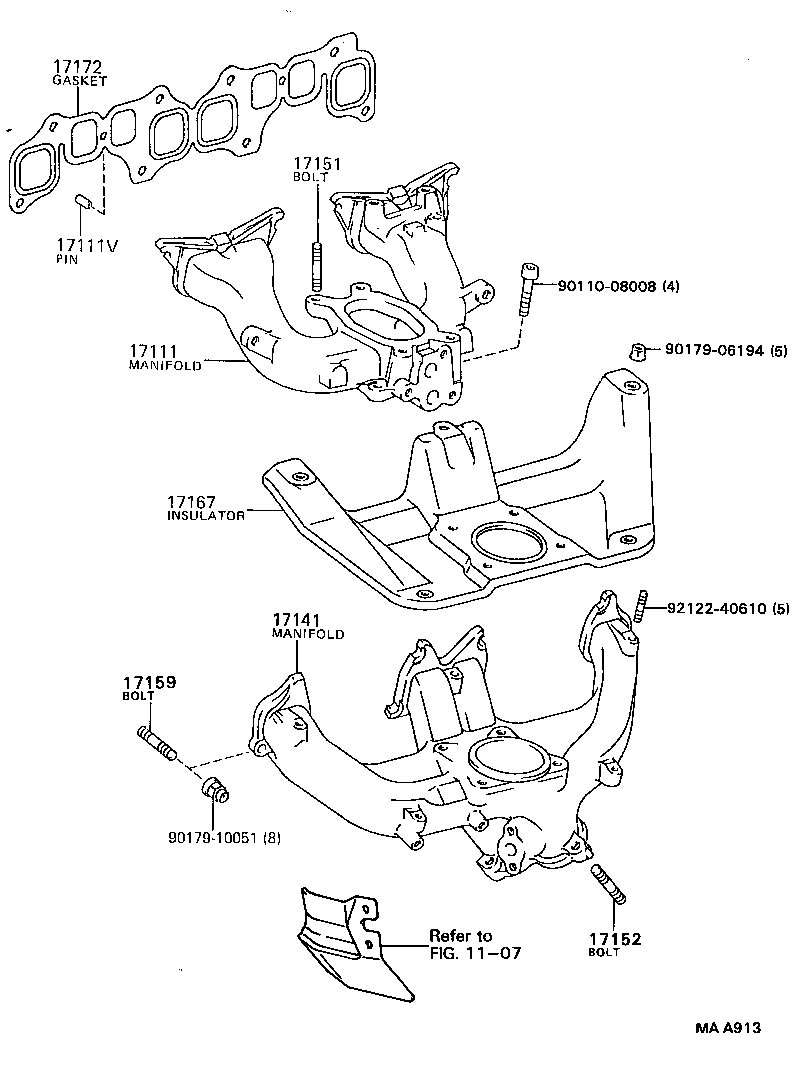

Figure MAH138A MAH138A 1993-08 → 1995-11 Figure MAG529A MAG529A 1993-08 → 1995-11 Figure MAB249K MAB249K 1988-08 → — Figure MAC170D MAC170D 1990-01 → 1995-11 Figure MAC861C MAC861C 1990-01 → 1995-11 Figure 170720 170720 1988-08 → — Figure MAA555H MAA555H 1989-08 → 1995-11 Figure MAA913 MAA913 1988-08 → 1994-08

Part groups

PNCDescription
04175 Gasket Kit, Turbocharger
15407 Pipe Sub-assy, Turbo Oil Inlet
15407A Bolt, Union(FOR TURBO OIL INLET PIPE)
15407B Gasket(FOR TURBO OIL INLET PIPE)
15471 Gasket, Turbo Oil Inlet
15472 Gasket, Turbo Oil Outlet, NO.1
15474 Pipe, Turbo Oil Outlet
15474A Hose, Turbo Oil Outlet
15474B Clamp OR Clip(FOR TURBO OIL OUTLET HOSE)
16347 Gasket, Water By-pass
16347C Gasket(FOR TURBO WATER PIPE)
17021A Bolt, Stud(FOR BEARING HOUSING)
17021B Bolt, Stud
17025A Bolt, Stud(FOR TURBINE HOUSING)
17106 Pipe Sub-assy, Exhaust Crossover
17106A Gasket, Exhaust Pipe
17111 Manifold, Intake
17111A Plug, NO.1
17111V Pin, Straight(FOR INTAKE MANIFOLD SETTING)
17113 Pipe, Intake
17114A Flange, Intake
17114B Gasket, Intake Flange
17118 Stay, Manifold
17125 Stay, Surge Tank, NO.1
17129 Tank, Intake Air Surge
17129A Union, NO.1
17129B Plug
17129D Union, NO.2
17141 Manifold, Exhaust
17141E Plate, Exhaust Manifold
17141G Bolt, Stud(FOR TURBOCHARGER)
17142 Case, Exhaust Manifold, NO.2
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17151A Bolt, Stud(FOR MANIFOLD TO VENTURI)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17172 Gasket, Manifold TO Cylinder Head
17173 Gasket, Exhaust Manifold TO Head
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
17198 Gasket, Exhaust Manifold, NO.2
17201 Turbocharger Sub-assy
17230A Repair Actuaor Assy, W/Bracket
17230B Washer, Plate(FOR REPAIR ACTUATOR SET)
17230C Bolt, W/Washer(FOR REPAIR ACTUATOR SET)
17230D Hose(FOR REPAIR ACTUATOR SET)
17271 Insulator, Turbo, NO.1
17272 Insulator, Turbo, NO.2
17274 Elbow, Compressor Inlet
17276 Gasket, Compressor Inlet
17278 Gasket, Turbo TO Exhaust Manifold
17279 Gasket, Turbine Outlet Elbow
17288 Insulator, Turbo, NO.3
17291 Elbow, Turbine Outlet
17293 Stay, Turbocharger
17294 Hose, Actuator
17294A Clip(FOR ACTUATOR HOSE)
17342H Hose, Air, NO.2(FOR TURBOCHARGER)
17342J Clip, Hose(FOR INTAKE PIPE)
17861F Connector, Intake Air
17861G Gasket, Intake Air Connector
23841F Clamp, Fuel Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
