Toyota Hilux (JPP)
1988-08 → 1997-08 · chassis RN1##,YN85,90,1##,LN85,90,1##,VZN130,KZN130 · catalogue 671550 · Europe
Discontinued model
Data version 1998-04

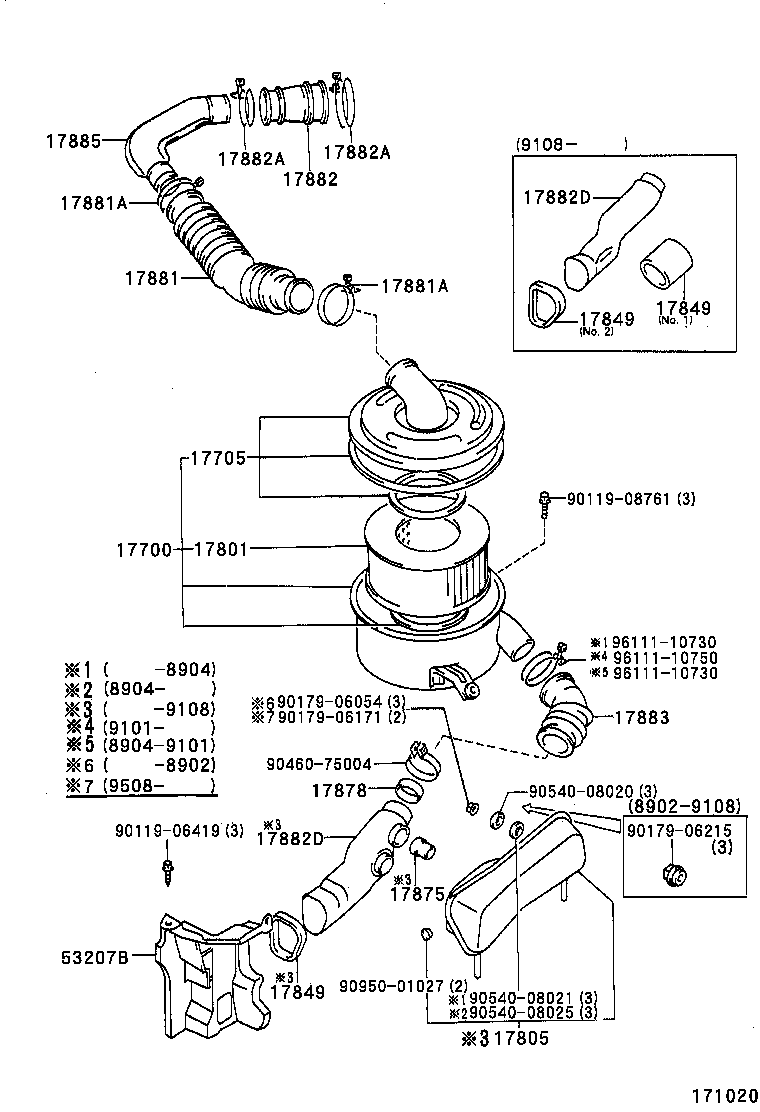

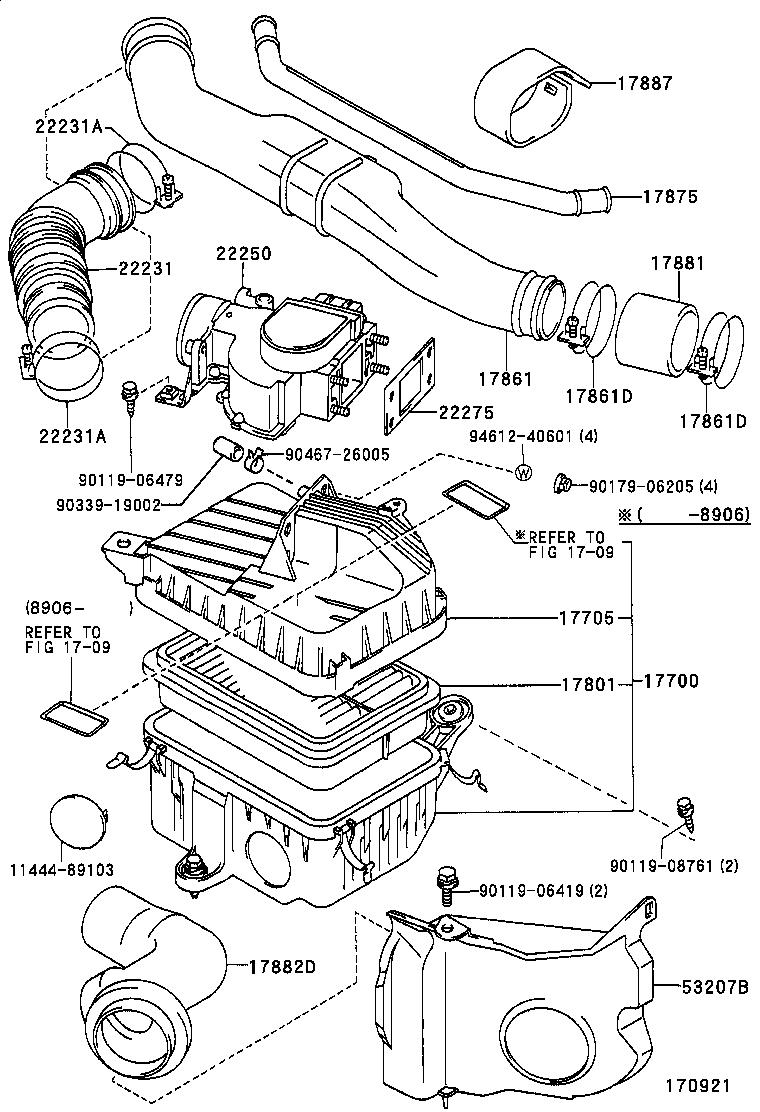

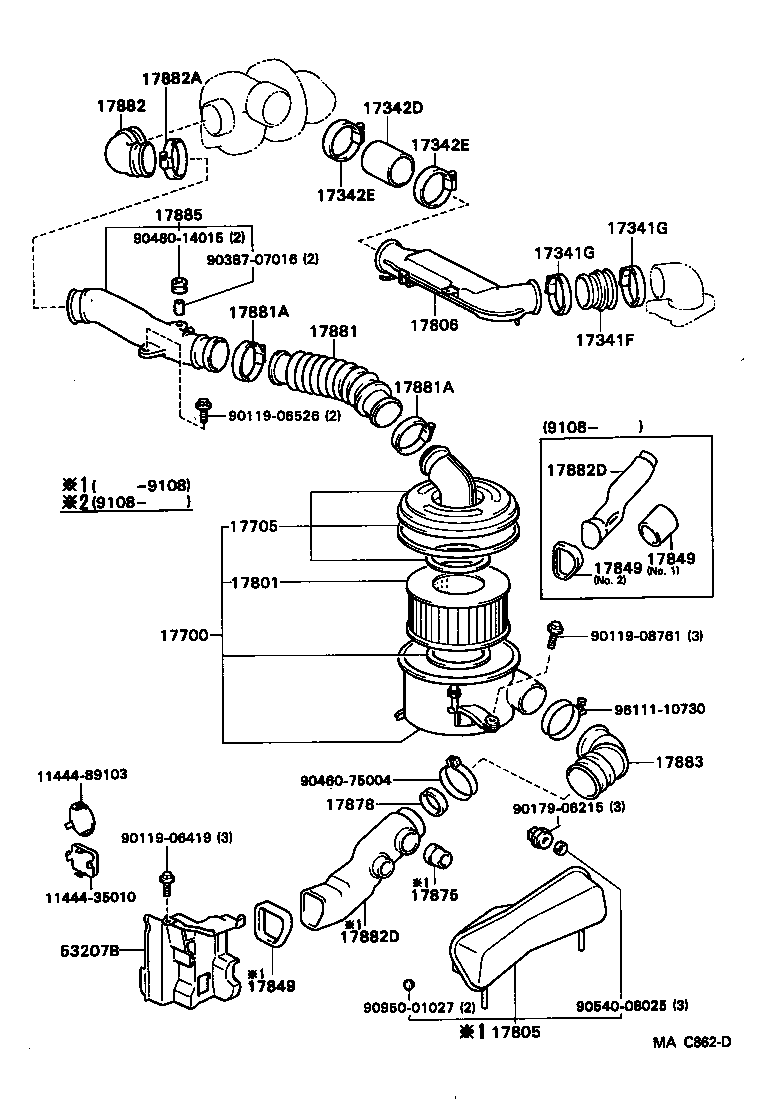

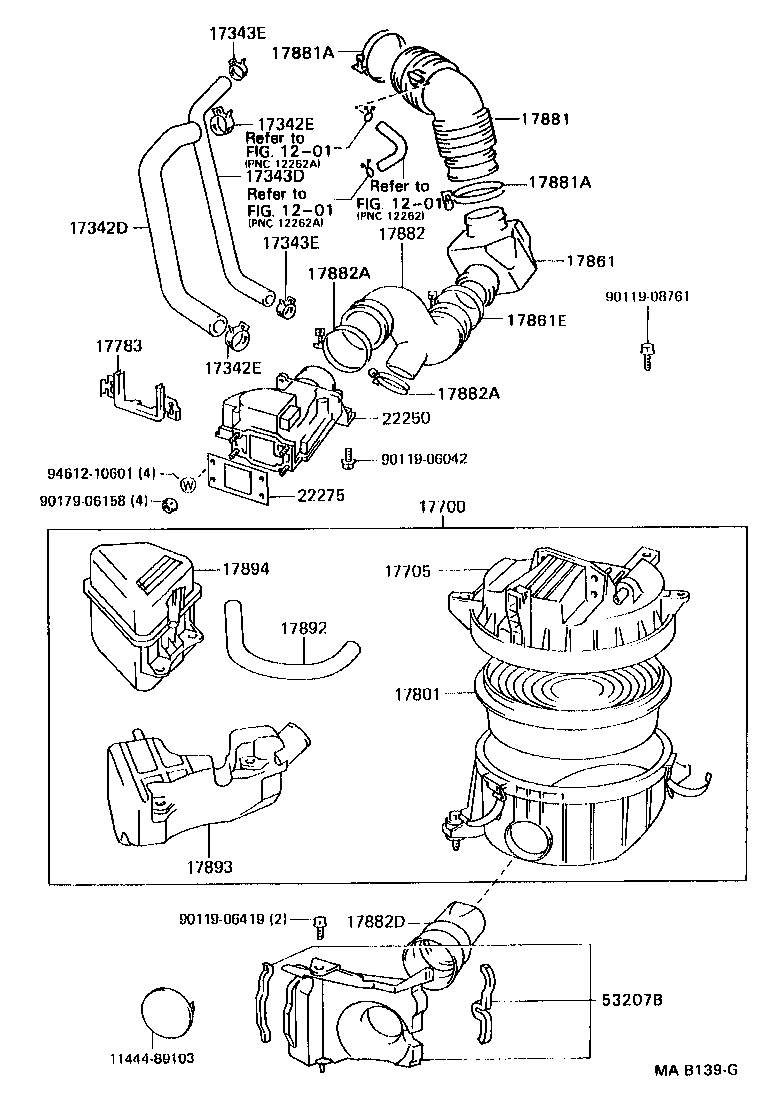

Air Cleaner
47 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 17061 | Diaphragm Sub-assy |
| 17341F | Hose, Air, NO.1 |
| 17341G | Clamp OR Clip(FOR AIR HOSE, NO.1) |
| 17342D | Hose, Air, NO.2 |
| 17342E | Clamp OR Clip(FOR AIR HOSE, NO.2) |
| 17343D | Hose, Air, NO.3 |
| 17343E | Clamp, Hose(FOR AIR HOSE, NO.3) |
| 17700 | Cleaner Assy, Air |
| 17700A | Nut, Wing(FOR AIR CLEANER) |
| 17700F | Bolt, Stud(FOR AIR CLEANER SETTING) |
| 17700V | Bush(FOR AIR CLEANER) |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17728 | Valve, Thermostatic |
| 17729 | Gasket, Thermostat Valve |
| 17749 | Support, Thermostat Valve |
| 17767 | Bracket, Air Cleaner |
| 17783 | Plate, Air Cleaner Baffle |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17805 | Connector Sub-assy, Intake Air |
| 17805F | Resonator Sub-assy, Intake Air |
| 17806 | Pipe Sub-assy, Air Cleaner, NO.2 |
| 17848 | Gasket, Air Cleaner TO Carburetor |
| 17849 | Gasket, Intake Air Connector |
| 17861 | Connector, Intake Air |
| 17861D | Clamp(FOR INTAKE AIR CONNECTOR) |
| 17861E | Clamp, Hose |
| 17875 | Pipe, Intake Air Connector |
| 17878 | Pipe, Intake Air Connector, NO.3 |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17882 | Hose, Air Cleaner, NO.2 |
| 17882A | Clamp(FOR AIR CLEANER HOSE, NO.2) |
| 17882D | Hose, Cool Air Intake |
| 17883 | Hose, Air Cleaner, NO.3 |
| 17885 | Pipe, Air Cleaner |
| 17885A | Hose, Air Cleaner, NO.5 |
| 17887 | Cover, Air Cleaner Hose |
| 17892 | Hose, Intake Air Resonator |
| 17893 | Resonator, Intake Air |
| 17894 | Bracket, Resonator |
| 17897 | Clamp, Hose(FOR AIR CLEANER) |
| 17902 | Inlet Sub-assy, Hot Air Intake, NO.1 |
| 22231 | Hose, Throttle Body |
| 22231A | Clamp OR Clip(FOR THROTTLE BODY HOSE) |
| 22250 | Meter Assy, Intake Air Flow |
| 22275 | Gasket, Air Flow Meter |
| 53207B | Duct Sub-assy, Cool Air |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
