Toyota Hilux (JPP)
1988-08 → 1997-08 · chassis RN1##,YN85,90,1##,LN85,90,1##,VZN130,KZN130 · catalogue 671550 · Europe
Discontinued model
Data version 1998-04
Vacuum Piping

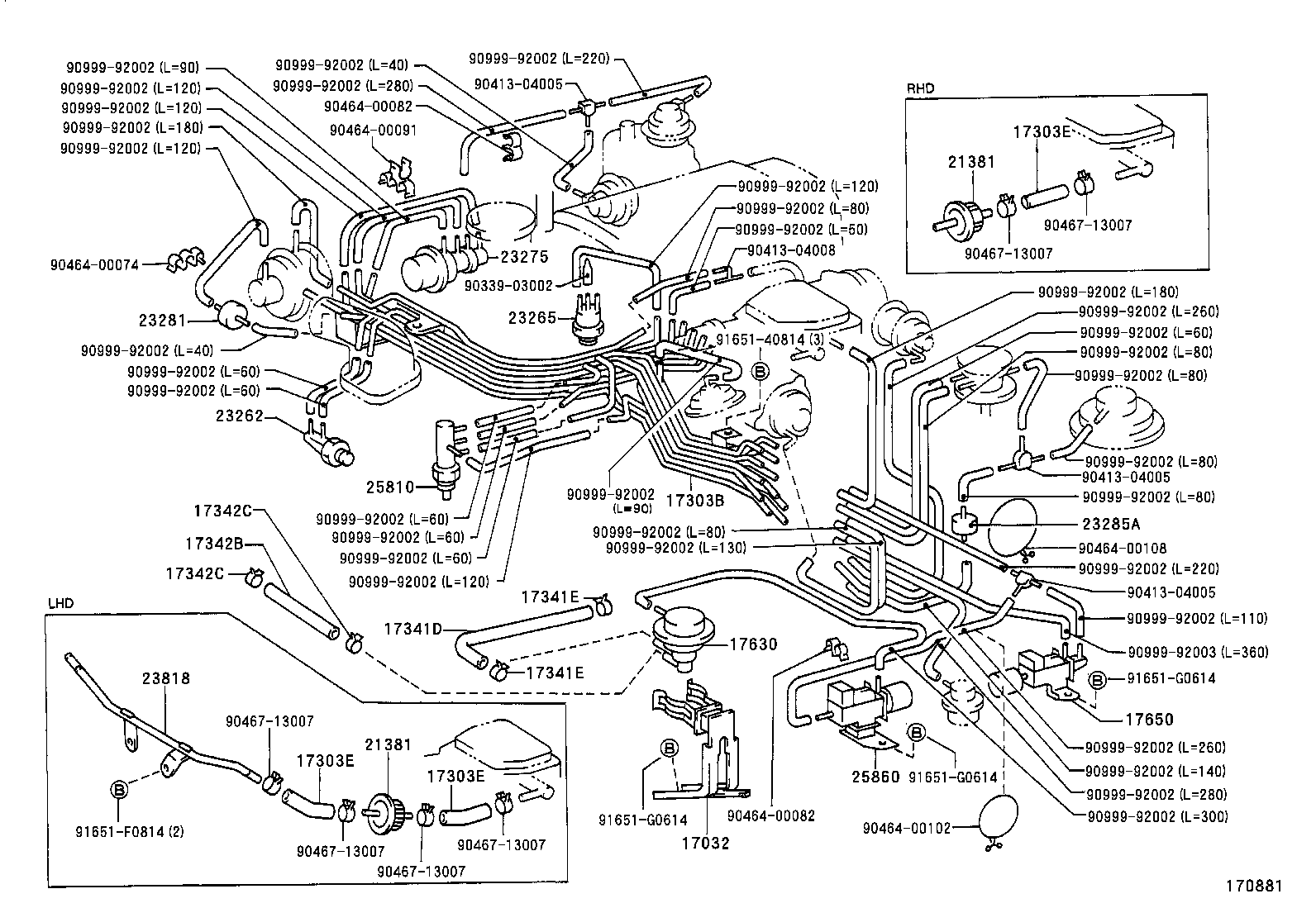

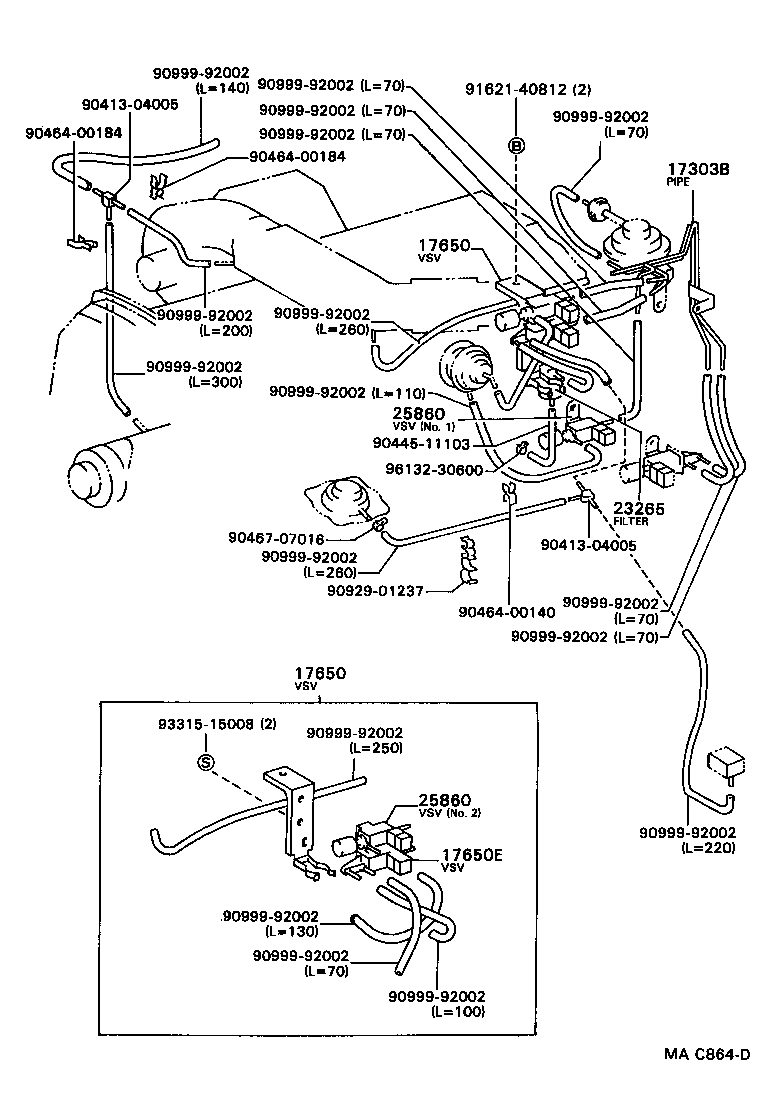

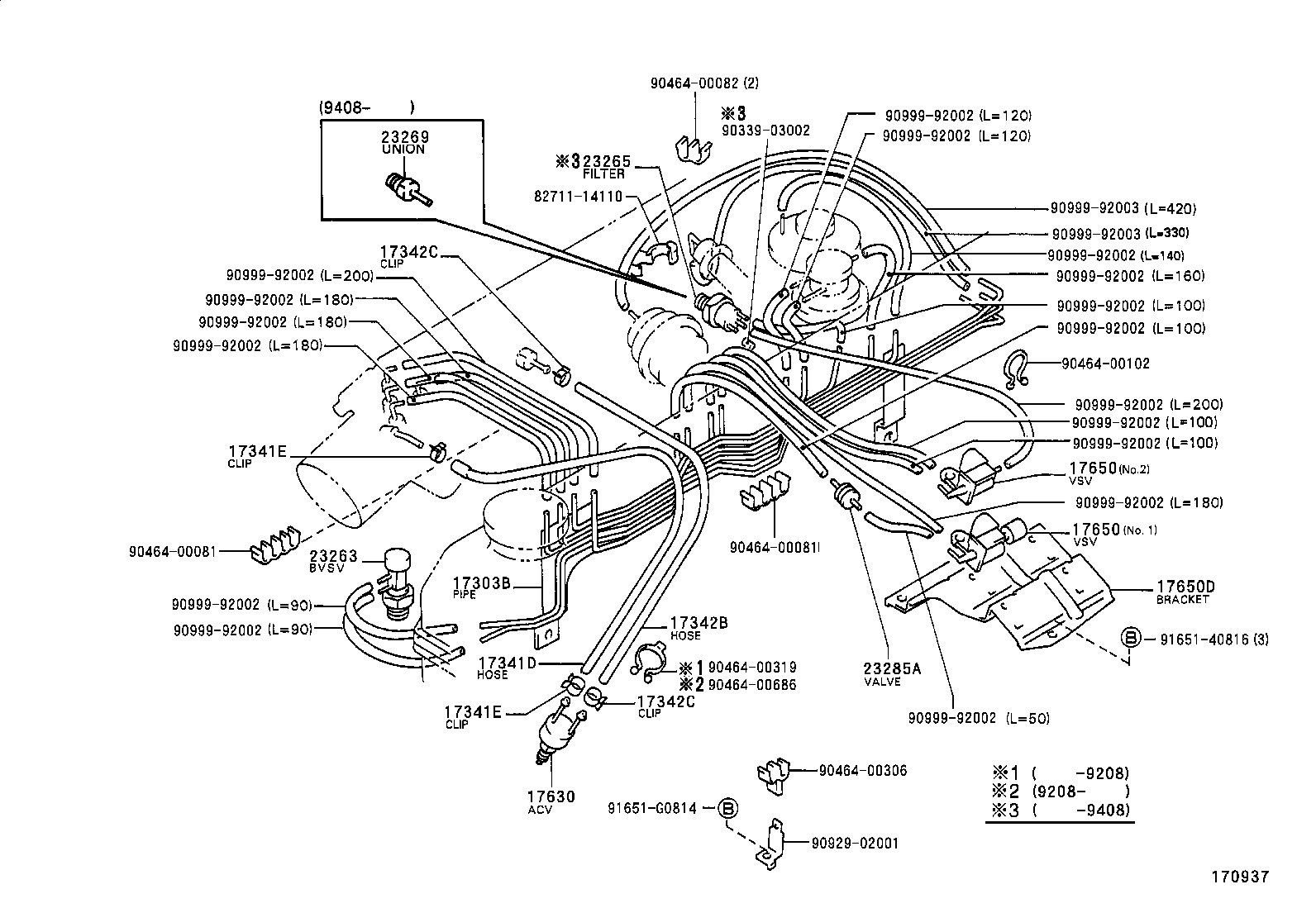

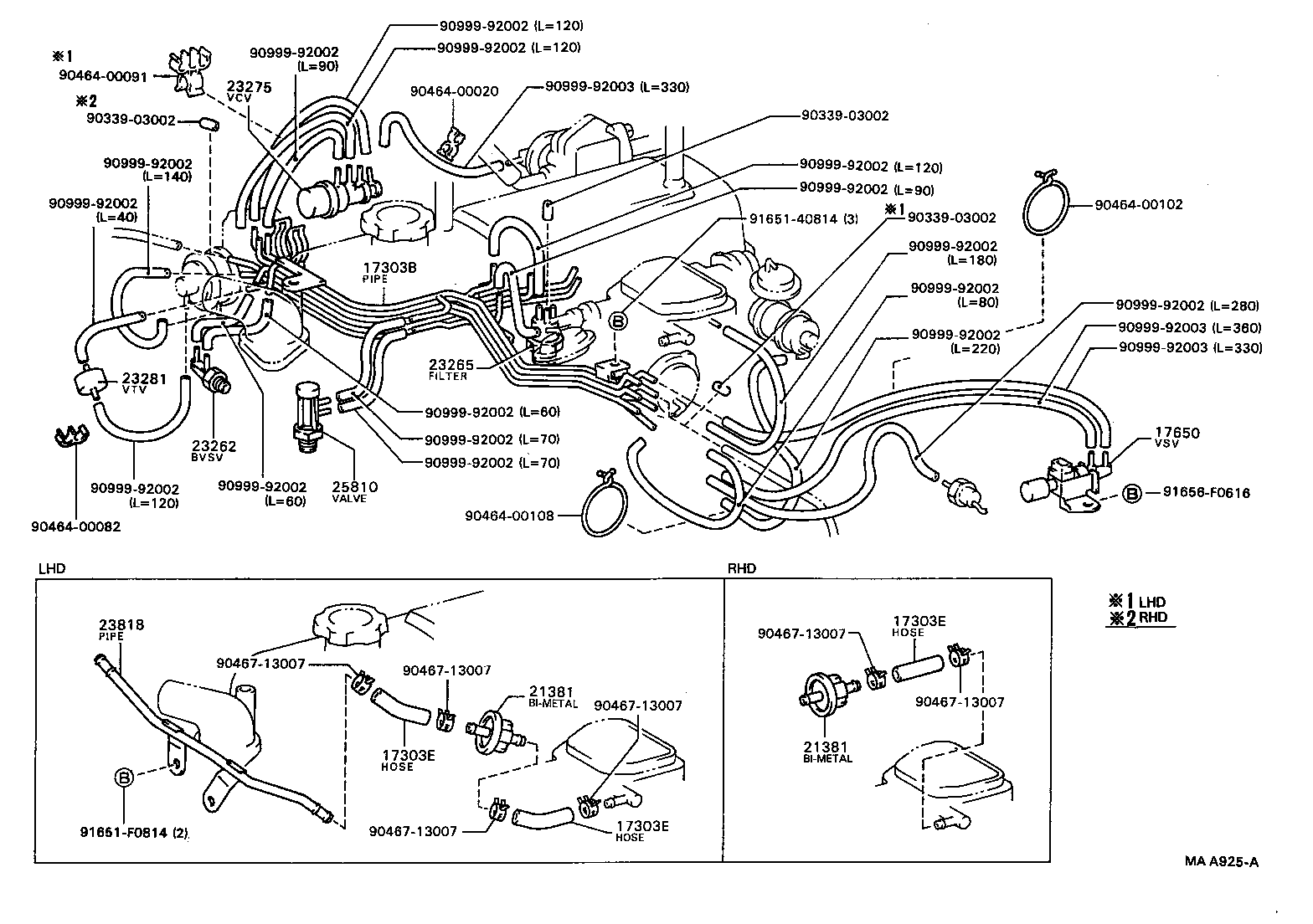

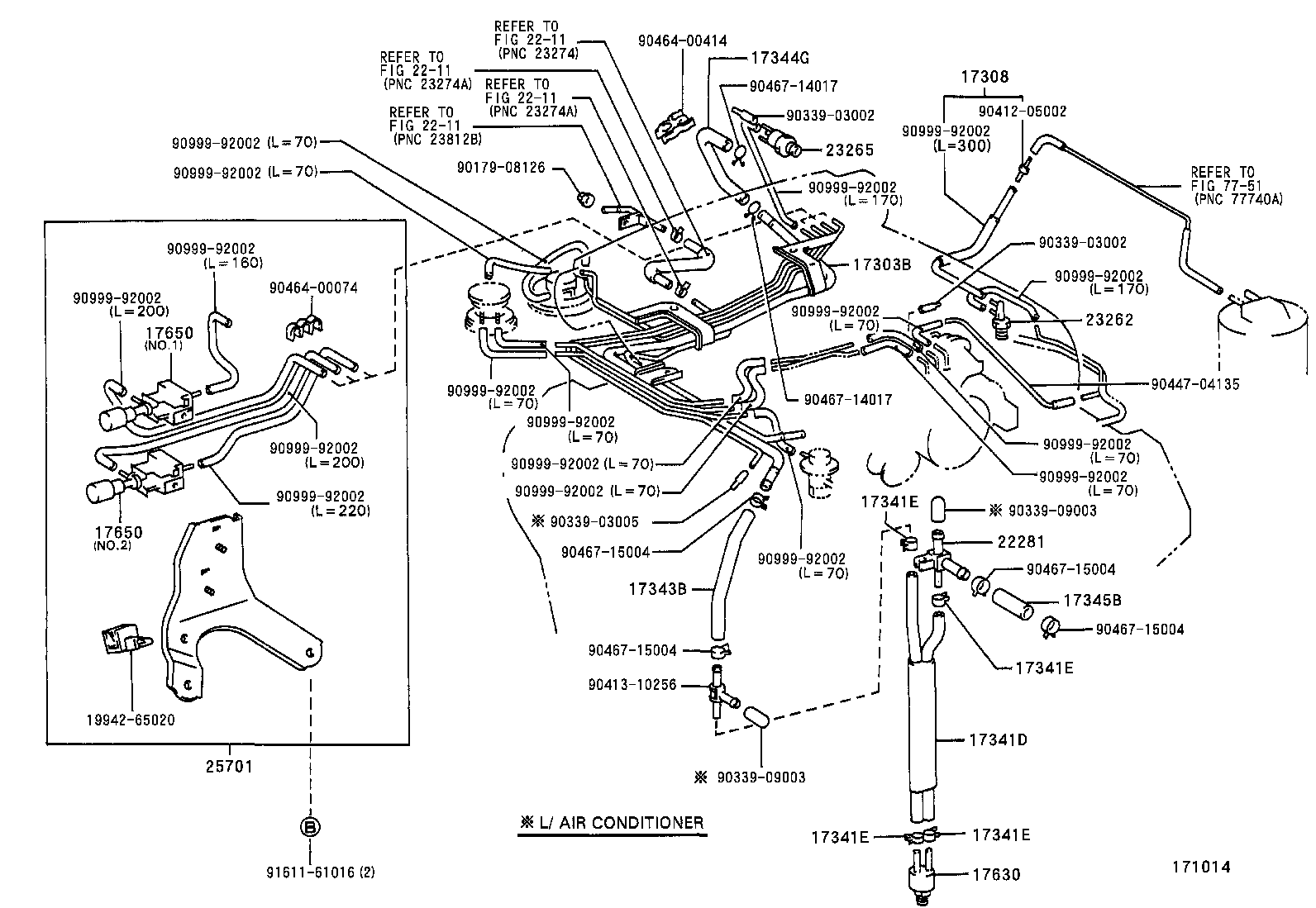

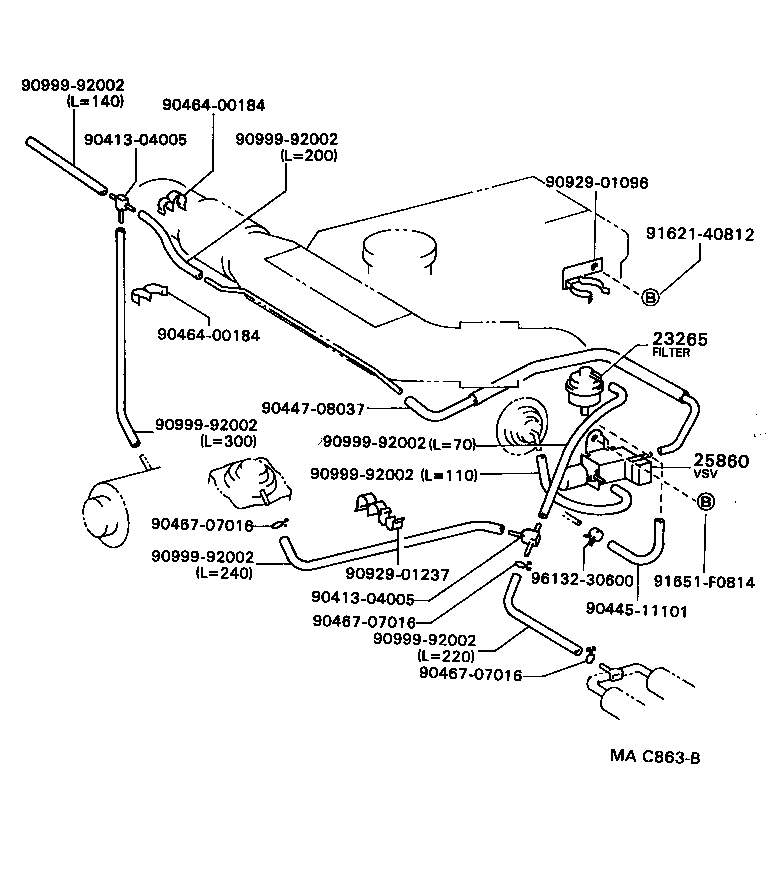

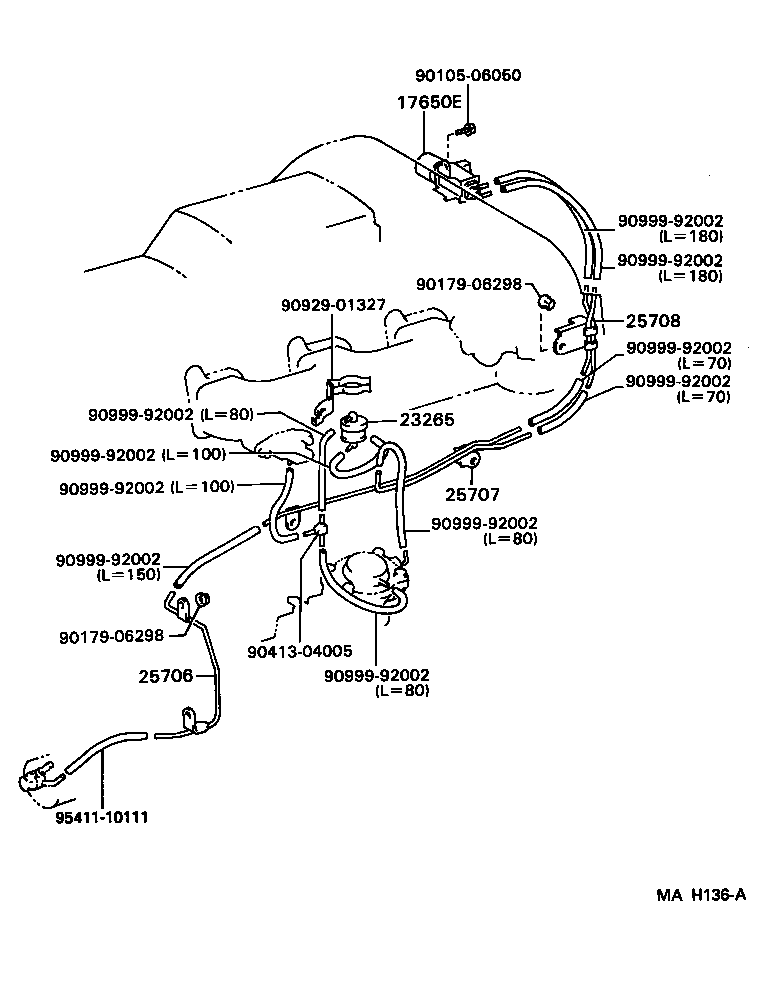

32 part groups · 10 illustrations
Part groups
| PNC | Description |
|---|---|
| 17032 | Bracket Sub-assy, Air Valve |
| 17303B | Pipe Sub-assy, Air, NO.1 |
| 17303E | Hose, NO.1(FOR AIR PIPE) |
| 17308 | Hose Sub-assy, Vacuum(FOR IDLE-UP) |
| 17341D | Hose, NO.1(FOR IDLE-UP) |
| 17341E | Clip, NO.1(FOR IDLE-UP HOSE) |
| 17342B | Hose, NO.2(FOR IDLE-UP) |
| 17342C | Clip, NO.2(FOR IDLE-UP HOSE) |
| 17343B | Hose, NO.3(FOR IDLE-UP) |
| 17344G | Hose, Air, NO.4 |
| 17345B | Hose, NO.5(FOR IDLE-UP) |
| 17360 | Tube Assy, Air |
| 17630 | Valve Assy, Air Control |
| 17650 | Valve Assy, Vacuum Switching |
| 17650D | Bracket, Vacuum Switching Valve |
| 17650E | Valve, Vacuum Switching |
| 21381 | Bimetal, Thermostatic |
| 22281 | Way, Air Delivery |
| 23262 | Valve, Bimetal Vacuum Switching, NO.1 |
| 23263 | Valve, Bimetal Vacuum Switching, NO.2 |
| 23265 | Filter, Gas, NO.1 |
| 23269 | Union(FOR GAS FILTER) |
| 23275 | Valve, Vacuum Control, NO.1 |
| 23281 | Valve, Vacuum Transmitting, NO.1 |
| 23285A | Valve, Check, NO.1 |
| 23818 | Pipe, Fuel Vapor Feed |
| 25701 | Valve Set, Emission Control |
| 25706 | Pipe Sub-assy, Vacuum Transmitting, NO.1 |
| 25707 | Pipe Sub-assy, Vacuum Transmitting, NO.2 |
| 25708 | Pipe Sub-assy, Vacuum Transmitting, NO.3 |
| 25810 | Valve Assy, Bimetal |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
