Toyota Hilux (JPP)

1988-08 → 1997-08 · chassis RN1##,YN85,90,1##,LN85,90,1##,VZN130,KZN130 · catalogue 671550 · Europe

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

29 part groups · 11 illustrations

Illustrations

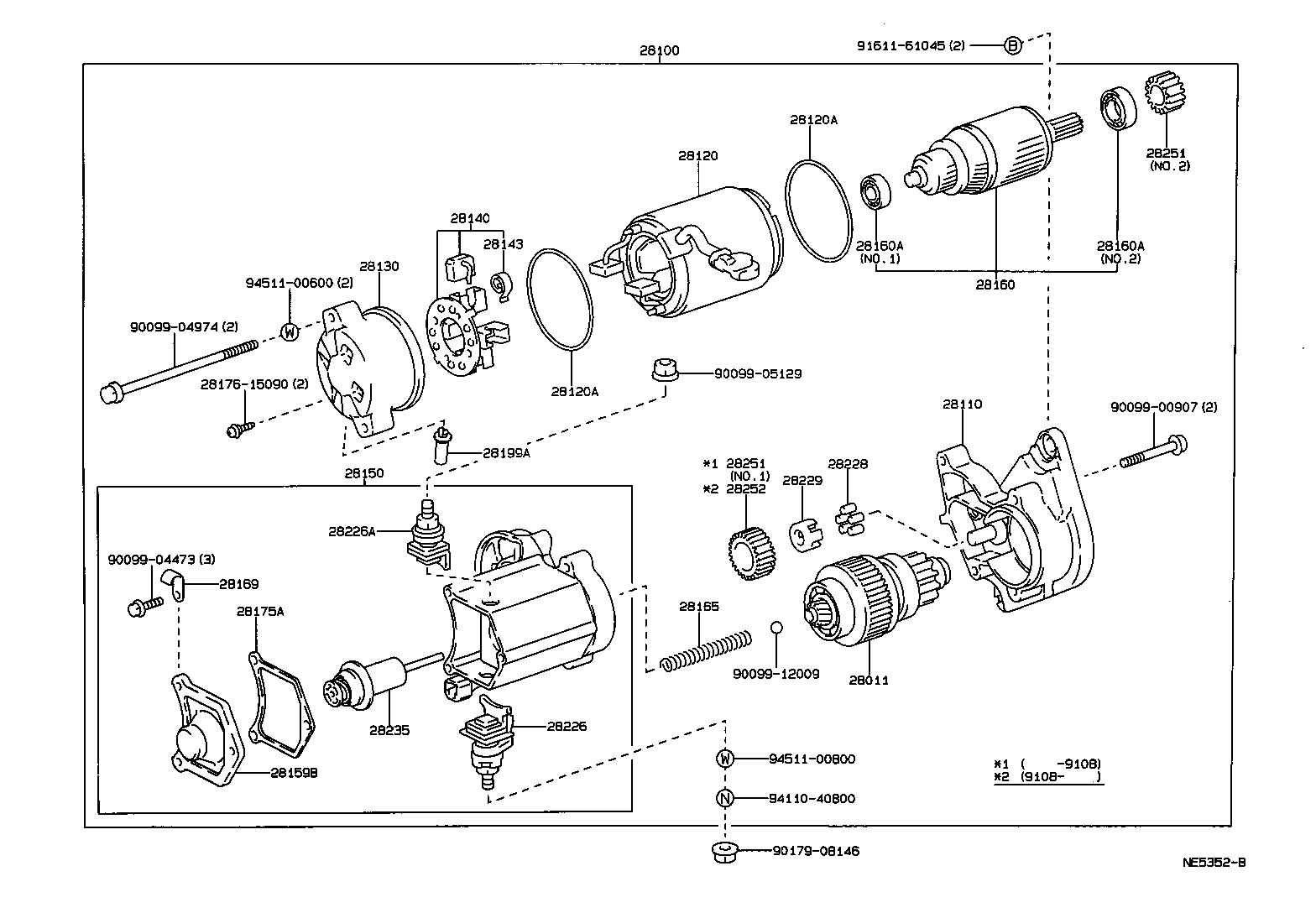

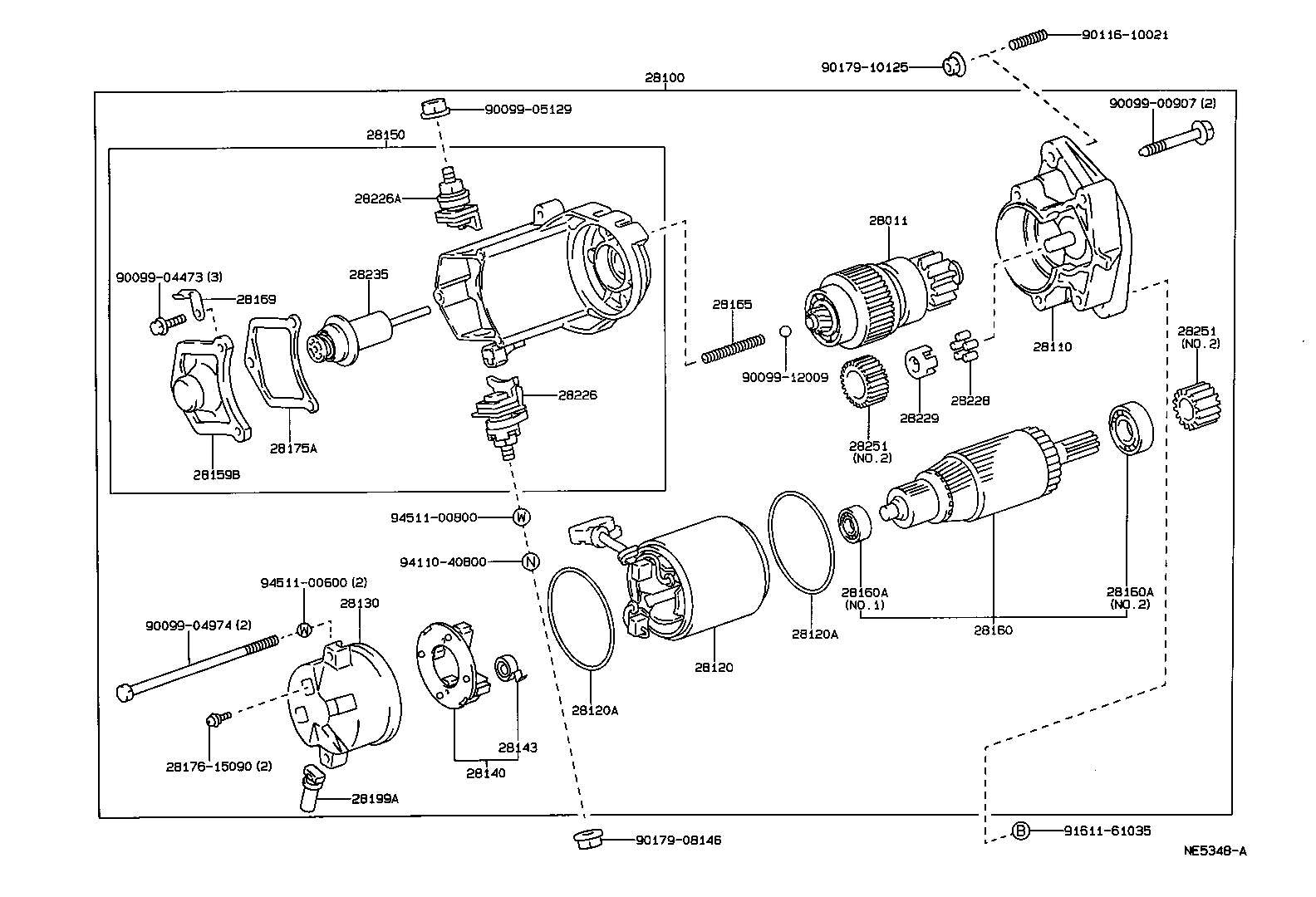

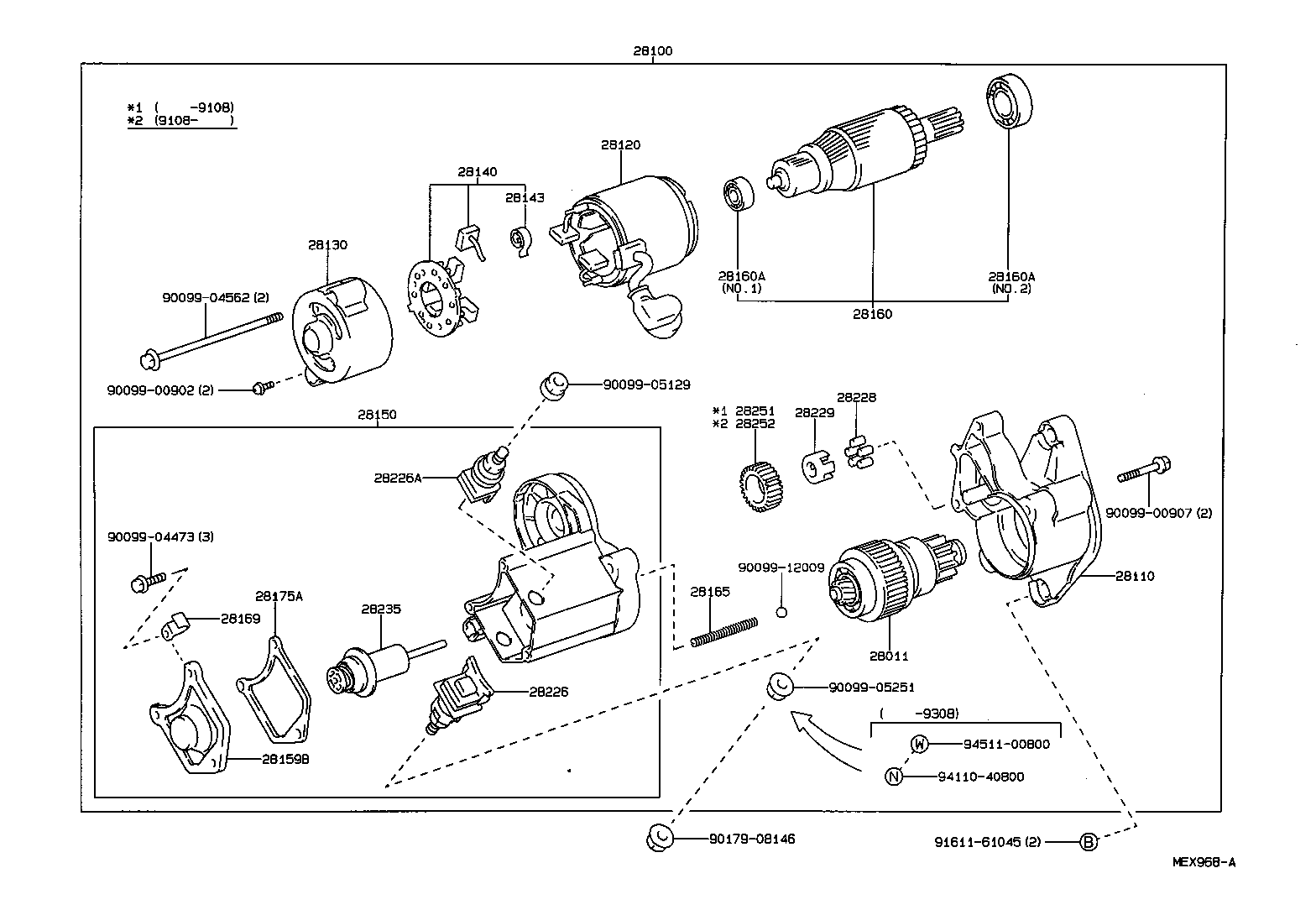

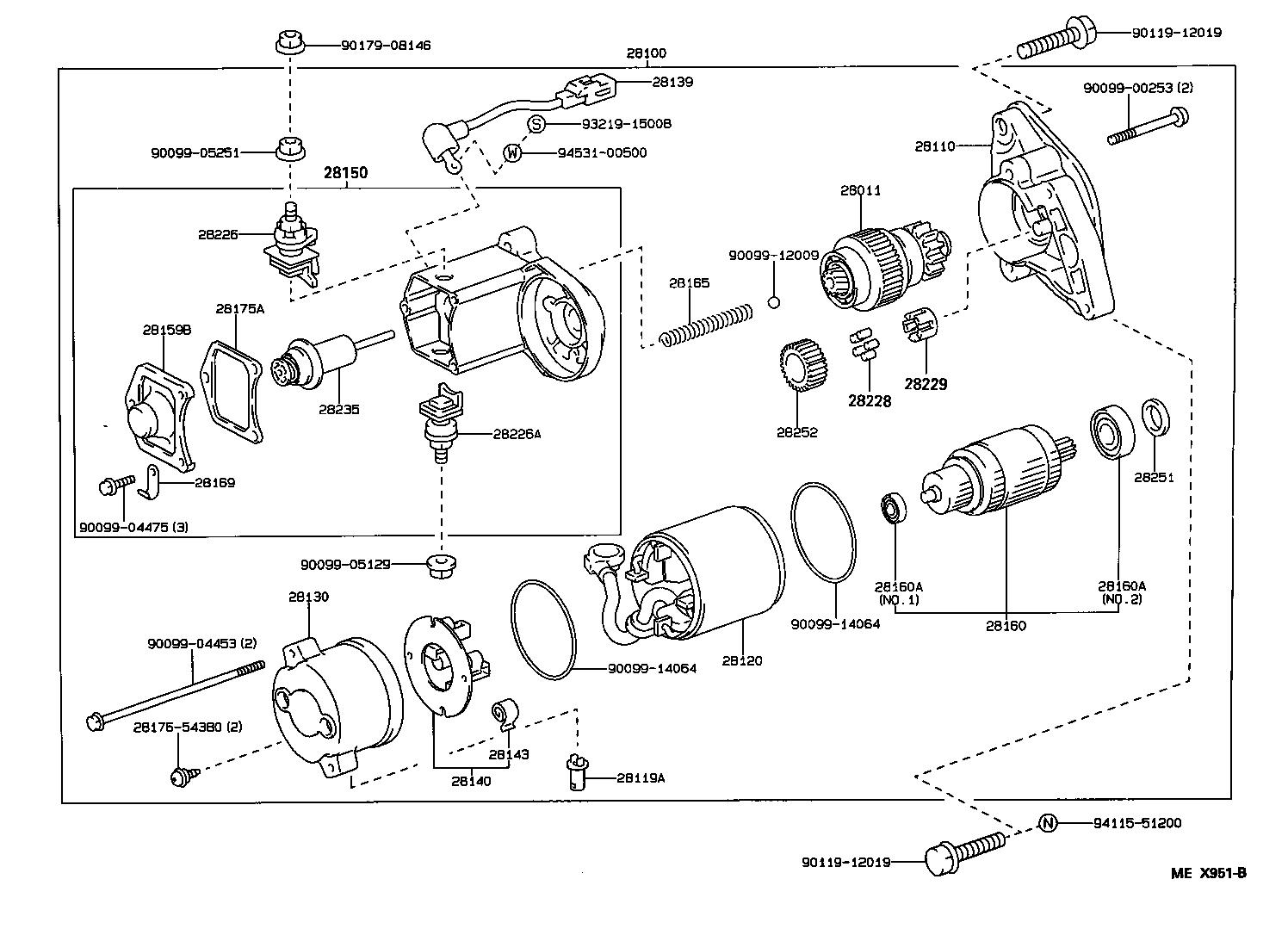

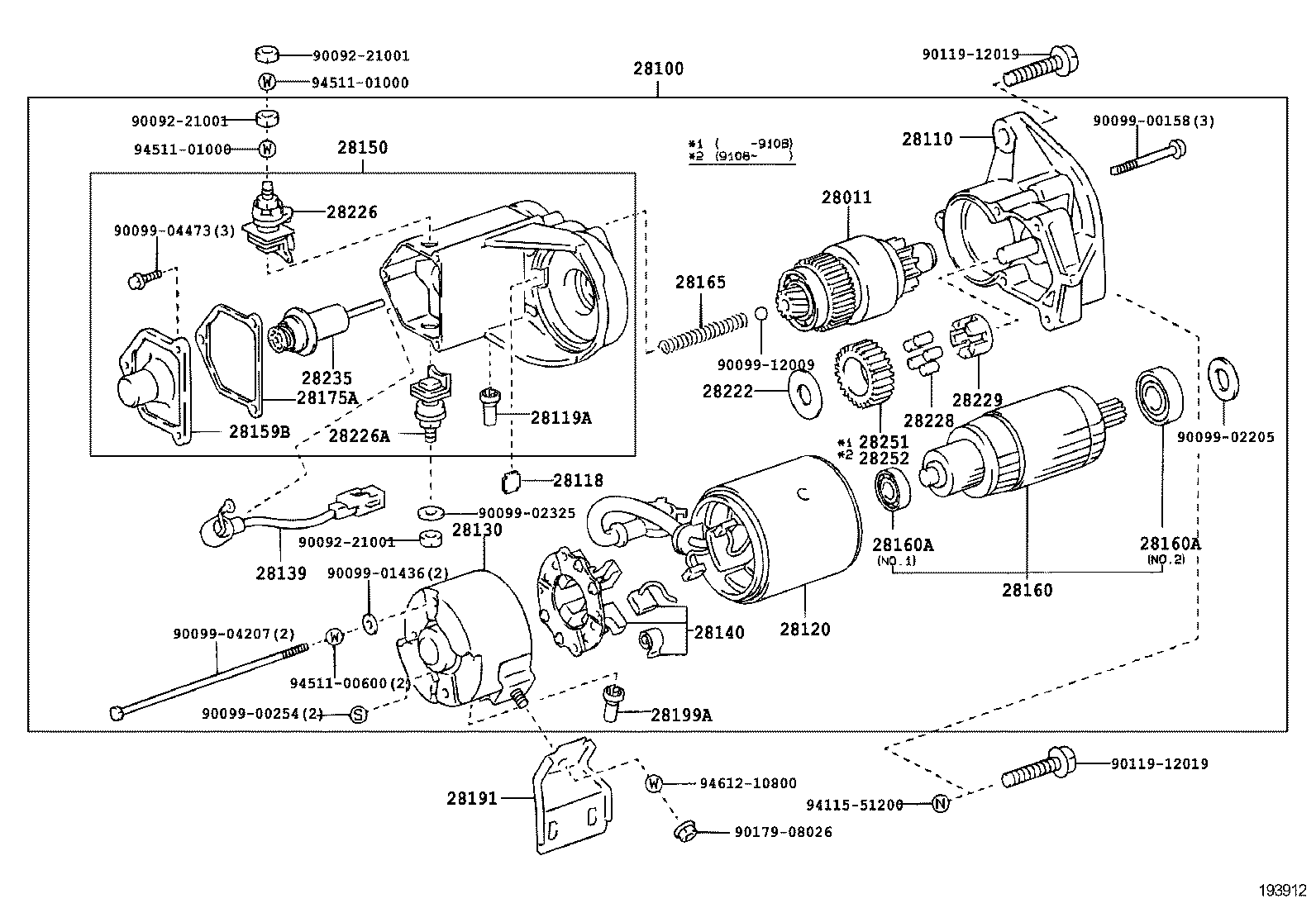

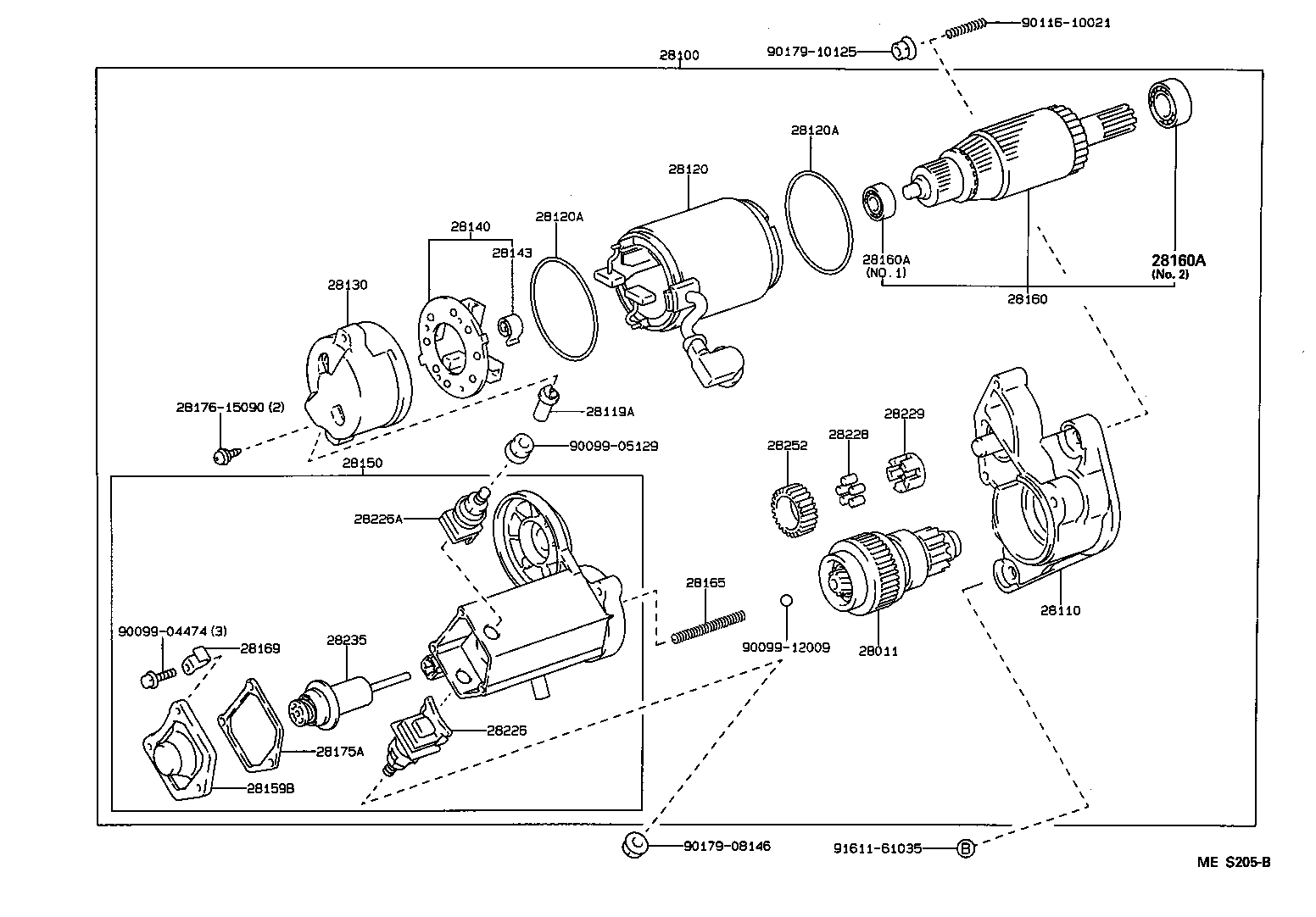

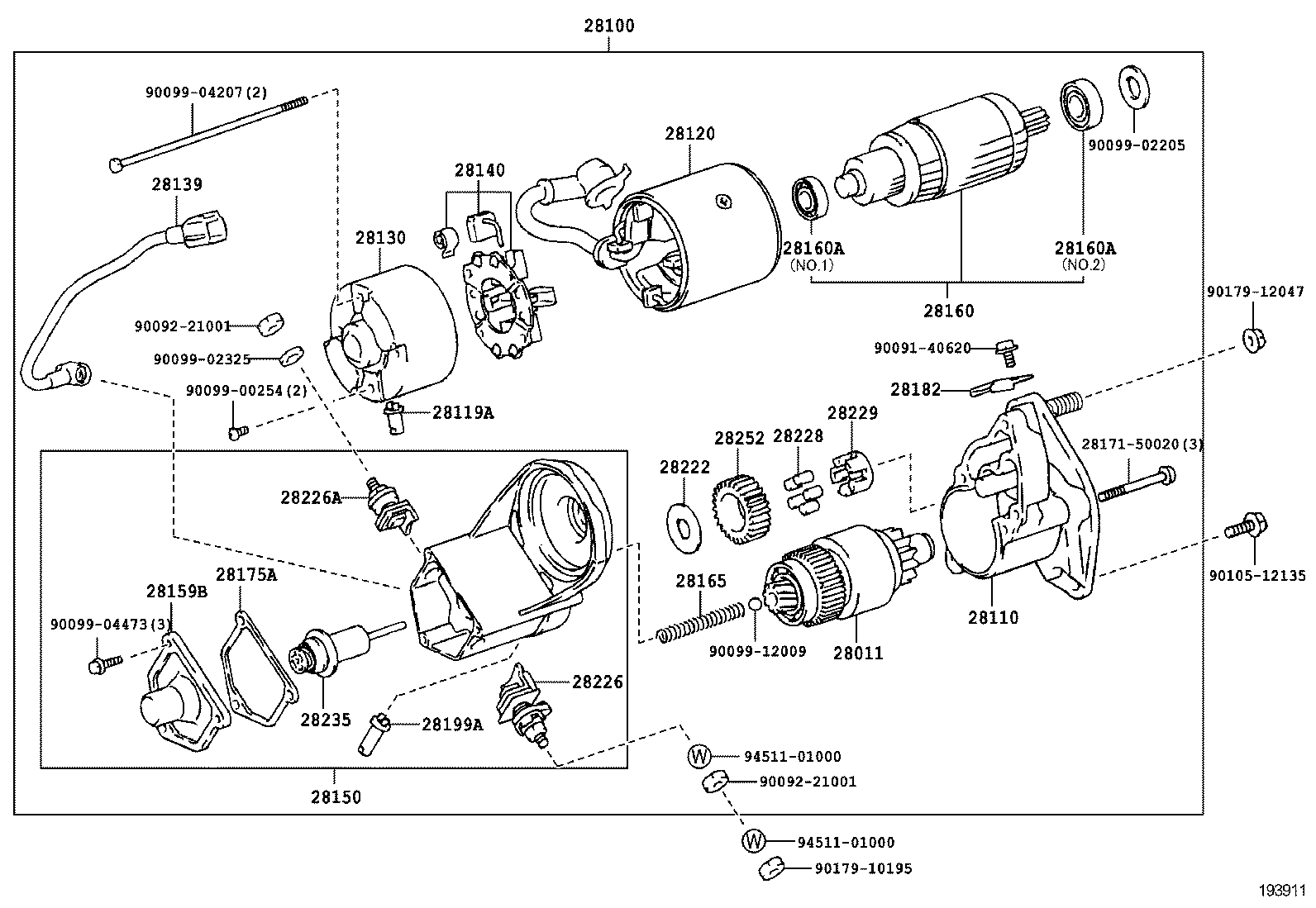

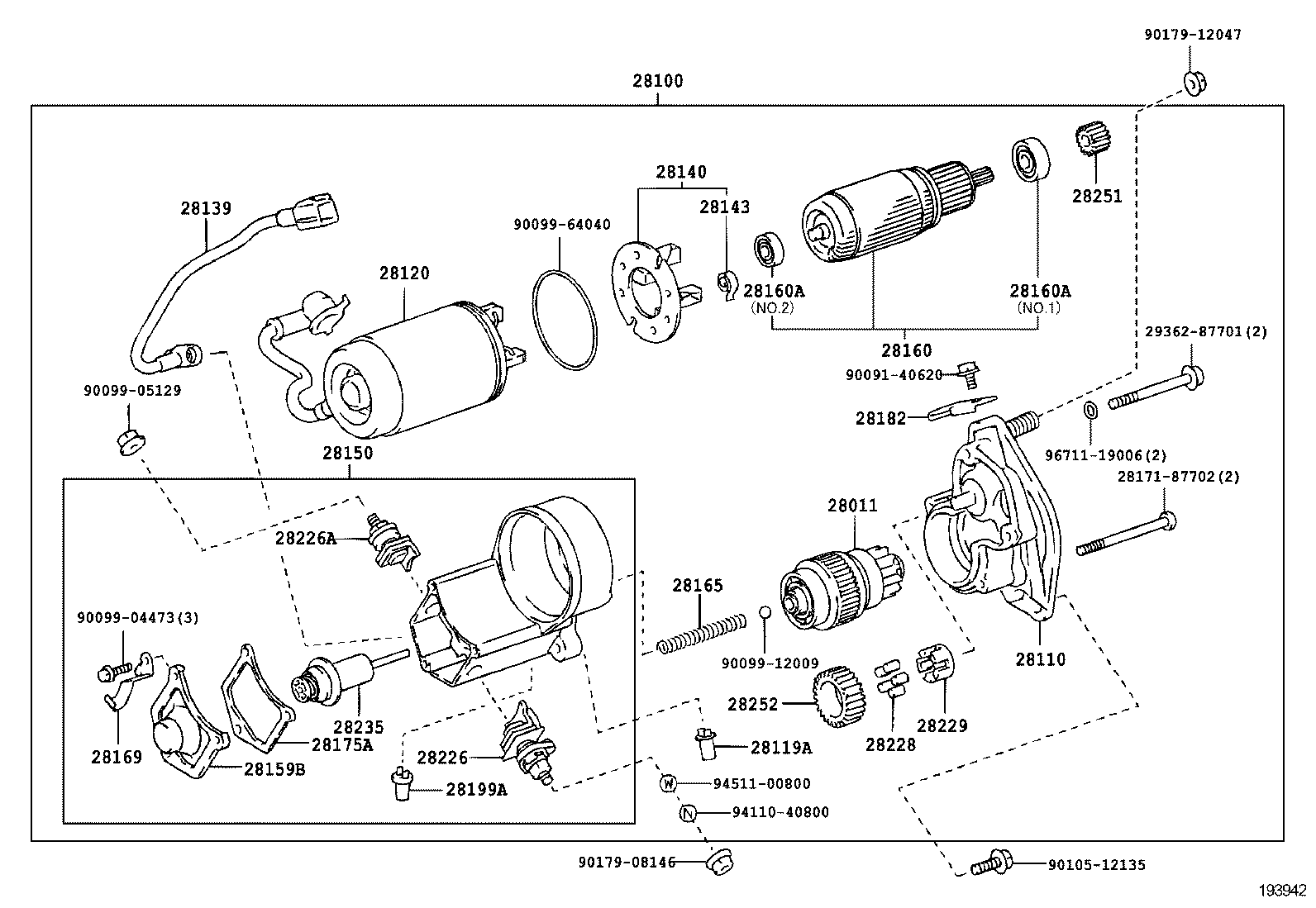

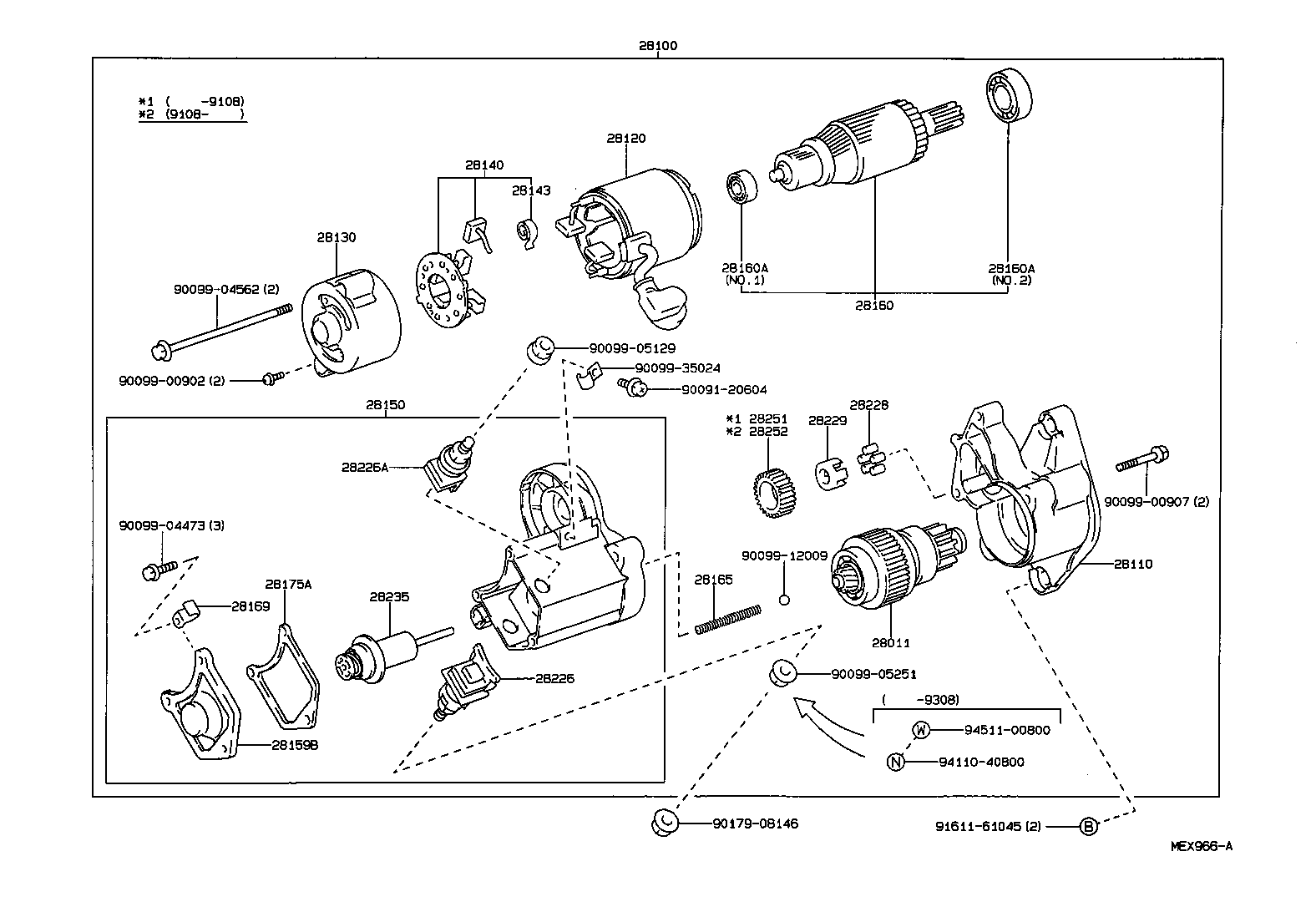

Figure NE5345B NE5345B 1988-08 → 1993-08 Figure MEX951B MEX951B 1993-08 → — Figure 193912 193912 1988-08 → — Figure MEX967A MEX967A 1988-08 → — Figure NE5348A NE5348A 1988-08 → 1991-08 Figure MES205B MES205B 1991-08 → — Figure MEX968A MEX968A 1989-08 → — Figure NE5352B NE5352B 1989-08 → — Figure MEX966A MEX966A 1988-08 → 1994-08 Figure 193942 193942 1993-08 → — Figure 193911 193911 1993-08 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28100 Starter Assy
28110 Housing Assy, Starter Drive
28118 Plate(FOR STARTER YOKE)
28119A Cover, Starter End Frame
28120 Yoke Assy, Starter
28120A Ring, O(FOR STARTER YOKE)
28130 Frame Assy, Starter Commutator End
28139 Wire, Lead, NO.1(FOR STARTER)
28140 Holder Assy, Starter Brush
28143 Spring, Starter Brush
28150 Switch Assy, Magnet Starter
28159B Cover, Magnet Switch
28160 Armature Assy, Starter
28160A Bearing, Starter Armature
28165 Spring, Starter Magnet Switch Return
28169 Clamp, Starter Motor Lead Wire
28175A Gasket, Magnet Switch Cover
28182 Stay, Starter Commutator End Frame
28191 Stay, Starter
28199A Protector, Dust Starter
28222 Washer, Starter Idle Gear Clutch
28226 Starter Kit, Battery Terminal
28226A Starter Kit, Motor Terminal
28228 Roller, Starter Idle Gear Clutch
28229 Retainer, Starter Idle Gear
28235 Plunger, Magnet Switch
28251 Pinion, Starter Drive
28252 Gear, Starter Idle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
