Toyota Hilux (JPP)
1988-08 → 1997-08 · chassis RN1##,YN85,90,1##,LN85,90,1##,VZN130,KZN130 · catalogue 671550 · Europe
Discontinued model
Data version 1998-04

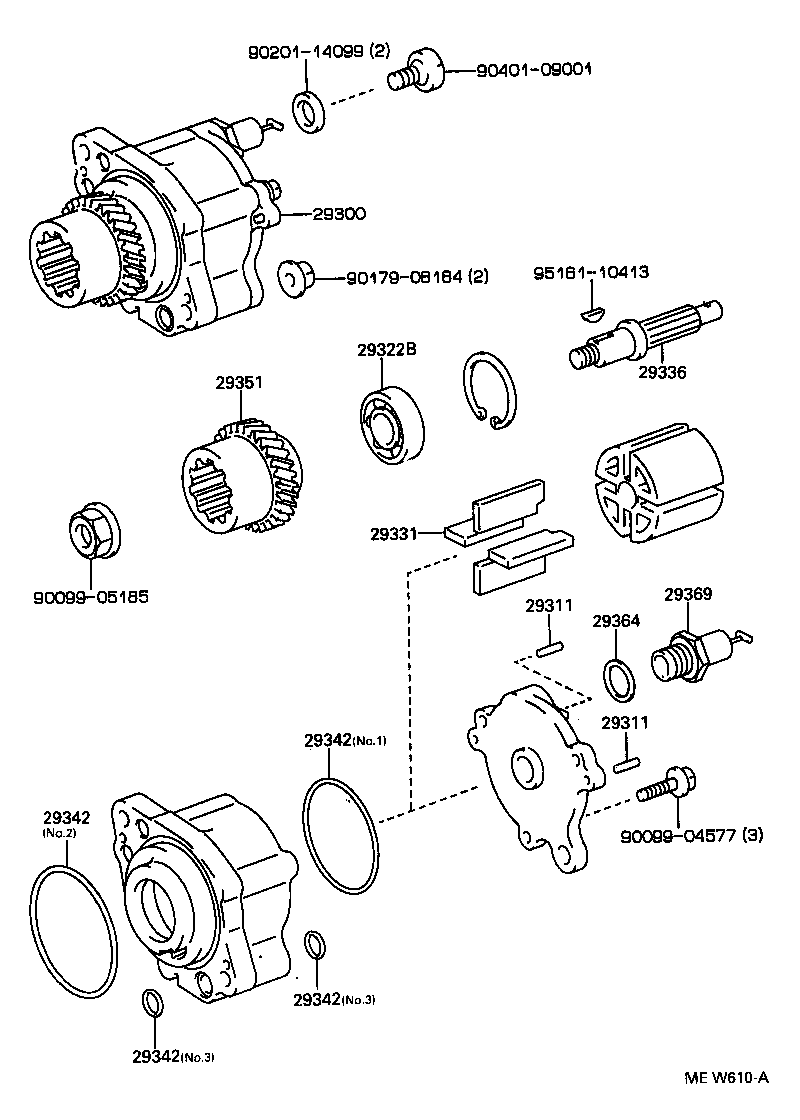

Vacuum Pump
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 29300 | Pump Assy, Vacuum |
| 29300A | Hose, Vacuum Pump Oil Inlet |
| 29300B | Hose, Vacuum Pump Oil Outlet |
| 29311 | Pin, Vacuum Pump Dowel, NO.1 |
| 29322B | Bearing, Vacuum Pump |
| 29331 | Blade, Vacuum Pump, A |
| 29336 | Shaft, Vacuum Pump |
| 29342 | Packing, Vacuum Pump |
| 29351 | Gear, Vacuum Pump |
| 29364 | Washer, Vacuum Pump |
| 29369 | Valve Sub-assy, Check |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
