Toyota Hilux (JPP)

1988-08 → 1997-08 · chassis RN1##,YN85,90,1##,LN85,90,1##,VZN130,KZN130 · catalogue 671550 · Europe

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Pump Assembly

10 part groups · 4 illustrations

Illustrations

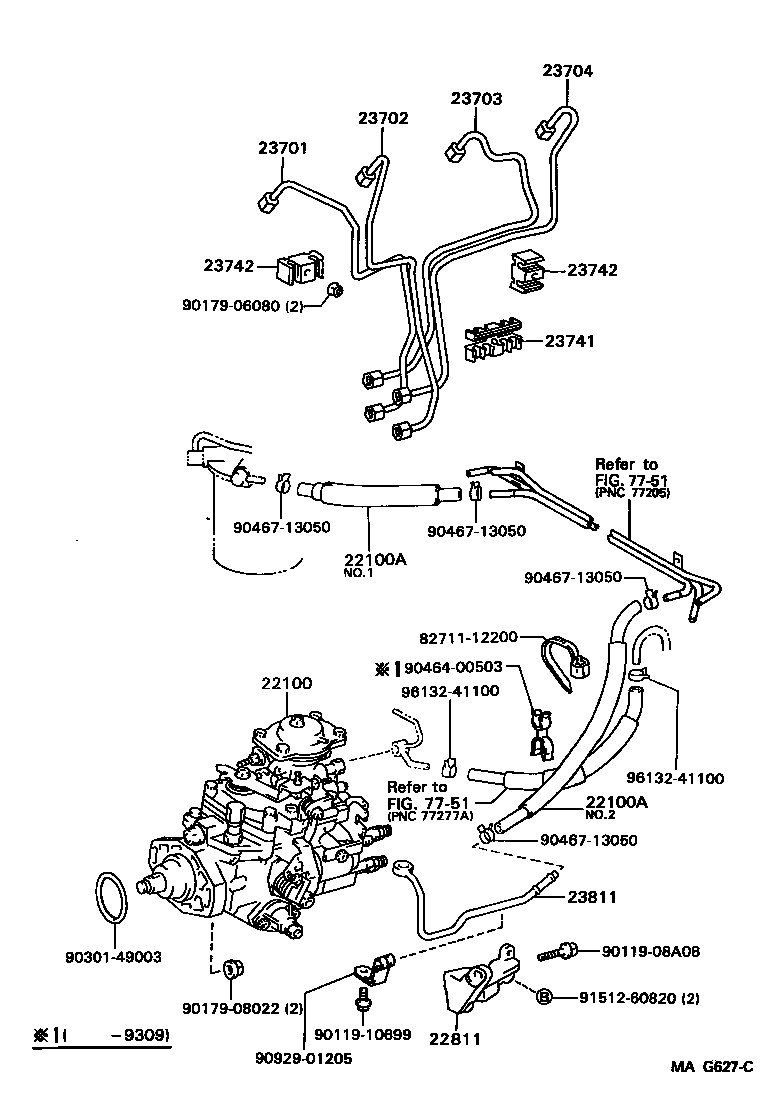

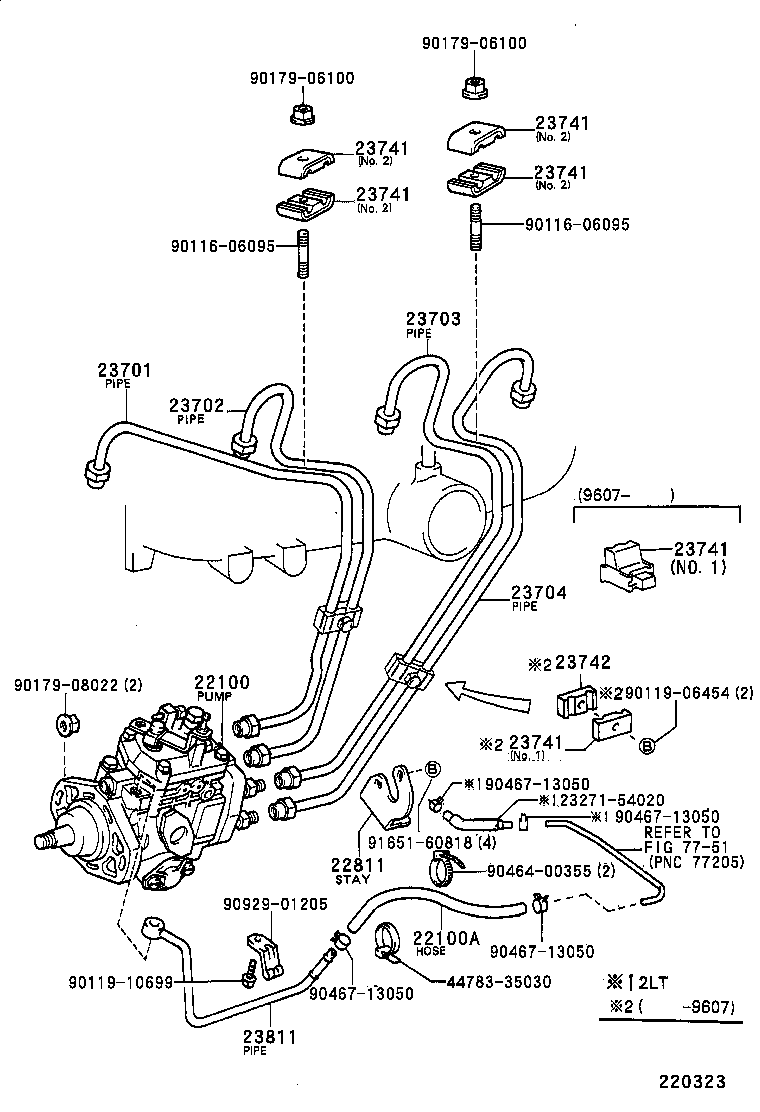

Figure MAG626A MAG626A 1993-08 → 1995-11 Figure MAG627C MAG627C 1993-08 → 1995-11 Figure 220323 220323 1988-08 → — Figure 220323 220323 1990-01 → 1995-11

Part groups

PNCDescription
22100 Pump Assy, Injection OR Supply
22100A Hose OR Pipe, Fuel(FOR INJECTION PUMP TO FUEL FILTER)
22811 Stay, Injection Pump, NO.1
23701 Pipe Sub-assy, Injection, NO.1
23702 Pipe Sub-assy, Injection, NO.2
23703 Pipe Sub-assy, Injection, NO.3
23704 Pipe Sub-assy, Injection, NO.4
23741 Clamp, Injection Pipe, NO.1
23742 Clamp, Injection Pipe, NO.2
23811 Pipe, Fuel(FOR FUEL FILTER TO INJECTION PUMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
