Factory parts data · Europe

Toyota Hilux (JPP)

1988-08 → 1997-08 · chassis RN1##,YN85,90,1##,LN85,90,1##,VZN130,KZN130 · catalogue 671550 · Europe

Discontinued model Data version 1998-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Disc Wheel & Wheel Cap

10 part groups · 5 illustrations

Illustrations

Figure MCN739A

MCN739A 1988-08 → —

Figure MCN741A

MCN741A 1988-08 → —

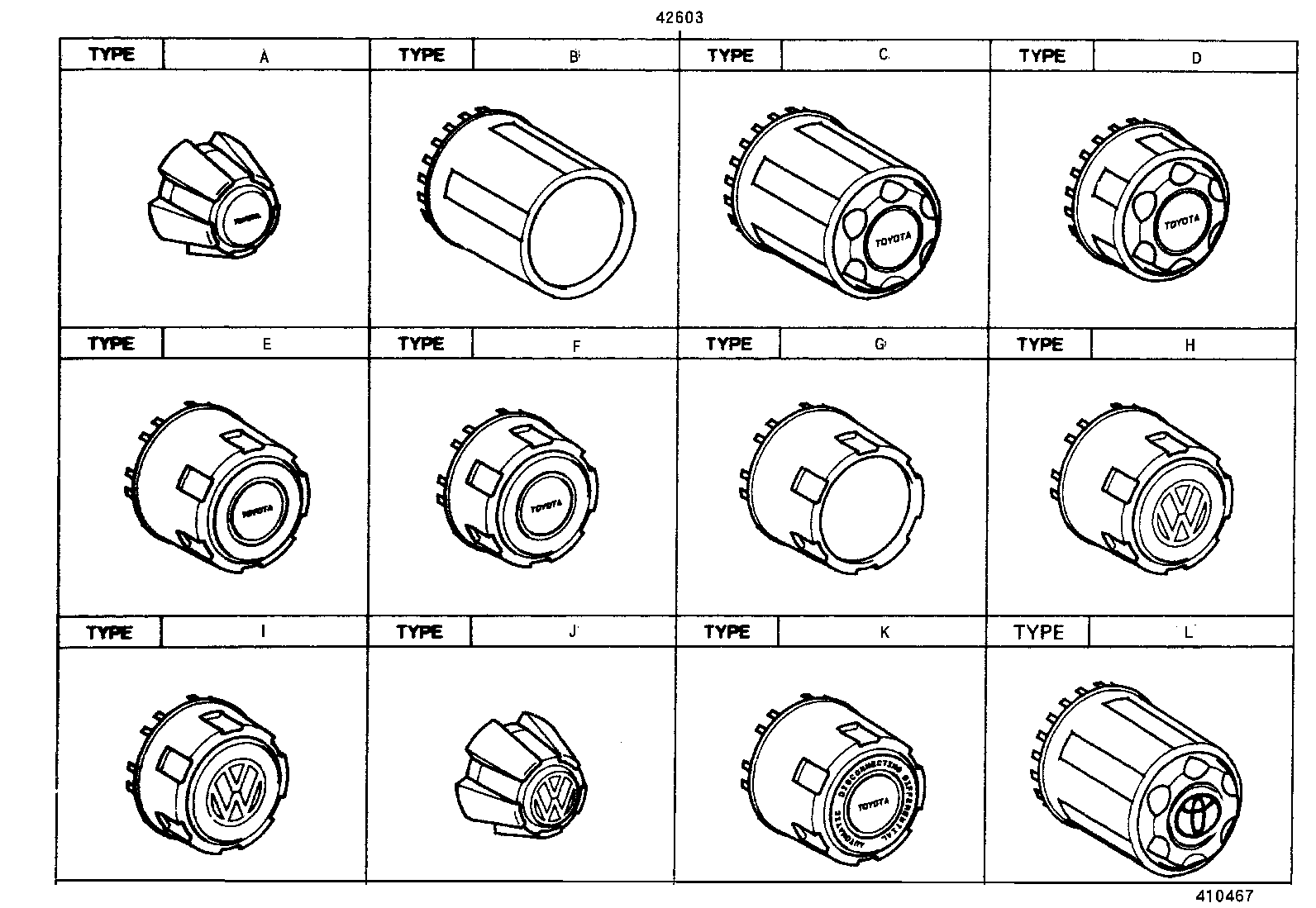

410467 1988-08 → —

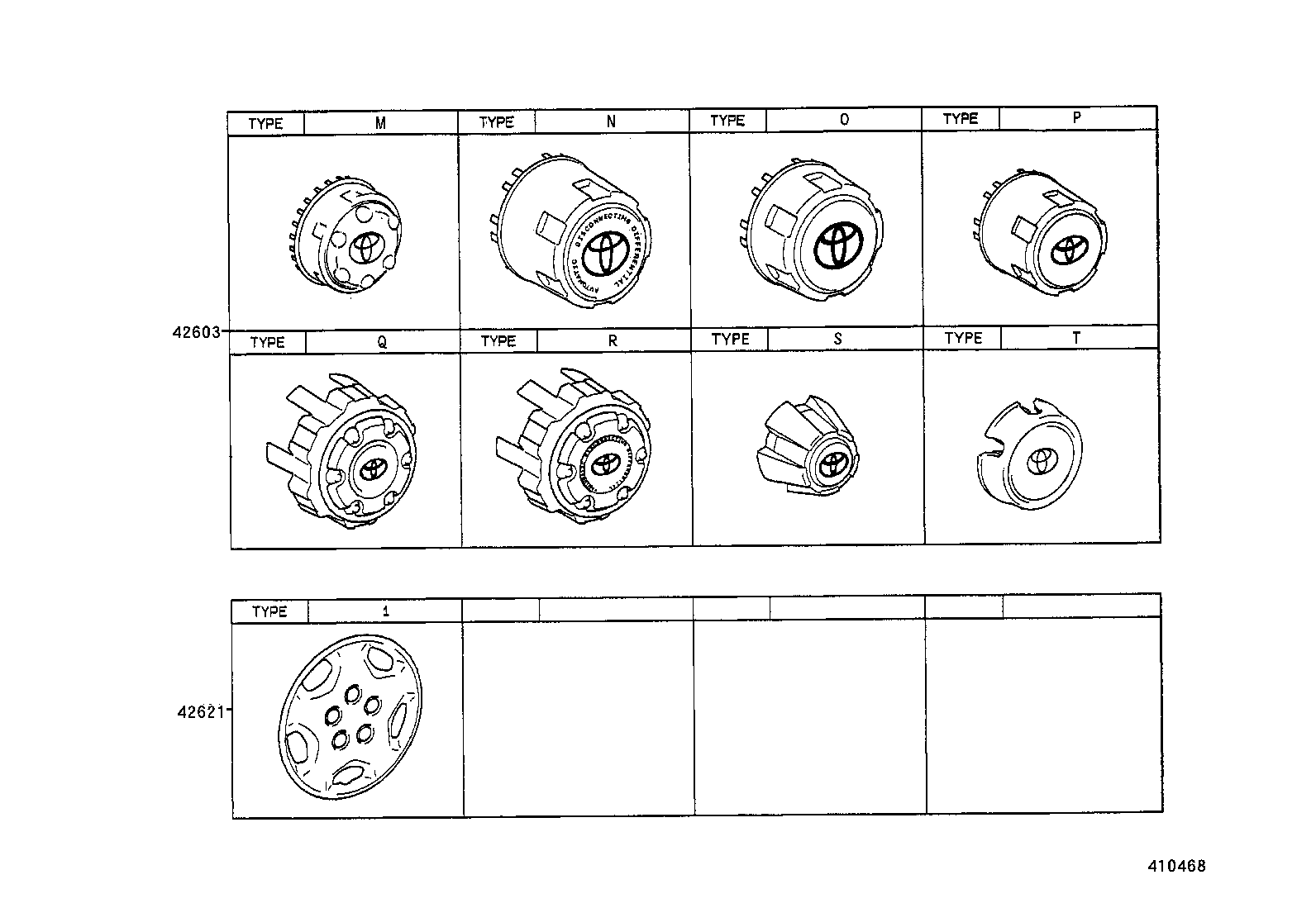

410468 1991-08 → —

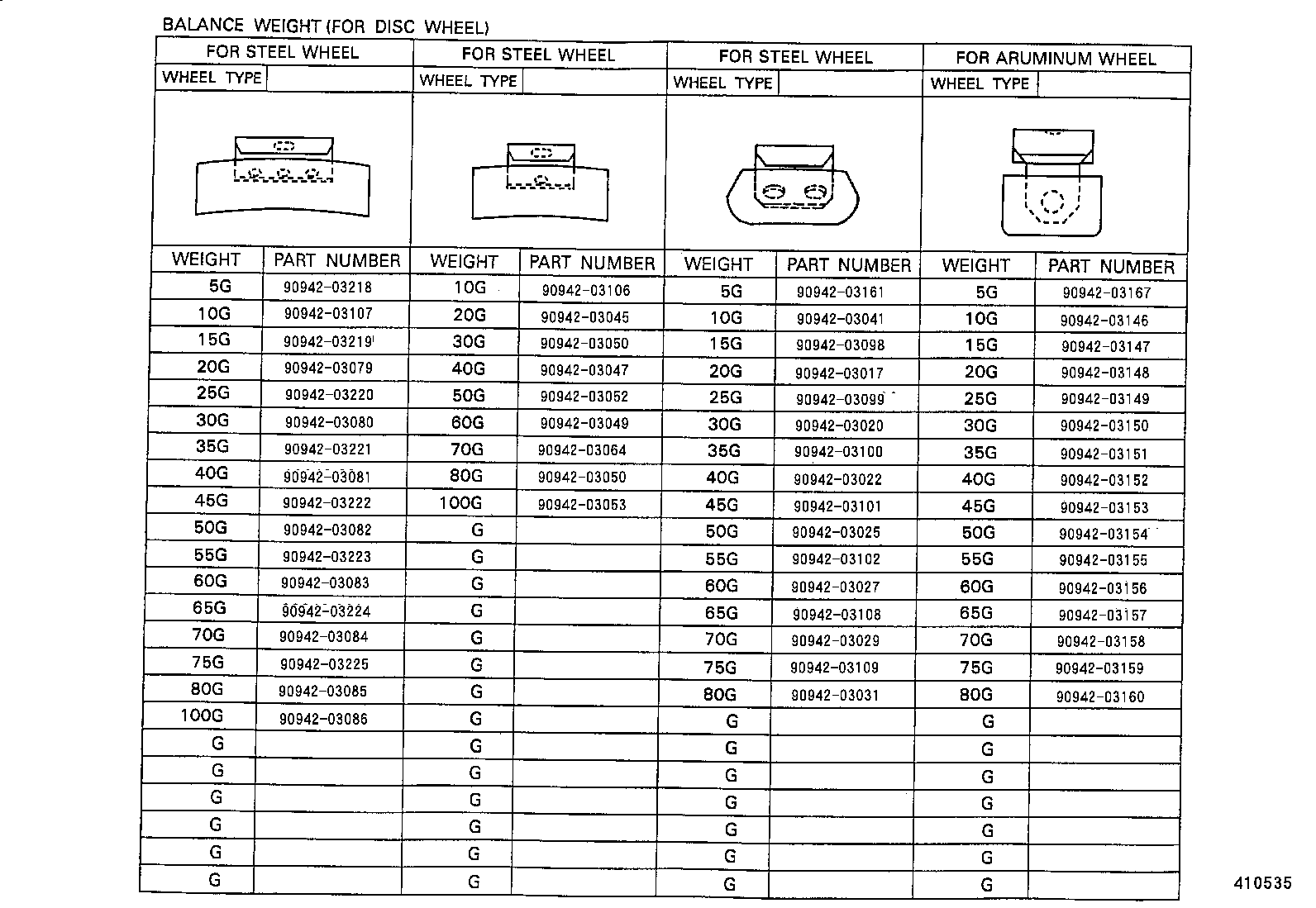

410535 1988-08 → —

Part groups

PNC	Description
42601A	Wheel, Disc (FOR SPARE)
42601C	Nut, Hub (FOR AXLE)
42601F	Wheel, Disc (FOR FRONT)
42601R	Wheel, Disc (FOR REAR)
42603	Ornament Sub-assy, Wheel Hub
42611G	Valve (FOR TUBELESS TIRE)
42613A	Ring, Disc Wheel Side
42621	Cap, Wheel
42652	Tire
42652A	Tire (FOR SPARE)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
