Toyota Hilux (JPP)
1988-08 → 1997-08 · chassis RN1##,YN85,90,1##,LN85,90,1##,VZN130,KZN130 · catalogue 671550 · Europe
Discontinued model
Data version 1998-04

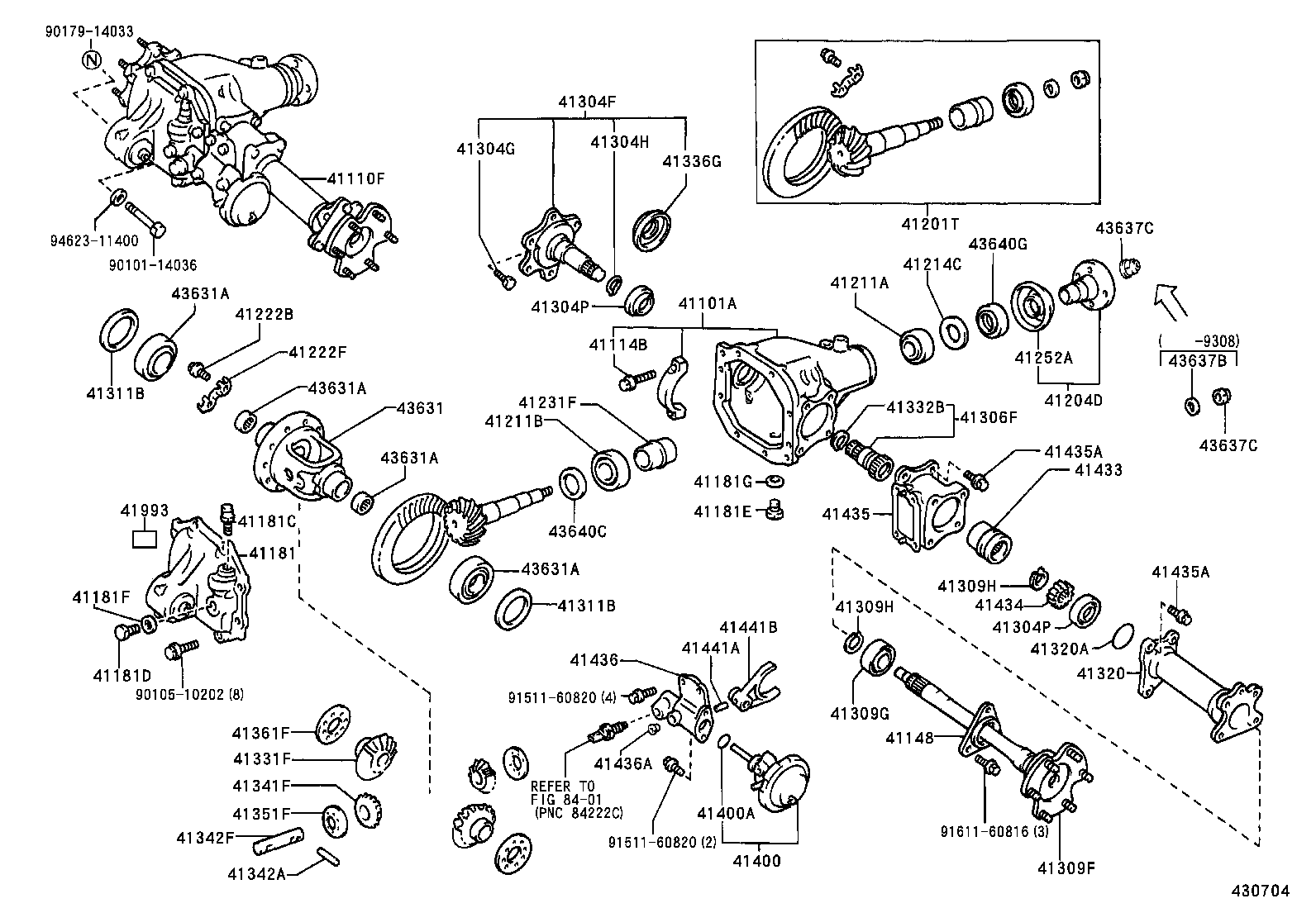

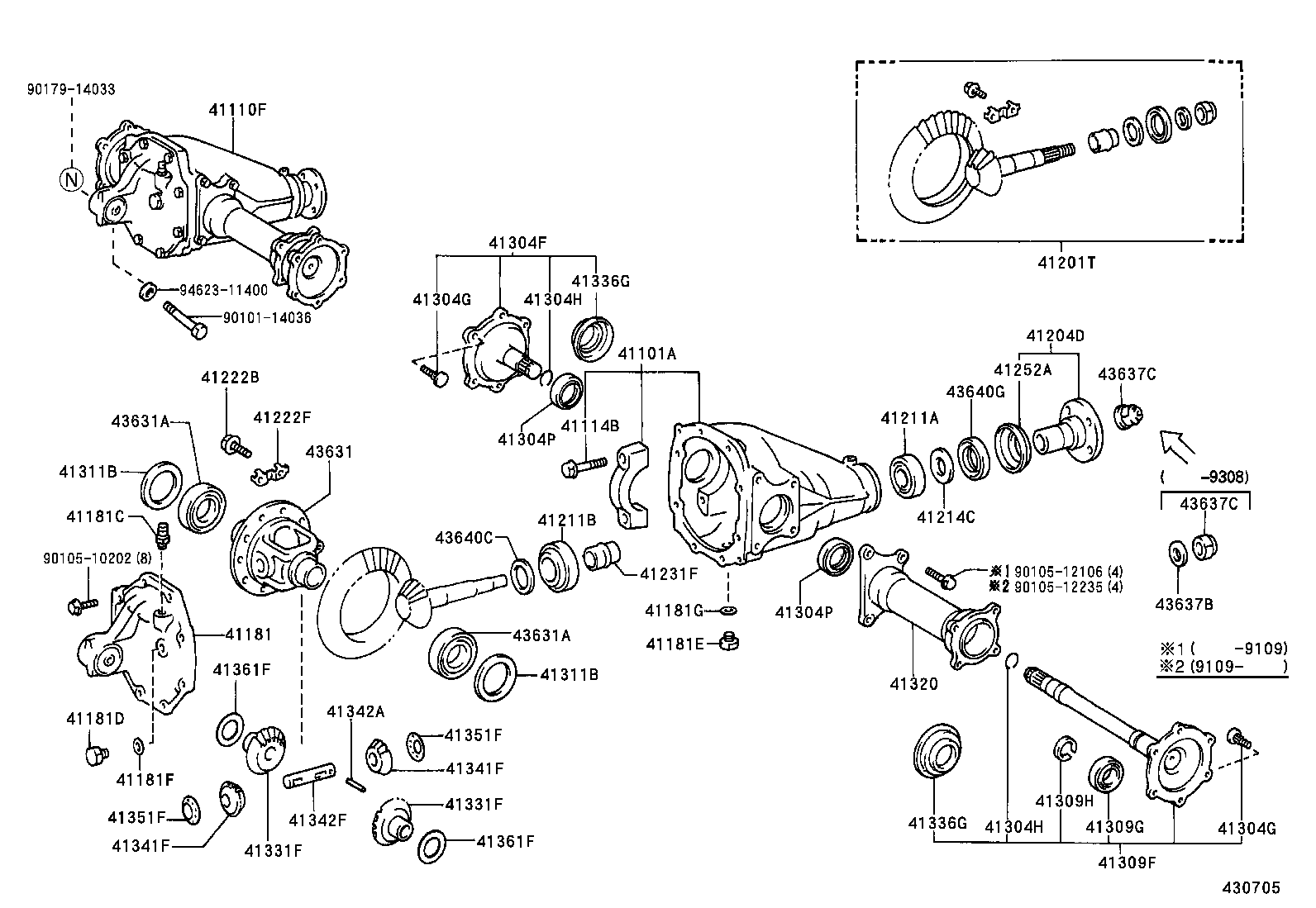

Front Axle Housing & Differential
81 part groups · 11 illustrations
Part groups
| PNC | Description |
|---|---|
| 41101A | Carrier Sub-assy, Differential, Front |
| 41110F | Carrier Assy, Differential, Front |
| 41114B | Bolt, Front Differential Bearing Cap |
| 41148 | Retainer, Differential Bearing |
| 41181 | Cover, Front Differential Carrier |
| 41181C | Plug, Breather (FOR FRONT DIFFERENTIAL CARRIER COVER) |
| 41181D | Plug (FOR FRONT DIFFERENTIAL FILLER) |
| 41181E | Plug (FOR FRONT DIFFERENTIAL DRAIN) |
| 41181F | Gasket (FOR FRONT DIFFERENTIAL FILLER PLUG) |
| 41181G | Gasket (FOR FRONT DIFFERENTIAL DRAIN PLUG) |
| 41201T | Final Gear Kit, Differential, Front |
| 41204D | Flange Sub-assy, Front Drive Pinion Companion, Front |
| 41211A | Bearing, Tapered Roller (FOR FRONT DRIVE PINION FRONT) |
| 41211B | Bearing, Tapered Roller (FOR FRONT DRIVE PINION REAR) |
| 41214C | Slinger, Front Differential Drive Pinion Oil |
| 41222B | Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET) |
| 41222F | Plate, Fornt Differential Ring Gear Set Bolt Lock |
| 41231F | Spacer, Front Differential Drive Pinion Bearing |
| 41252A | Deflector, Dust (FOR FRONT DIFFERENTIAL) |
| 41304F | Shaft Sub-assy, Differential Side Gear, RH |
| 41304G | Bolt, Serration (FOR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41304H | Ring, Hole Snap (FOR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41304P | Seal, Oil (FOR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41306F | Shaft Sub-assy, Differential Side Gear Inter |
| 41309F | Shaft Sub-assy, Differential Side Gear, LH |
| 41309G | Bearing (FOR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41309H | Ring, Shaft Snap (FOR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41311B | Washer, Plate (FOR FRONT DIFFERENTIAL CASE) |
| 41315A | Nut, Front Differential Bearing Adjusting |
| 41320 | Tube Assy, Front Differential |
| 41320A | Ring, O (FOR FRONT DIFFERENTIAL TUBE) |
| 41331F | Gear, Front Differential Side |
| 41332B | Ring, Hole Snap (FOR DIFF SIDE GEAR INTERMEDDIATE SHAFT) |
| 41336G | Cover, Dust(FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT) |
| 41341F | Pinion, Front Differential |
| 41342A | Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT) |
| 41342F | Shaft, Front Differential Pinion, NO.1 |
| 41343B | Pin, Front Differential Pinion Shaft |
| 41351F | Washer, Front Differential Pinion Thrust |
| 41361C | Lock, Front Differential Bearing Adjusting Nut |
| 41361F | Washer, Front Differential Side Gear Thrust, NO.1 |
| 41400 | Actuator Assy, Differential Vacuum |
| 41400A | Ring, O (FOR DIFFERENTIAL VACUUM ACTUATOR) |
| 41433 | Sleeve, Differential Clutch |
| 41434 | Hub, Differential Clutch |
| 41435 | Case, Differential Clutch |
| 41435A | Bolt (FOR DIFFERENTIAL CLUTCH CASE SETTING) |
| 41436 | Cover, Front Differential Clutch Case |
| 41436A | Plug (FOR FRONT DIFFERENTIAL CLUTCH CASE) |
| 41441A | Pin, Slotted Spring (FOR DIFFERENTIAL SHIFT FORK) |
| 41441B | Fork, Differential Shift |

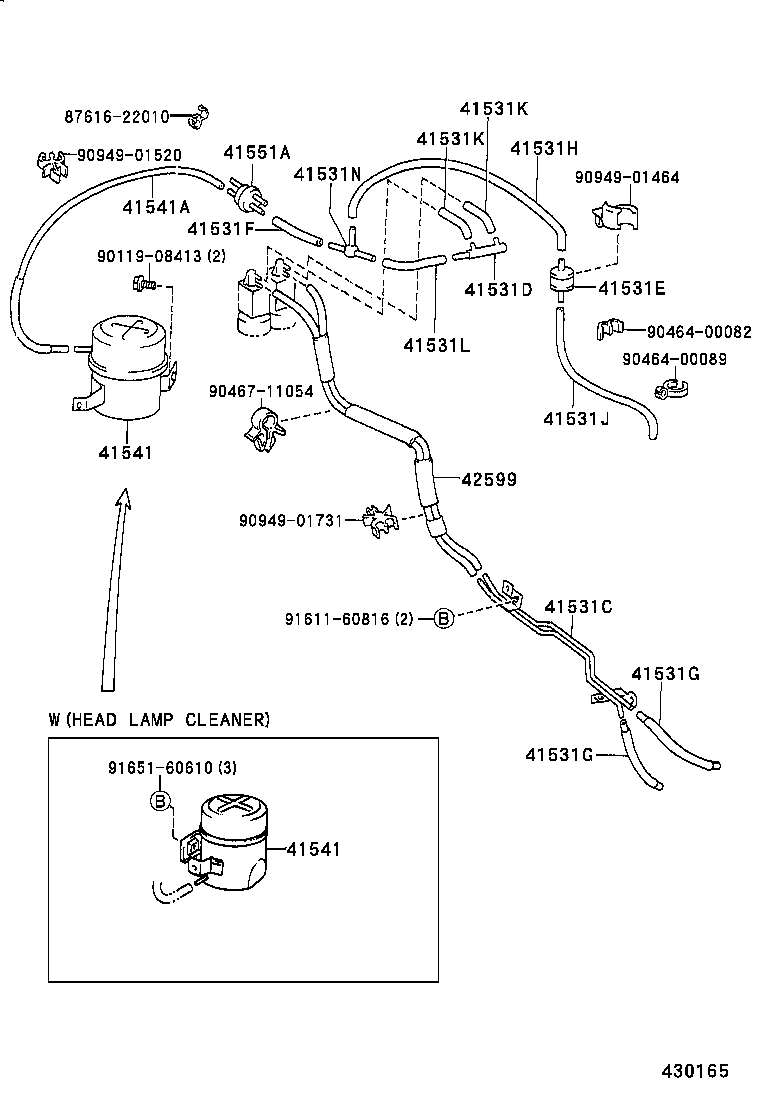

| 41531C | Tube, Front Differential Vacuum |
| 41531D | Way, NO.1(FOR FRONT DIFFERENTIAL VACUUM HOSE) |
| 41531E | Valve, Check(FOR FRONT DIFFERENTIAL VACUUM) |
| 41531F | Hose, Front Differential Vacuum, NO.1 |
| 41531G | Hose, Front Differential Vacuum, NO.2 |
| 41531H | Hose, Front Differential Vacuum, NO.3 |
| 41531J | Hose, Front Differential Vacuum, NO.4 |
| 41531K | Hose, Front Differential Vacuum, NO.5 |
| 41531L | Hose, Front Differential Vacuum, NO.6 |
| 41531N | Way, NO.2(FOR FRONT DIFFERENTIAL VACUUM HOSE) |
| 41541 | Tank, Differential Vacuum |
| 41541A | Hose (FOR DIFFRENTIAL VACUUM TANK) |
| 41551A | Grommet, Front Differential Vacuum |
| 41993 | Label, Differential Oil Information |
| 42599 | Hose, Vacuum Disconnecting Differential |
| 43110 | Housing Assy, Front Axle |
| 43110A | Plug Sub-assy, Drain |
| 43110B | Gasket, Drain |
| 43110C | Plug (FOR FRONT AXLE HOUSING) |
| 43110D | Gasket (FOR FRONT AXLE HOUSING PLUG) |
| 43110E | Plug, Breather (FOR FRONT AXLE HOUSING) |
| 43411D | Seal, Type T Oil (FOR FRONT DRIVE SHAFT) |
| 43600A | Bolt, Stud (FOR FRONT AXLE DIFFERENTIAL CARRIER SETTING) |
| 43611 | Gasket, Front Axle Differential Carrier |
| 43631 | Case, Front Axle Differential |
| 43631A | Bearing, Front Axle Differential |
| 43637B | Washer, Plate (FOR FRONT AXLE DRIVE PINION) |
| 43637C | Nut, Castle (FOR FRONT AXLE DRIVE PINION) |
| 43640C | Spacer OR Washer, Front Axle Drive Pinion Thrust |
| 43640G | Seal, Type T Oil (FOR FRONT AXLE DIFFERENTIAL CARRIER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
