Toyota Hilux (JPP)
1988-08 → 1997-08 · chassis RN1##,YN85,90,1##,LN85,90,1##,VZN130,KZN130 · catalogue 671550 · Europe
Discontinued model
Data version 1998-04

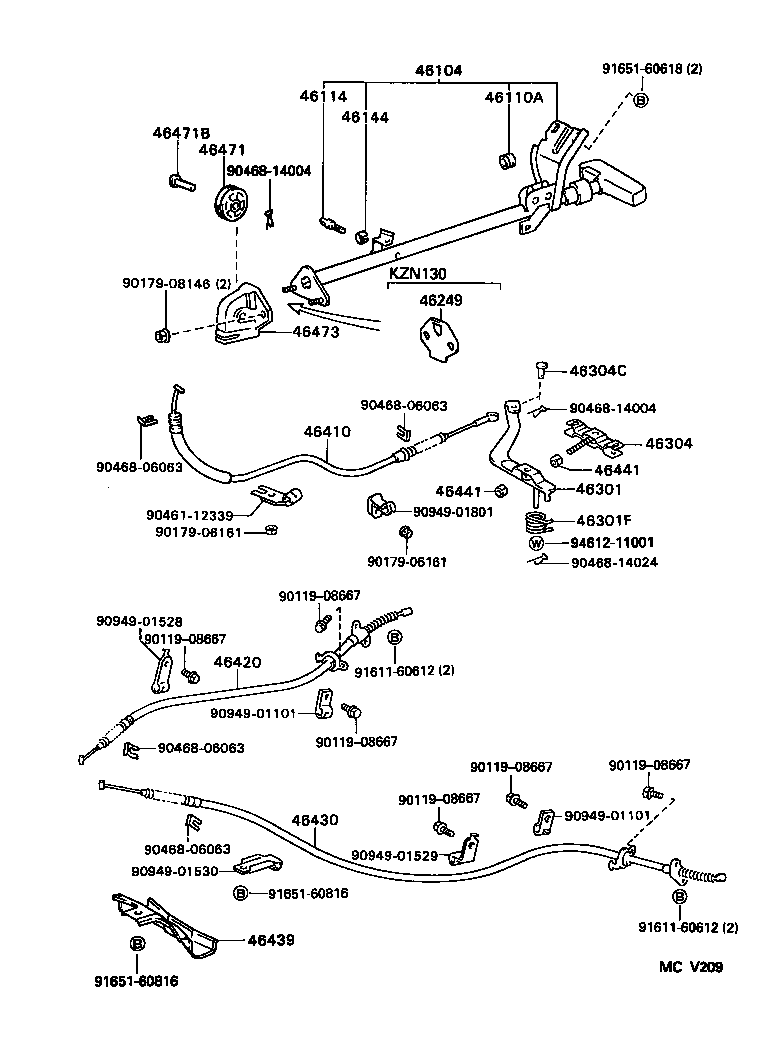

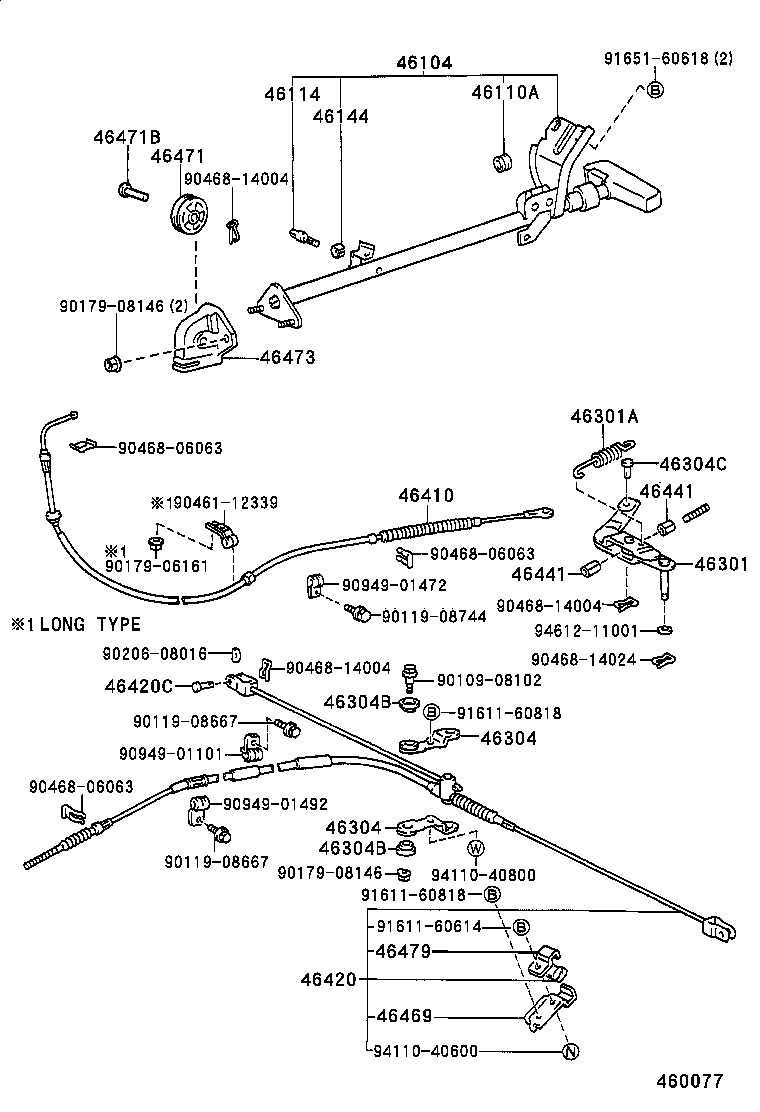

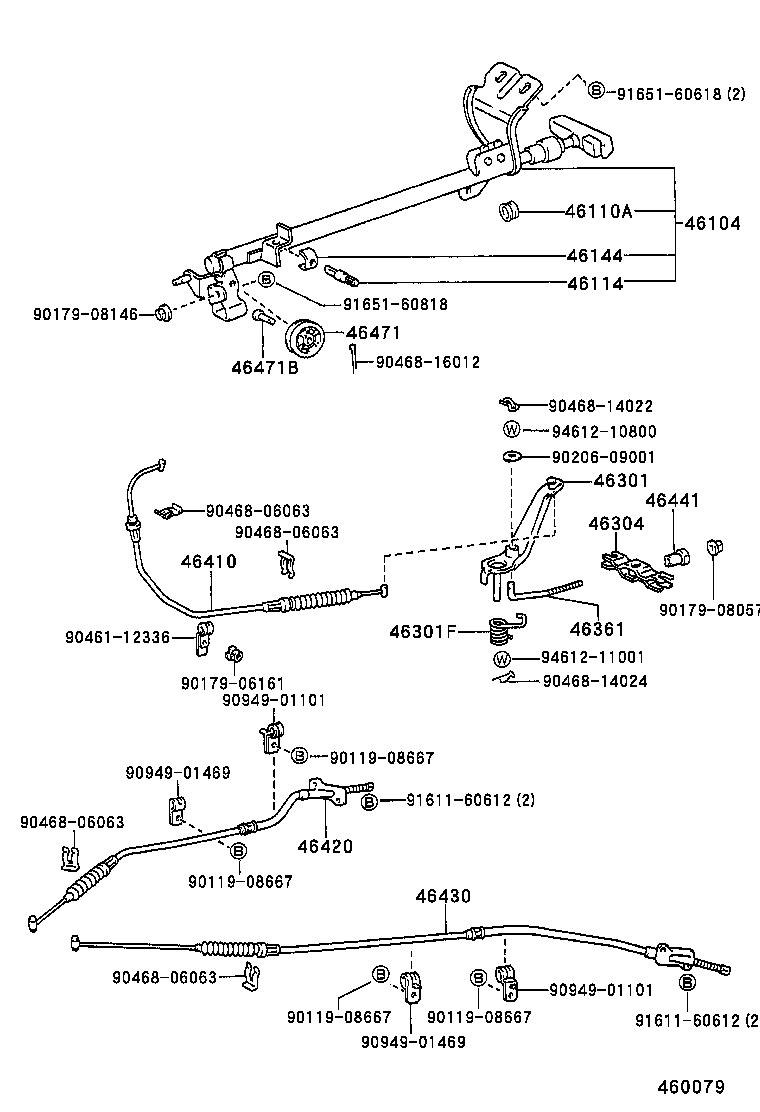

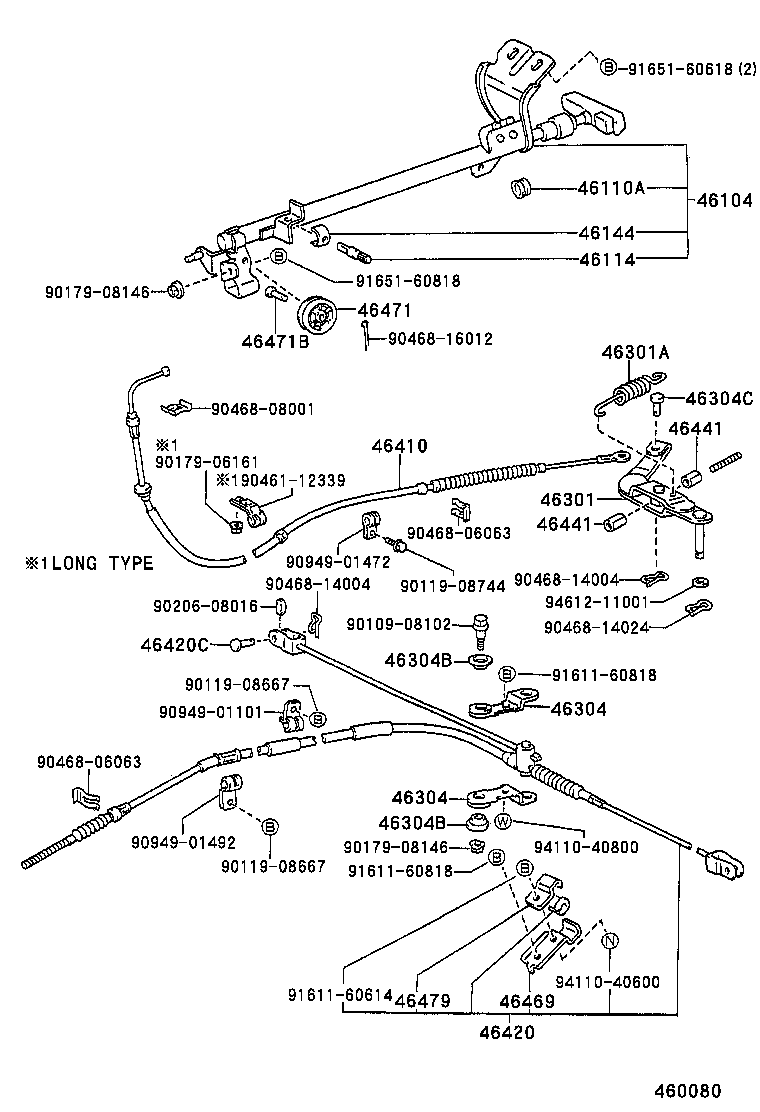

Parking Brake & Cable
23 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 46104 | Handle Sub-assy, Parking Brake Control |
| 46110A | Bush OR Ring, O (FOR PARKING BRAKE PLUNGER) |
| 46114 | Pin, Parking Brake Plunger |
| 46144 | Anti-rattle, Parking Brake Plunger |
| 46249 | Shield, Parking Brake Hole |
| 46301 | Lever Sub-assy, Parking Brake Intermediate |
| 46301A | Spring, Tension(FOR INTERMEDIATE LEVER) |
| 46301F | Spring, Torsion(FOR PARKING BRAKE INTERMEDIATE LEVER) |
| 46304 | Equalizer Sub-assy, Parking Brake |
| 46304B | Bush(FOR PARKING BRAKE EQUALIZER) |
| 46304C | Pin(FOR PARKING BRAKE EQUALIZER) |
| 46361 | Rod, Parking Brake Pull |
| 46410 | Cable Assy, Parking Brake, NO.1 |
| 46420 | Cable Assy, Parking Brake, NO.2 |
| 46420C | Pin, W/Hole(FOR PARKING BRAKE CABLE) |
| 46430 | Cable Assy, Parking Brake, NO.3 |
| 46439 | Insulator, Parking Brake Cable Heat |
| 46441 | Nut, Wire Adjusting, NO.1 |
| 46469 | Lever, Cable Guide Support |
| 46471 | Pulley, Wire |
| 46471B | Pin, W/Hole(FOR WIRE PULLEY SET) |
| 46473 | Bracket, Pulley |
| 46479 | Lever, Cable Guide Sapport, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
