Toyota Hilux (JPP)
1988-08 → 1997-08 · chassis RN1##,YN85,90,1##,LN85,90,1##,VZN130,KZN130 · catalogue 671550 · Europe
Discontinued model
Data version 1998-04

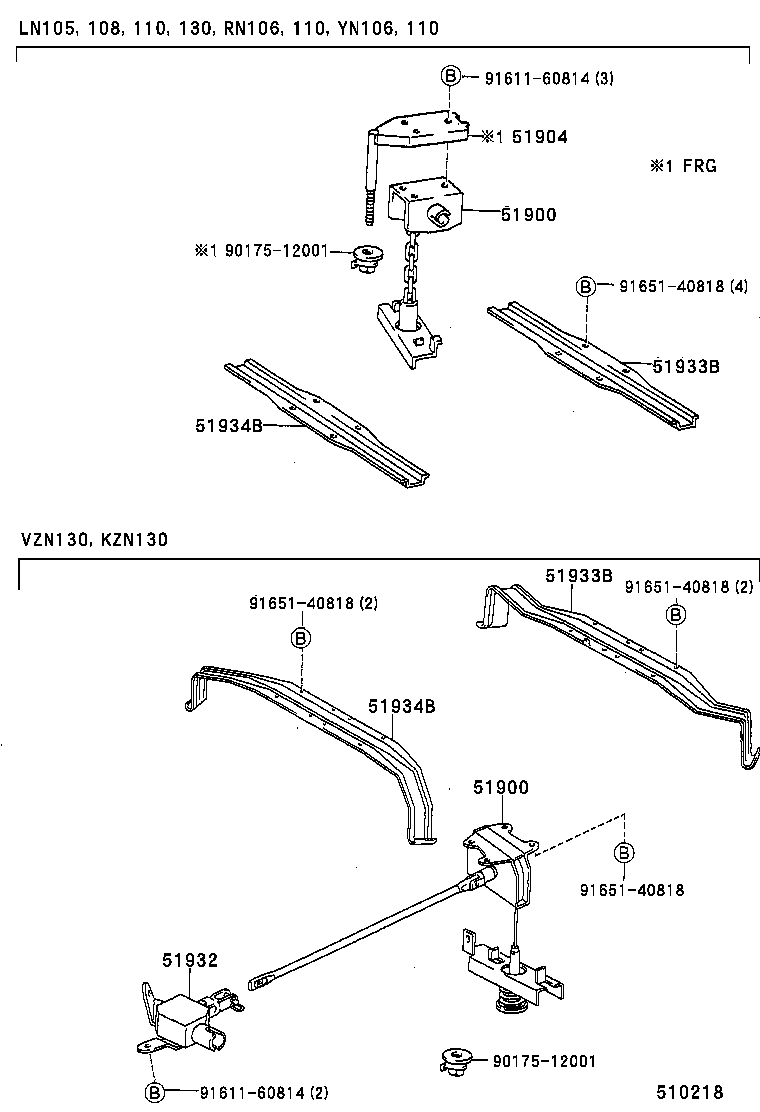

Spare Wheel Carrier
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 51900 | Carrier Assy, Spare Wheel |
| 51900F | Carrier Assy, Spare Wheel |
| 51904 | Bracket Sub-assy, Speare Wheel Carrier |
| 51907F | Stopper Sub-assy, Spare Wheel Carrier |
| 51916 | Pin, Spare Tire Carrier |
| 51932 | Carrier, Spare Wheel, NO.2 |
| 51933B | Stopper, Spare Wheel Carrier, RH |
| 51934B | Stopper, Spare Wheel Carrier, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
