Toyota Hilux (JPP)

1988-08 → 1997-08 · chassis RN1##,YN85,90,1##,LN85,90,1##,VZN130,KZN130 · catalogue 671550 · Europe

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cab Mounting & Body Mounting

15 part groups · 2 illustrations

Illustrations

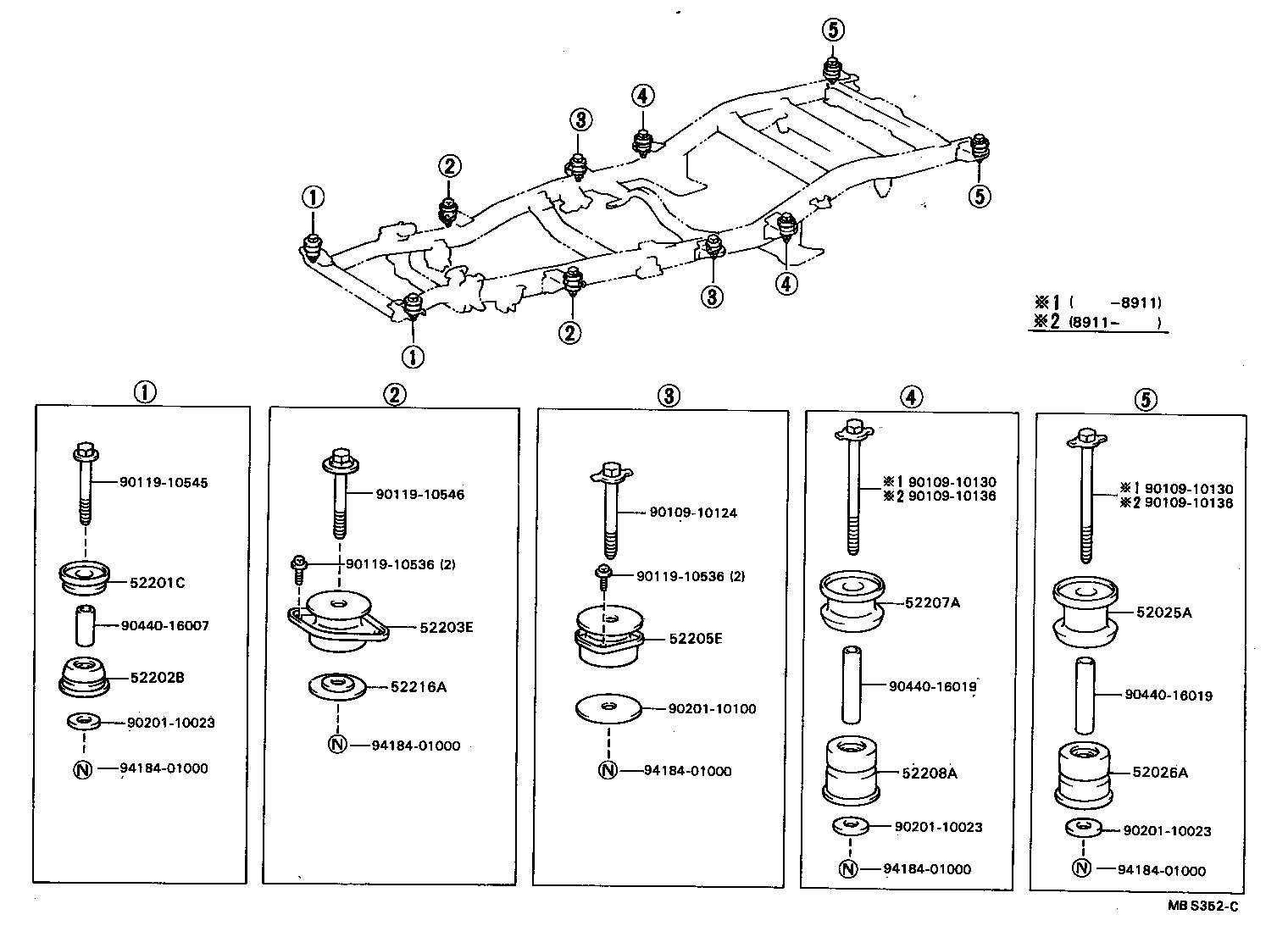

Figure MBP313D MBP313D 1988-08 → — Figure MBS352C MBS352C 1989-08 → 1995-11

Part groups

PNCDescription
52025A Cushion Sub-assy, Cab Mounting End, Upper
52026A Cushion Sub-assy, Cab Mounting End, Lower
52201C Cushiion Sub-assy, Cab Mounting, NO.1 Upper
52202B Cushiion Sub-assy, Cab Mounting, NO.1 Lower
52203D Cushion Sub-assy, Cab Mounting, NO.2 Upper
52203E Cushion Sub-assy, Cab Mounting, NO.2
52204B Cushion Sub-assy, Cab Mounting, NO.2 Lower
52205D Cushion Sub-assy, Cab Mounting, NO.3 Upper
52205E Cushion Sub-assy, Cab Mounting, NO.3
52205F Cushion Sub-assy, Cab Mounting, NO.4 Upper
52206A Cushion Sub-assy, Cab Mounting, NO.3 Lower
52206B Cushion Sub-assy, Cab Mounting, NO.4 Lower
52207A Cushion Sub-assy, Cab Mounting, NO.4 Upper
52208A Cushion Sub-assy, Cab Mounting, NO.4 Lower
52216A Stopper, Cab Mounting Cushion
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
