Toyota Hilux (JPP)

1988-08 → 1997-08 · chassis RN1##,YN85,90,1##,LN85,90,1##,VZN130,KZN130 · catalogue 671550 · Europe

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

7 part groups · 9 illustrations

Illustrations

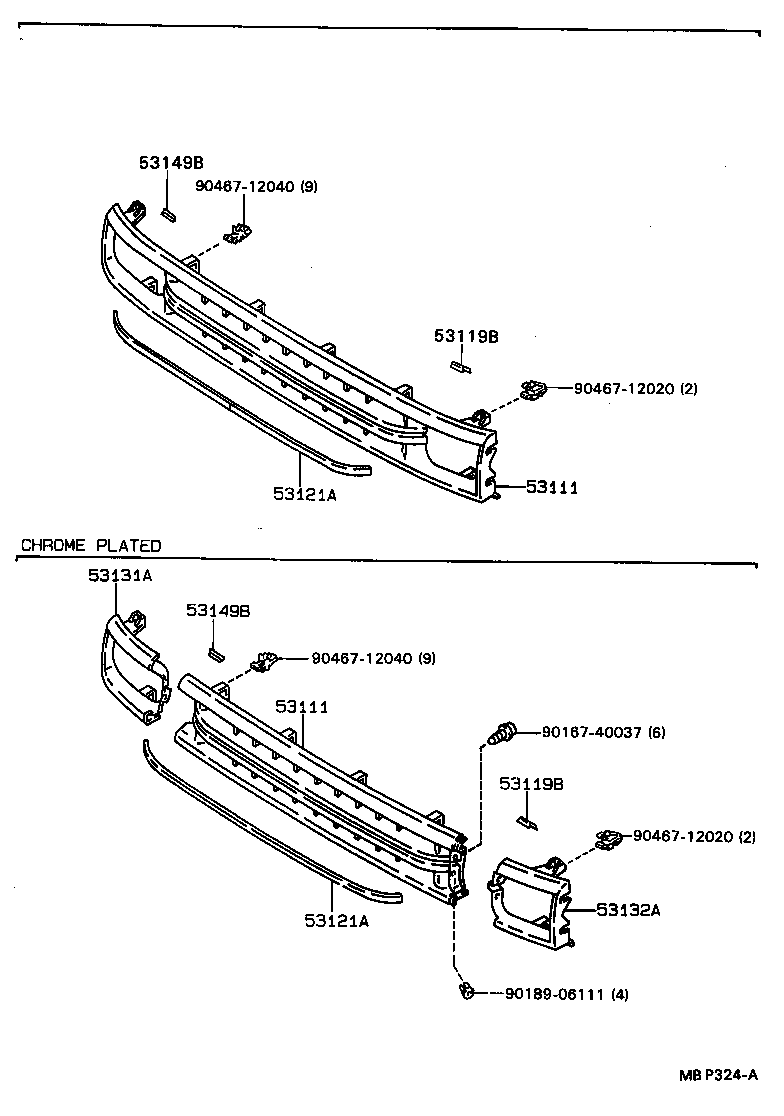

Figure MBU568 MBU568 1988-08 → 1991-08 Figure MBV854 MBV854 1991-08 → 1995-11 Figure MBV853 MBV853 1991-08 → — Figure MBP324A MBP324A 1988-08 → 1991-08 Figure MBV855 MBV855 1991-08 → — Figure MBP326B MBP326B 1988-08 → 1991-08 Figure MBV856 MBV856 1991-08 → — Figure MBP538A MBP538A 1988-08 → 1991-08 Figure MBV857 MBV857 1991-08 → —

Part groups

PNCDescription
53111 Grille, Radiator
53115B Bracket, Radiator Grille
53119B Protector, Radiator Grille
53121A Moulding, Radiator Grille
53131A Door, Headlamp, RH
53132A Door, Headlamp, LH
53149B Protector, Headlamp Door, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
