Toyota Hilux (JPP)
1988-08 → 1997-08 · chassis RN1##,YN85,90,1##,LN85,90,1##,VZN130,KZN130 · catalogue 671550 · Europe
Discontinued model
Data version 1998-04

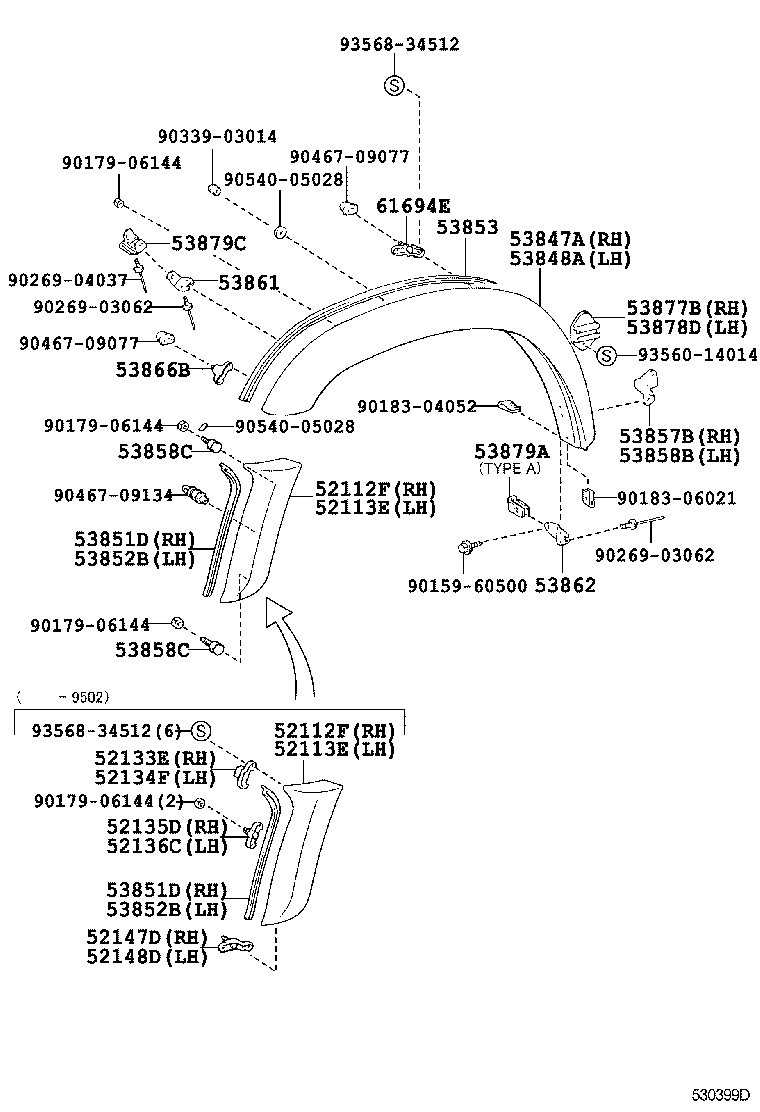

Hood & Front Fender
44 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52112F | Extension, Front Bumper, RH |
| 52113E | Extension, Front Bumper, LH |
| 52133E | Bracket, Front Bumper, RH |
| 52134F | Bracket, Front Bumper, LH |
| 52135D | Bracket, Front Bumper, NO.1 RH |
| 52136C | Bracket, Front Bumper, NO.1 LH |
| 52147D | Bracket, Front Bumper, NO.2 RH |
| 52148D | Bracket, Front Bumper, NO.2 LH |
| 53301 | Hood Sub-assy |
| 53341B | Insulator, Hood |
| 53341C | Clip(FOR HOOD INSULATOR) |
| 53381 | Seal, Hood TO Radiator Support |
| 53381A | Clip(FOR HOOD TO RADIATOR SUPPORT SEAL) |
| 53384A | Bumper, Fender TO Hood |
| 53385B | Bracket, Fender TO Hood Bumper, RH |
| 53386 | Bumper, Hood, Rear |
| 53386B | Bracket, Fender TO Hood Bumper, LH |
| 53736F | Seal, Front Fender Apron, RH |
| 53737H | Seal, Front Fender Apron, LH |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53847A | Extension, Front Wheel Opening OR Arch Moulding, RH |
| 53848A | Extension, Front Wheel Opening OR Arch Moulding, LH |
| 53851D | Pad, Front Wheel Opening Extension, RH |
| 53852B | Pad, Front Wheel Opening Extension, LH |
| 53853 | Pad, Front Wheel Opening Extension, NO.3 |
| 53857B | Retainer, Front Wheel Opening Extension, RH |
| 53858B | Retainer, Front Wheel Opening Extension, LH |
| 53858C | Bolt, Wheel Opening |
| 53861 | Bracket, Front Wheel Opening, NO.1 |
| 53862 | Bracket, Front Wheel Opening, NO.2 |
| 53866B | Bracket, Front Wheel Opening, NO.4 |
| 53875A | Liner, Front Fender, RH |
| 53876A | Liner, Front Fender, LH |
| 53877B | Bracket, Front Fender Rear Side Panel, Lower RH |
| 53878C | Spacer, Front Fender |
| 53878D | Bracket, Front Fender Rear Side Panel, Lower LH |
| 53879A | Retainer, Front Fender Liner |
| 53879C | Retainer, Front Fender Liner |
| 53911 | Panel, Front Valance |
| 55796A | Cover, Radio Antenna Hole |
| 61694E | Bracket, Rear Wheel Opening, NO.2 |
| 76621B | Mudguard, Front Body, RH |
| 76622B | Mudguard, Front Body, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
