Toyota Hilux (JPP)

1988-08 → 1997-08 · chassis RN1##,YN85,90,1##,LN85,90,1##,VZN130,KZN130 · catalogue 671550 · Europe

Discontinued model Data version 1998-04

Front Fender Apron & Dash Panel

34 part groups · 4 illustrations

PNC	Description
53135B	Bracket, Head Lamp Door, RH
53136B	Bracket, Head Lamp Door, LH
53205	Support Sub-assy, Radiator, Upper
53211C	Support, Radiator, RH
53212C	Support, Radiator, LH
53217A	Brace, Hood Lock Support
53701	Apron Sub-assy, Front Fender, RH
53702	Apron Sub-assy, Front Fender, LH
53705A	Brace Sub-assy, Fender Apron, RH
53706A	Brace Sub-assy, Fender Apron, LH
53713C	Extension, Front Fender Apron, Front RH
53714C	Extension, Front Fender Apron, Front LH
53731E	Patch, Front Fender Apron
53736A	Clip(FOR FRONT FENDER APRON SEAL)
53736D	Seal, Fender Apron

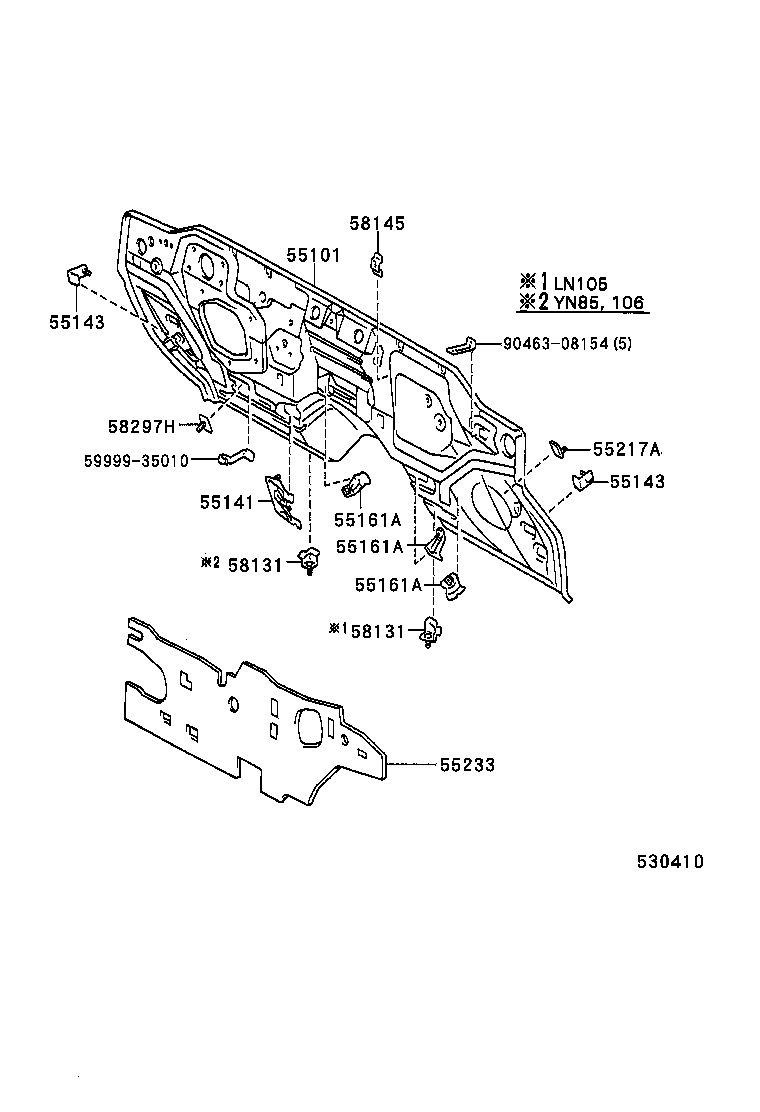

55101	Panel Sub-assy, Dash
55127	Reinforcement, Parking Brake
55131	Reinforcement, Dash Panel
55133	Plate, Front Fender Apron Set, Lower RH
55134	Plate, Front Fender Apron Set, Lower LH
55141	Bracket, Foot Rest Mounting
55143	Bracket, Cowl Side Trim Mounting, NO.1
55161A	Bracket, Heater Mounting, RH
55210	Insulator Assy, Dash Panel
55217A	Retainer, Dash Panel Silencer
55223B	Insulator, Dash Panel Heat, NO.1
55233	Sheet, Dash Panel Insulator
57104A	Member Sub-assy, Front Cross
57167	Gusset, Front Crossmember, Upper RH
57168	Gusset, Front Crossmember, Upper LH
58131	Bracket, Front Floor Heat Insulator, NO.1
58145	Retainer, Front Floor Heat Insulator Support, NO.1
58236C	Bracket, Clutch Tube
58297H	Retainer, Floor Clamp

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
