Toyota Hilux (JPP)

1988-08 → 1997-08 · chassis RN1##,YN85,90,1##,LN85,90,1##,VZN130,KZN130 · catalogue 671550 · Europe

Discontinued model Data version 1998-04

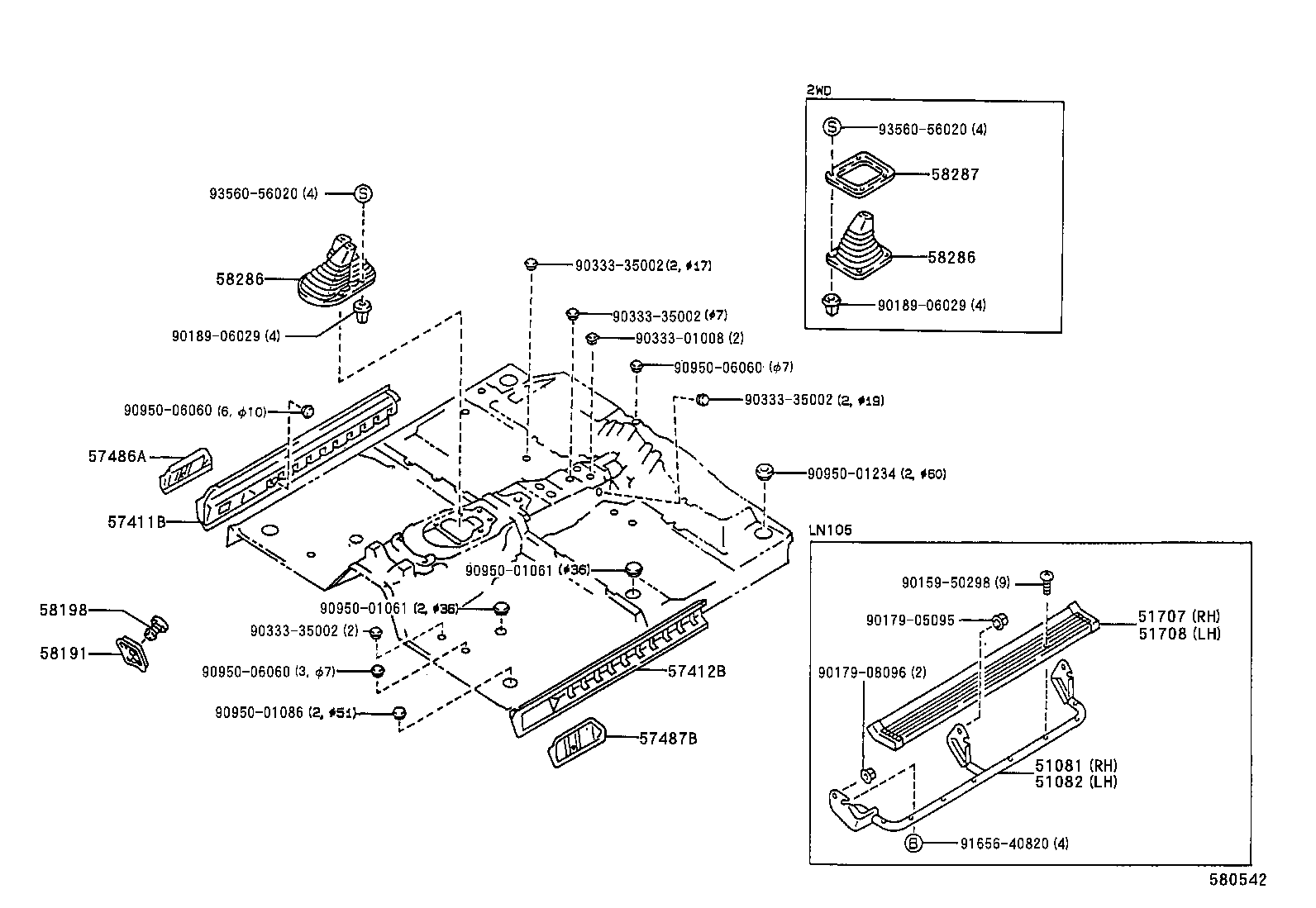

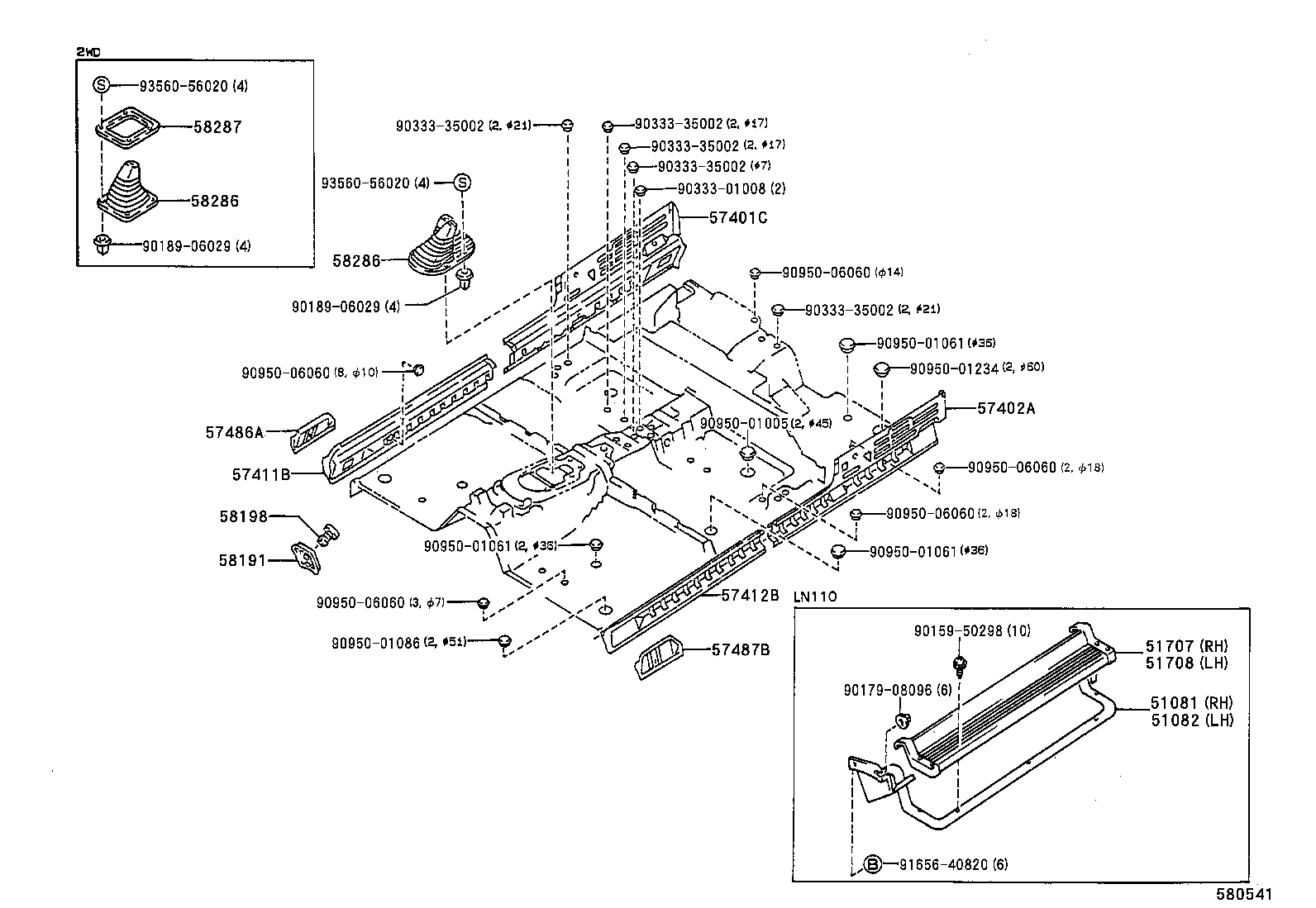

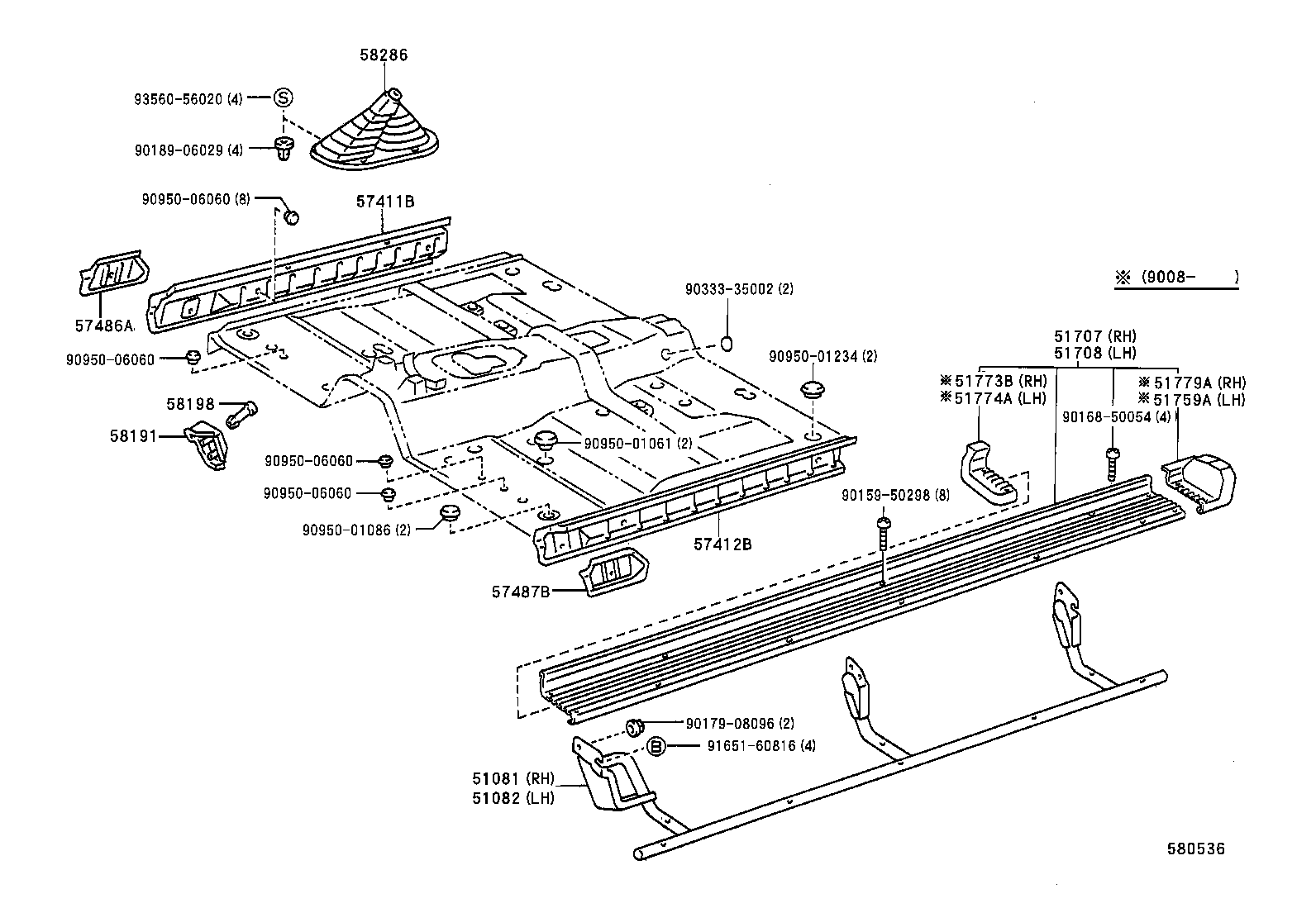

Front Floor Panel & Front Floor Member

39 part groups · 5 illustrations

PNC	Description
51081	Stay Sub-assy, Side Step, NO.1 RH
51082	Stay Sub-assy, Side Step, NO.1 LH
51707	Step Sub-assy, RH
51708	Step Sub-assy, LH
51759A	Cover, Side Door Step Plate, Rear LH
51773B	Cover, Side Door Step Plate, Front RH
51774A	Cover, Side Door Step Plate, Front LH
51779A	Cover, Side Door Step Plate, Rear RH
57023B	Bracket Sub-assy, Body Mounting, NO.2 RH
57024B	Bracket Sub-assy, Body Mounting, NO.2 LH
57025	Bracket Sub-assy, Body Mounting, NO.3 RH
57026	Bracket Sub-assy, Body Mounting, NO.3 LH
57401C	Member Sub-assy, Floor Side, Inner RH
57402A	Member Sub-assy, Floor Side, Inner LH
57411B	Member, Floor Side, Inner RH
57412B	Member, Floor Side, Inner LH
57417A	Reinforcement, Front Floor Under
57451	Member, Front Floor Cross
57452	Member, Front Floor Cross, LH
57453A	Reinforcement, Front Floor Crossmember, RH
57454A	Reinforcement, Front Floor Crossmember, LH
57486A	Reinforcement, Floor Side Member, NO.1 RH
57487B	Reinforcement, Floor Side Member, NO.1 LH
57512	Reinforcement, Front Floor, RH
57513	Reinforcement, Front Floor, LH
57652D	Member, Rear Floor Cross, NO.1
58111	Pan, Front Floor
58123A	Support, Shift & Select Lever
58163A	Retainer, Console Box Mounting, NO.1
58164A	Retainer, Console Box Mounting
58185A	Bracket, Control Link TO Floor Pan
58191	Footrest, Front Floor
58193	Bracket, Instrument Panel Brace Mounting
58198	Clip, Footrest
58239A	Plate, Belt Anchor Nut
58286	Boot, Shift & Select Lever, NO.1
58287	Retainer, Shift Lever Boot
58297G	Retainer, Floor Clamp
58995A	Bracket, Console Box Mounting, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
