Toyota Hilux (JPP)
1988-08 → 1997-08 · chassis RN1##,YN85,90,1##,LN85,90,1##,VZN130,KZN130 · catalogue 671550 · Europe
Discontinued model
Data version 1998-04

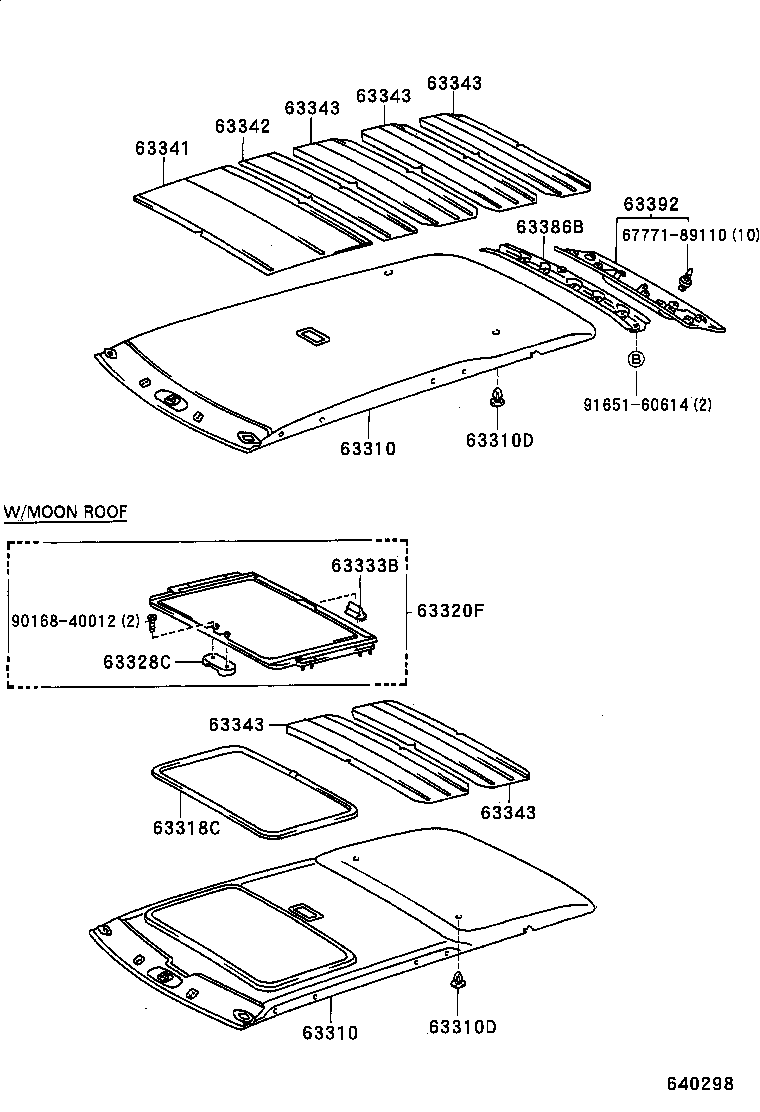

Roof Headlining & Silencer Pad
21 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 63310 | Headlining Assy, Roof |
| 63310D | Clip, Roof Headlining |
| 63318C | Moulding, Sun Roof Opening Trim |
| 63320F | Headlining Assy, Sun Roof |
| 63328C | Knob, Sunshade Trim |
| 63333B | Protector, Sunshade Trim |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63343 | Pad, Roof Silencer, NO.3 |
| 63351C | Pad, Roof Headlining |
| 63361 | Support, Roof Headlining, NO.1 |
| 63361A | Support, Roof Headlining |
| 63362 | Support, Roof Headlining, NO.2 |
| 63363 | Support, Roof Headlining, NO.3 |
| 63364 | Support, Roof Headlining, NO.4 |
| 63365 | Support, Roof Headlining, NO.5 |
| 63371C | Retainer, Roof Headlining, NO.1 RH |
| 63381C | Retainer, Roof Headlining, NO.1 LH |
| 63386B | Reinforcement, Roof Headlining Trim |
| 63391B | Clip, Roof Headlining Trim |
| 63392 | Trim, Roof Headlining, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
