Toyota Hilux (JPP)
1988-08 → 1997-08 · chassis RN1##,YN85,90,1##,LN85,90,1##,VZN130,KZN130 · catalogue 671550 · Europe
Discontinued model
Data version 1998-04

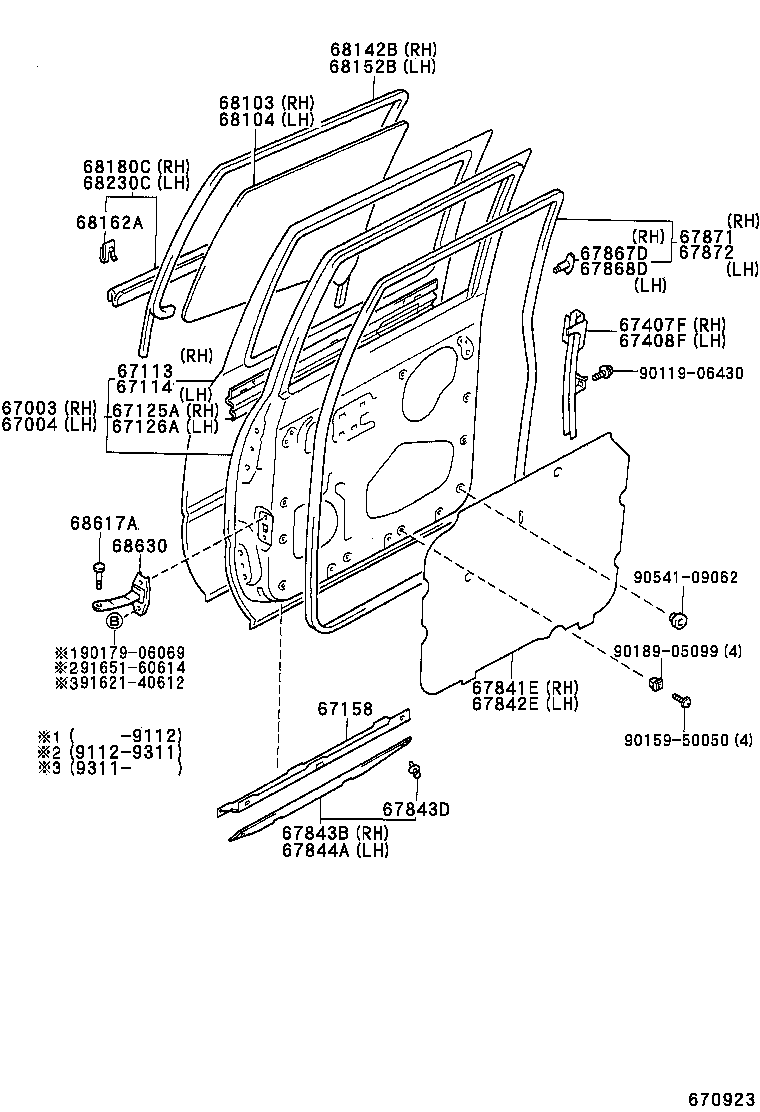

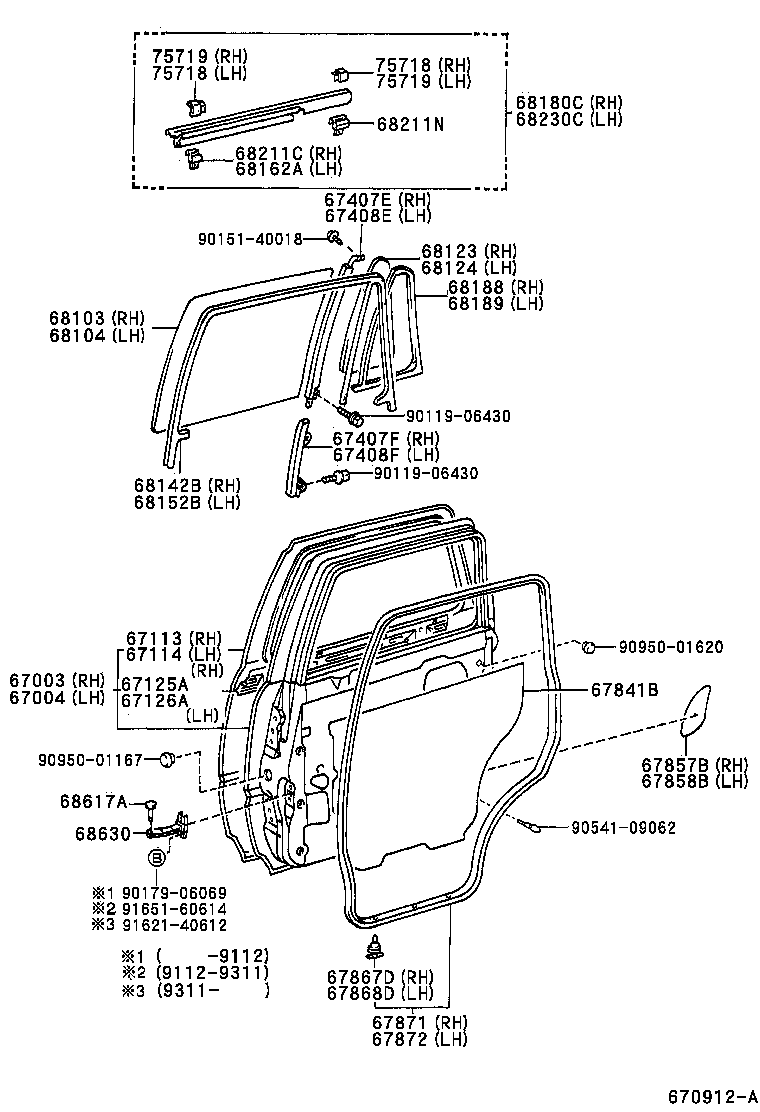

Rear Door Panel & Glass
47 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67113 | Panel, Rear Door, Outer RH |
| 67114 | Panel, Rear Door, Outer LH |
| 67125A | Reinforcement, Rear Door Outside Panel, RH |
| 67126A | Reinforcement, Rear Door Outside Panel, LH |
| 67158 | Bracket, Rear Door Lower Hole |
| 67407E | Bar Sub-assy, Rear Door Window Division, RH |
| 67407F | Frame Sub-assy, Rear Door Window, Rear Lower RH |
| 67408E | Bar Sub-assy, Rear Door Window Division, LH |
| 67408F | Frame Sub-assy, Rear Door Window, Rear Lower LH |

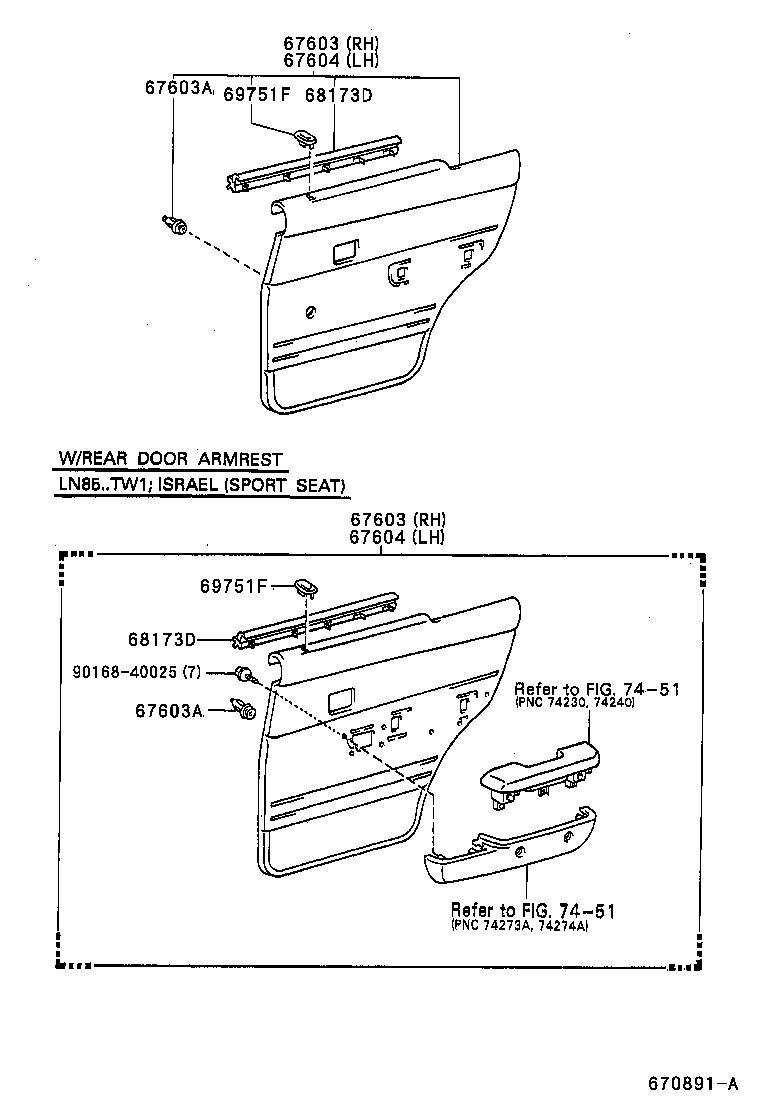

| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603A | Retainer(FOR REAR DOOR TRIM BOARD) |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67841B | Cover, Rear Door Service Hole |
| 67841E | Cover, Rear Door Service Hole, RH |
| 67842E | Cover, Rear Door Service Hole, LH |
| 67843B | Cover, Rear Door Service Hole, NO.2 RH |
| 67843D | Clip, Rear Door Service Hole |
| 67844A | Cover, Rear Door Service Hole, NO.2 LH |
| 67857B | Protector, Rear Door Panel, RH |
| 67858B | Protector, Rear Door Panel, LH |
| 67867D | Retainer, Rear Door Weatherstrip, RH |
| 67868D | Retainer, Rear Door Weatherstrip, LH |
| 67871 | Weatherstrip, Rear Door, RH |
| 67872 | Weatherstrip, Rear Door, LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68123 | Glass, Rear Door Window, RH |
| 68124 | Glass, Rear Door Window, LH |
| 68142B | Run, Rear Door Window, RH |
| 68152B | Run, Rear Door Window, LH |
| 68162A | Clip(FOR REAR DOOR GLASS OUTER WEATHERSTRIP) |
| 68173D | Weatherstrip, Rear Door Glass, Channel |
| 68180C | Weatherstrip Assy, Rear Door Glass, Outer RH |
| 68188 | Weatherstrip, Rear Door Quarter Window, RH |
| 68189 | Weatherstrip, Rear Door Quarter Window, LH |
| 68190 | Weatherstrip Assy, Rear Door Glass, Inner |
| 68190A | Clip(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET) |
| 68211C | Clip(FOR REAR DOOR GLASS WEATHERSTRIP) |
| 68211N | Clip, Door Glass Weatherstrip |
| 68230C | Weatherstrip Assy, Rear Door Glass, Outer LH |
| 68617A | Pin, Rear Door Check |
| 68630 | Check Assy, Rear Door |
| 69751F | Holder, Rear Door Lock Control Knob |
| 75718 | Cover, Front Door Belt Moulding End, Rear RH |
| 75719 | Cover, Front Door Belt Moulding End, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
