Toyota Hilux (JPP)
1988-08 → 1997-08 · chassis RN1##,YN85,90,1##,LN85,90,1##,VZN130,KZN130 · catalogue 671550 · Europe
Discontinued model
Data version 1998-04

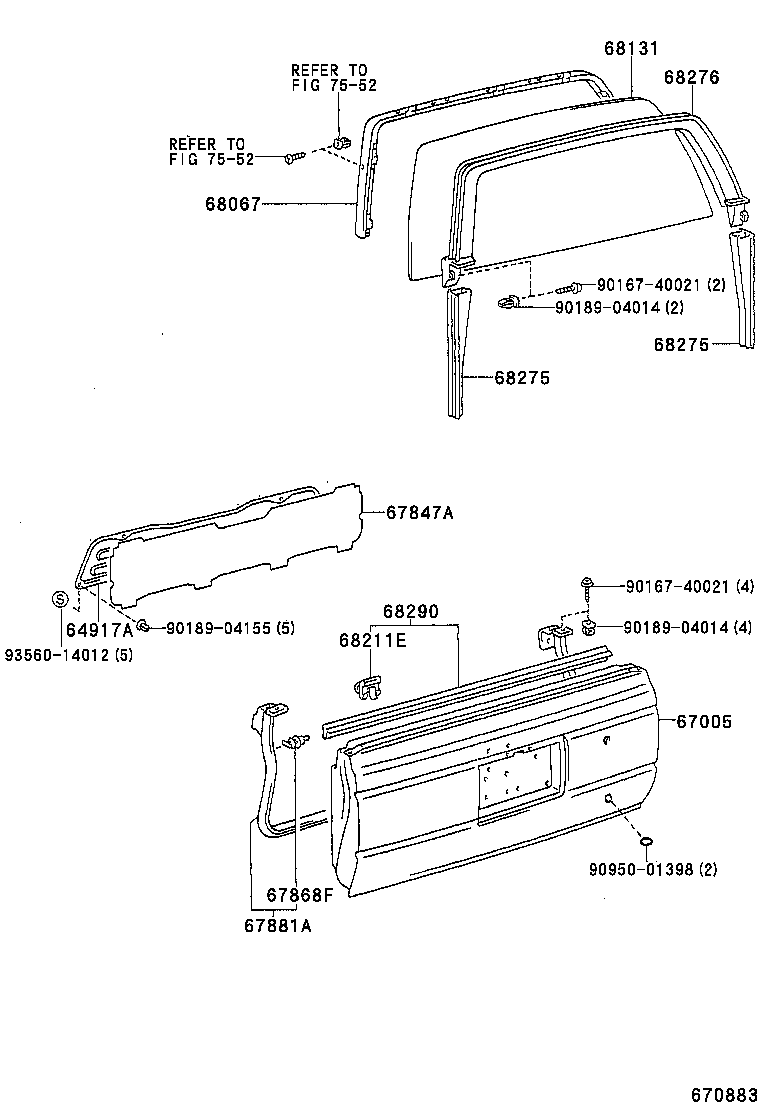

Back Door Panel & Glass
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 64780A | Panel Assy, Back Door Trim |
| 64917A | Board, Back Door Panel, Inner |
| 67005 | Panel Sub-assy, Back Door |
| 67750 | Board Assy, Back Door Trim |
| 67847A | Cover, Back Door Service Hole |
| 67868F | Retainer, Door Weatherstrip, LH |
| 67881A | Weatherstrip, Back Door |
| 68067 | Frame Assy, Back Door Window, Upper RH |
| 68131 | Glass, Back Door |
| 68211E | Clip, Door Glass Weatherstrip |
| 68275 | Run, Back Door Glass |
| 68276 | Run, Back Door Glass, Upper |
| 68290 | Hook Assy, Door Glass Male |
| 68291 | Weatherstrip, Back Door Glass |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
