Toyota Hilux (JPP)

1988-08 → 1997-08 · chassis RN1##,YN85,90,1##,LN85,90,1##,VZN130,KZN130 · catalogue 671550 · Europe

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate

12 part groups · 2 illustrations

Illustrations

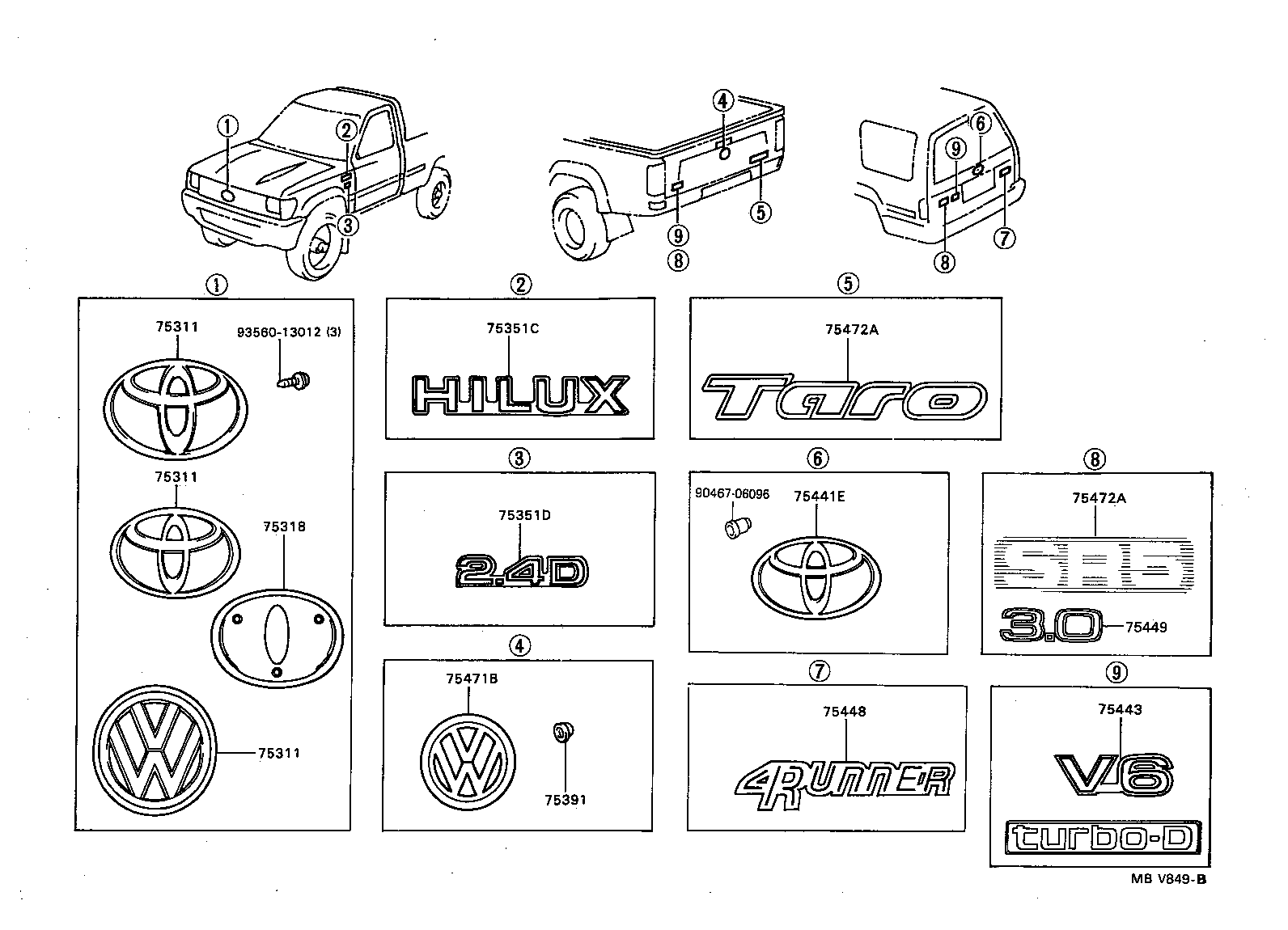

Figure 750278 750278 1988-08 → 1991-08 Figure MBV849B MBV849B 1991-08 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75312B Emblem, Radiator Grille, NO.2
75318 Retainer, Radiator Grille Emblem
75351C Mark, Fender
75351D Mark, Fender, NO.2
75391 Retainer, Name Plate
75441E Plate, Back Door Name, NO.1
75443 Plate, Back Door Name, NO.3
75448 Plate, Back Door Name, NO.8
75449 Plate, Back Door Name, NO.9
75471B Plate, Rear Body Name, NO.1
75472A Plate, Rear Body Name, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
