Toyota Hilux (JPP)

1988-08 → 1997-08 · chassis RN1##,YN85,90,1##,LN85,90,1##,VZN130,KZN130 · catalogue 671550 · Europe

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

12 part groups · 10 illustrations

Illustrations

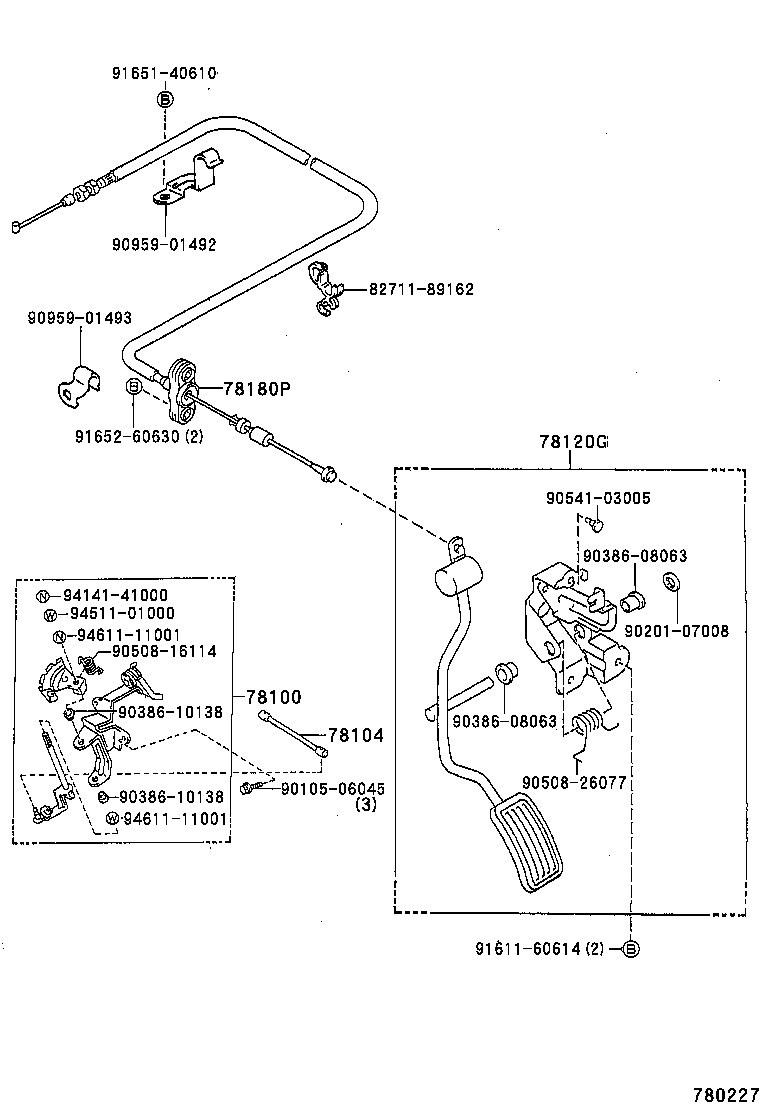

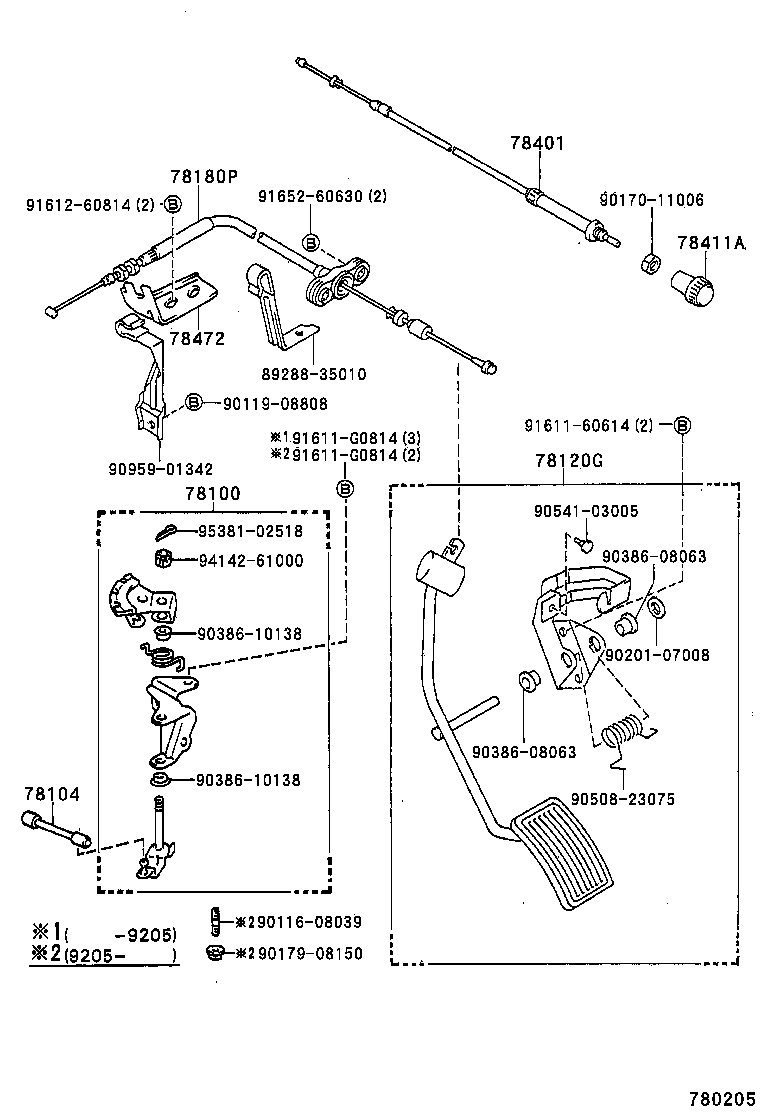

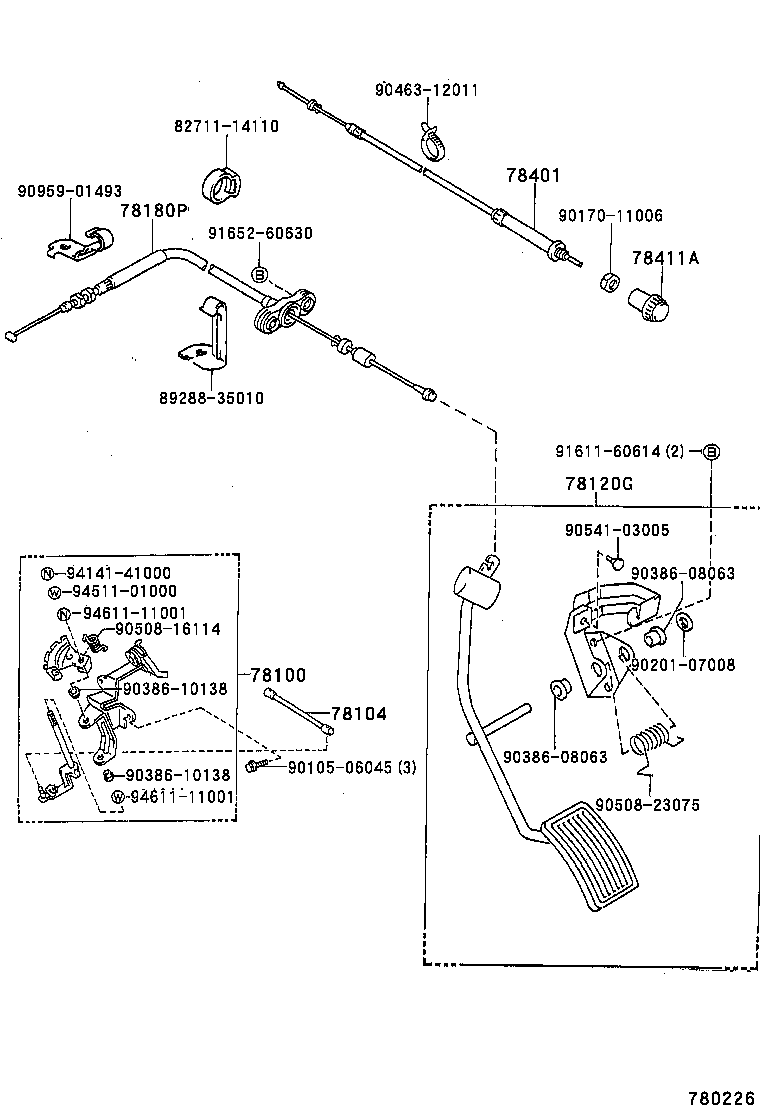

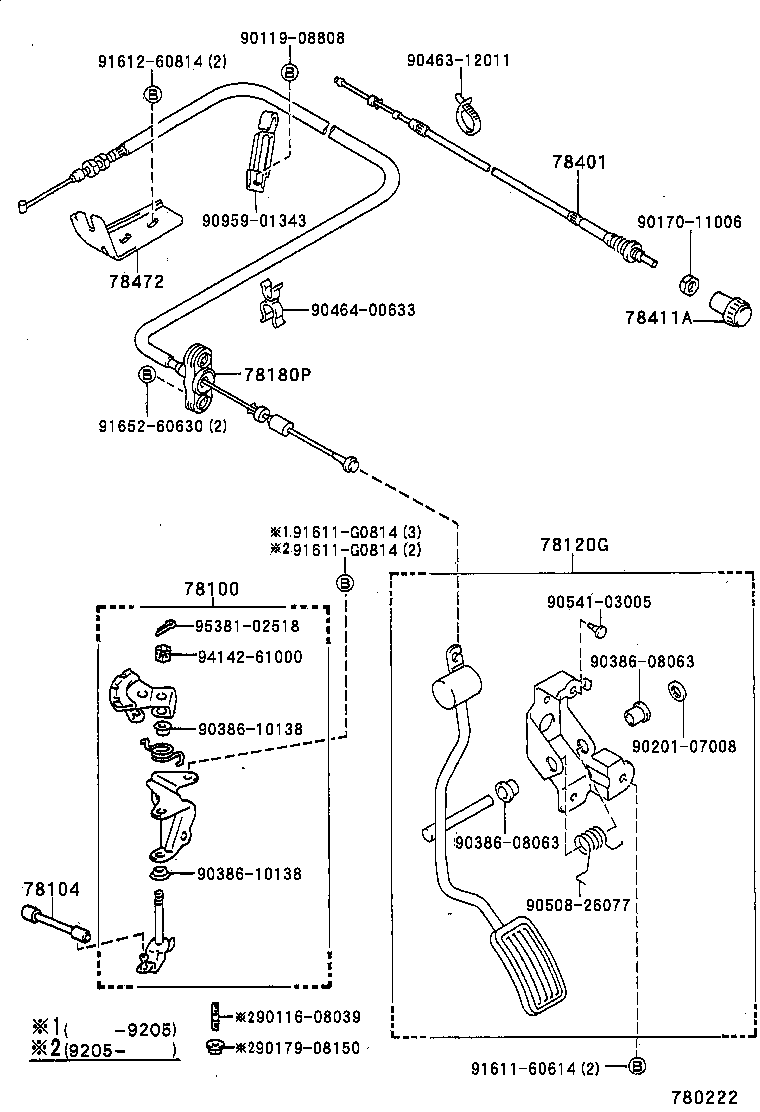

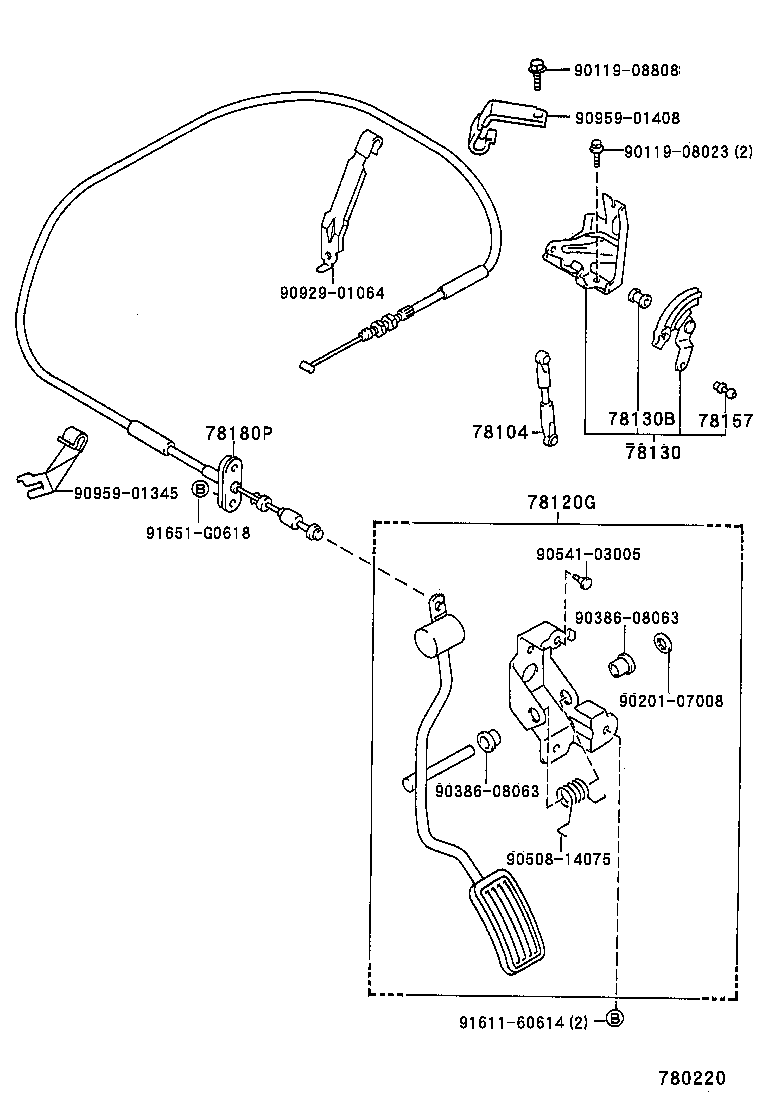

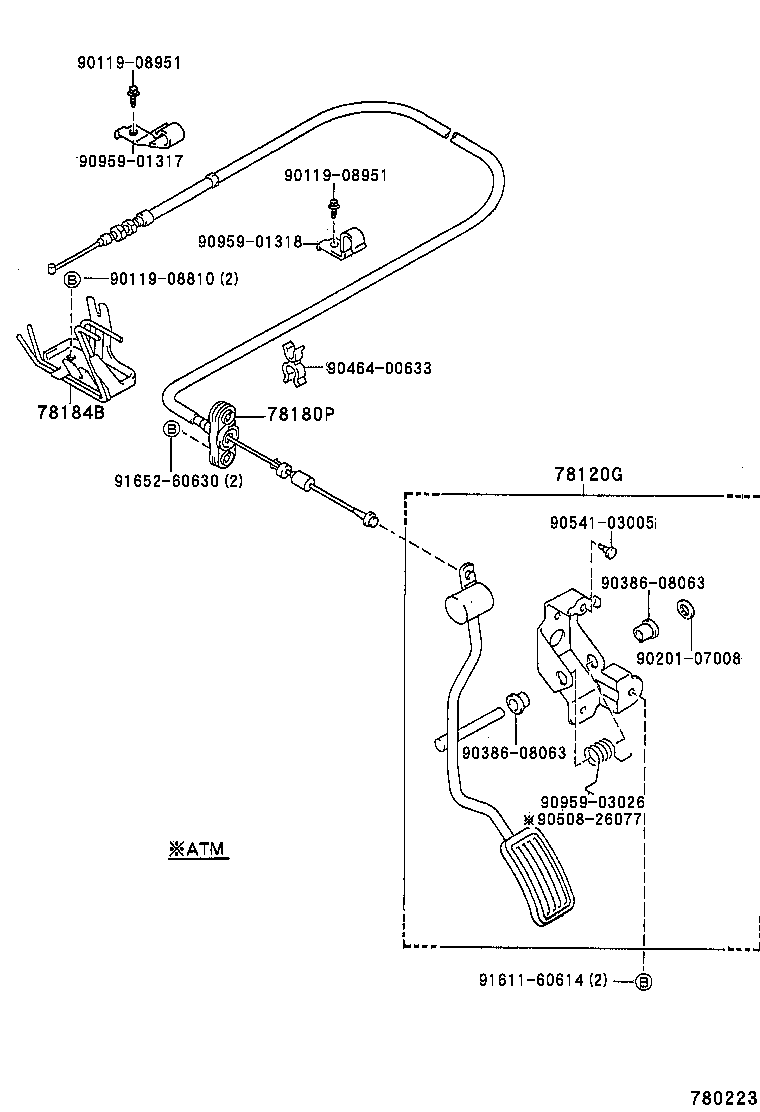

Figure 780219 780219 1988-08 → — Figure 780220 780220 1988-08 → — Figure 780205 780205 1988-08 → — Figure 780222 780222 1988-08 → — Figure 780218 780218 1988-08 → — Figure 780223 780223 1989-08 → 1995-11 Figure 780224 780224 1993-08 → 1995-11 Figure 780225 780225 1989-08 → 1995-11 Figure 780226 780226 1993-08 → 1995-11 Figure 780227 780227 1993-08 → 1995-11

Part groups

PNCDescription
78024 Bracket Sub-assy, Accelerator Control Cable
78100 Link Assy, Accelerator
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78120G Rod Assy, Accelerator Pedal
78130 Bellcrank Assy, Accelerator
78130B Bush, Accelerator Bellcrank
78157 Ball, Accelerator Joint
78180P Cable Assy, Accelerator Control
78184B Bracket, Accelerator Control Cable
78401 Cable Sub-assy, Throttle Control
78411A Knob, Throttle Control Cable
78472 Support, Throttle Control Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
