Toyota Hilux (JPP)
1988-08 → 1997-08 · chassis RN1##,YN85,90,1##,LN85,90,1##,VZN130,KZN130 · catalogue 671550 · Europe
Discontinued model
Data version 1998-04
Meter
29 part groups · 7 illustrations
Part groups

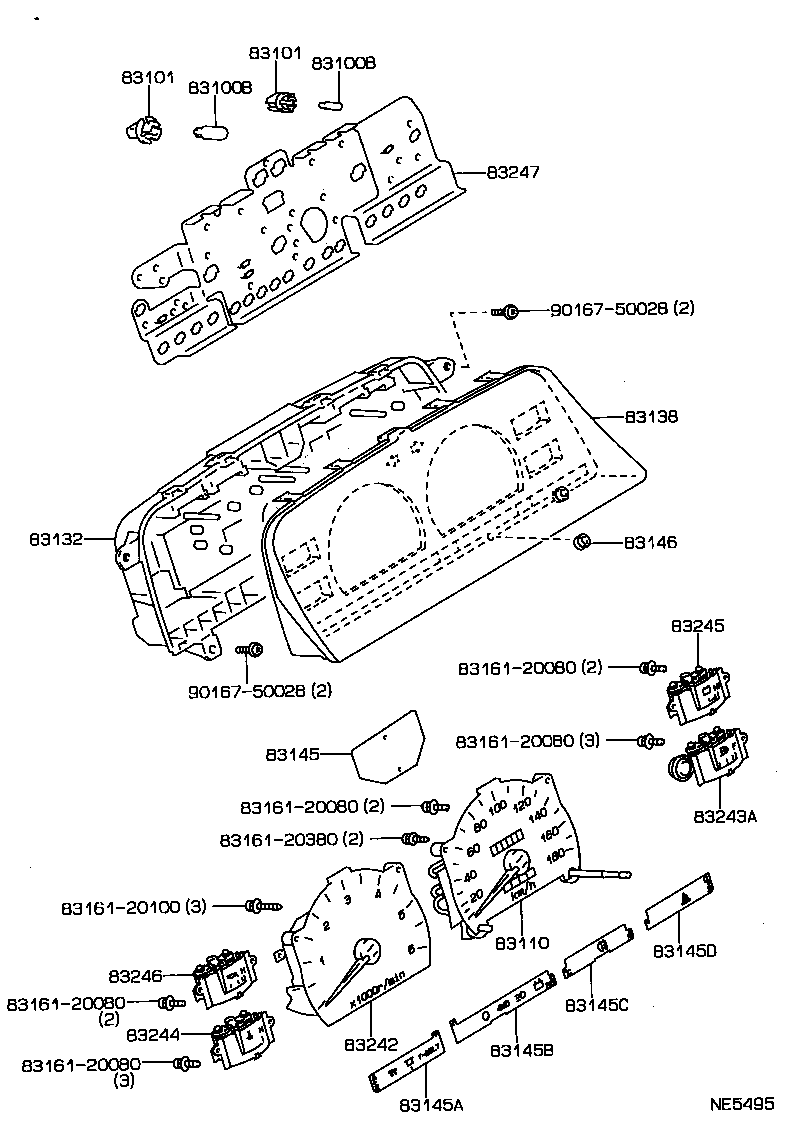

| PNC | Description |
|---|---|
| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83110 | Speedometer Assy |
| 83132 | Case, Combination Meter |
| 83138 | Glass, Speedometer |
| 83145 | Lens, Meter, NO.1 |
| 83145A | Lens, Meter, NO.2 |
| 83145B | Lens, Meter, NO.3 |
| 83145C | Lens, Meter, NO.4 |
| 83145D | Lens, Meter, NO.5 |
| 83145W | Back-up Resist Assy |
| 83146 | Grommet, Meter Glass |
| 83180 | Detector Assy, Revolution |
| 83181A | Sensor, Speedometer |
| 83181B | Ring, O (FOR SPEEDOMETER SENSOR) |
| 83189 | Bracket, Meter |
| 83242 | Tachometer Assy, Engine |
| 83243A | Gauge Sub-assy, Fuel Receiver |
| 83244 | Gauge Sub-assy, Water Temperature Receiver |
| 83245 | Gauge Sub-assy, Volt |
| 83246 | Gauge, Oil Pressure Receiver |
| 83247 | Plate, Meter Circuit |
| 83390A | Switch Assy, Vacuum(FOR ECONOMETER) |
| 83390B | Hose, Vacuum(FOR ECONOMETER) |
| 83399B | Bracket, Vacuum Switch |
| 83550B | Union OR Way, ED Monitor Gage |
| 83710 | Cable Assy, Speedometer Drive, NO.1 |
| 83890 | Clinometer Assy |
| 83910 | Clock Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
