Toyota Hilux (JPP)
1988-08 → 1997-08 · chassis RN1##,YN85,90,1##,LN85,90,1##,VZN130,KZN130 · catalogue 671550 · Europe
Discontinued model
Data version 1998-04
Headlamp Cleaner

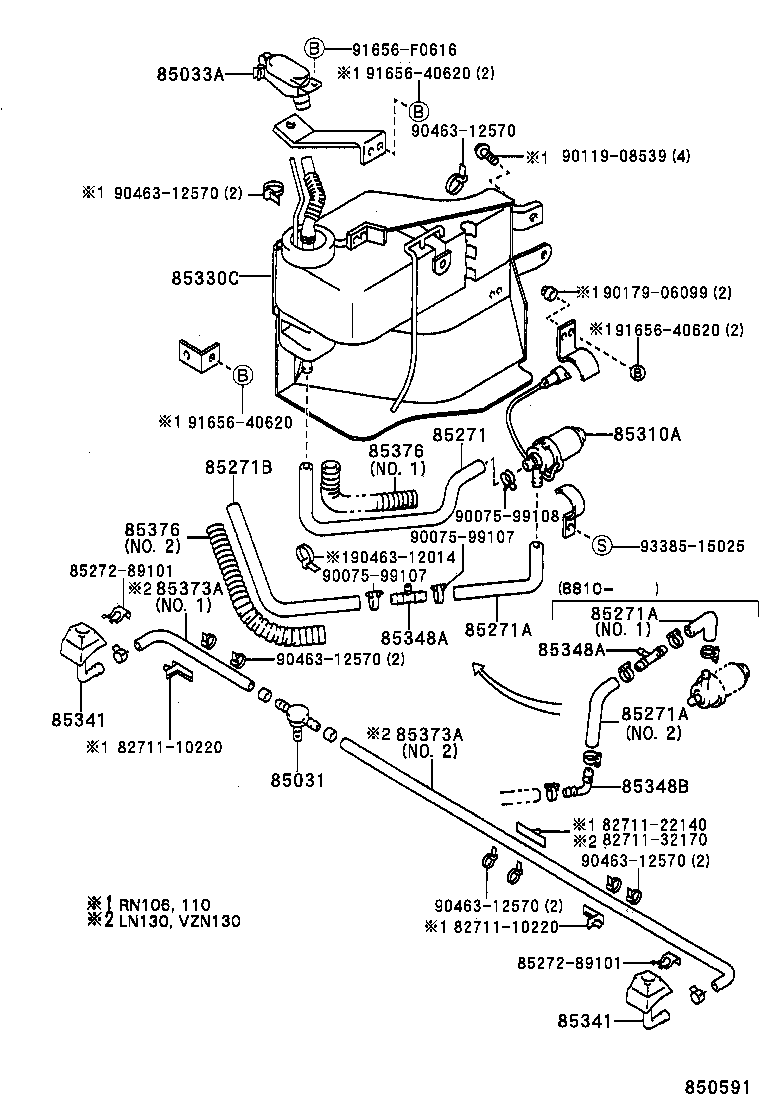

15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85031 | Valve, Headlamp Cleaner Washer Hose |
| 85033A | Cap Sub-assy, Washer |
| 85271 | Hose, Headlamp Cleaner, NO.1 |
| 85271A | Hose, Headlamp Cleaner, NO.2 |
| 85271B | Hose, Headlamp Cleaner, NO.3 |
| 85310A | Motor And Pump Assy, Headlamp Cleaner Washer |
| 85330C | Jar Assy, Headlamp Cleaner Washer |
| 85332A | Cap, Headlamp Cleaner Washer Jar |
| 85336C | Packing, Headlamp Cleaner Motor |
| 85341 | Nozzle, Headlamp Cleaner Washer |
| 85348A | Joint, Headlamp Cleaner Hose, NO.1 |
| 85348B | Joint, Headlamp Cleaner Hose, NO.2 |
| 85361U | Bracket, Headlamp Cleaner Washer |
| 85373A | Hose, Headlamp Cleaner Washer (FROM JOINT TO NOZZLE) |
| 85376 | Protector, Headlamp Cleaner Hose, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
