Toyota Fortuner
2020-06 → 2021-08 · chassis GUN156,TGN156 · catalogue 6715C0 · Europe
Supported model
Data version 2020-04

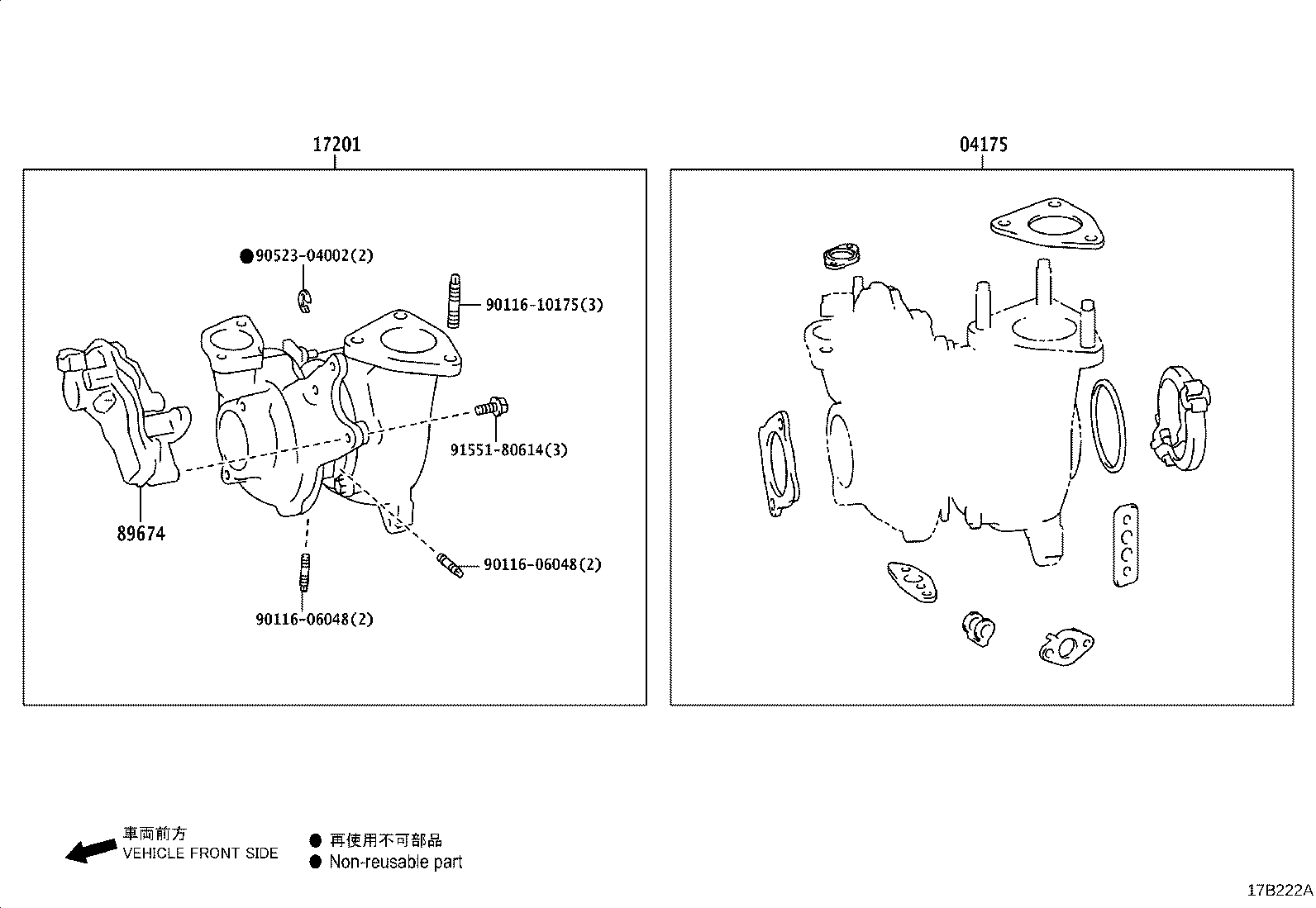

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04175 — Gasket Kit, Turbocharger | ||||
| 04175-0E060 |
Gasket Kit, Turbocharger
2020-06 → 2021-08
ended
|
1GDFTV GUN156 | — | |
| 17201 — Turbocharger Sub-assy | ||||
| 17201-11120 |
Turbocharger Sub-assy
2020-06 → 2021-08
ended
|
1GDFTV GUN156 | — | |
| 89674 — Motor, Turbocharger Variable Nozzle | ||||
| 89674-71021 |
Motor, Turbocharger Variable Nozzle
2020-06 → 2021-08
ended
|
GUN156 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
