Toyota Fortuner
2020-06 → 2021-08 · chassis GUN156,TGN156 · catalogue 6715C0 · Europe
Supported model
Data version 2020-04

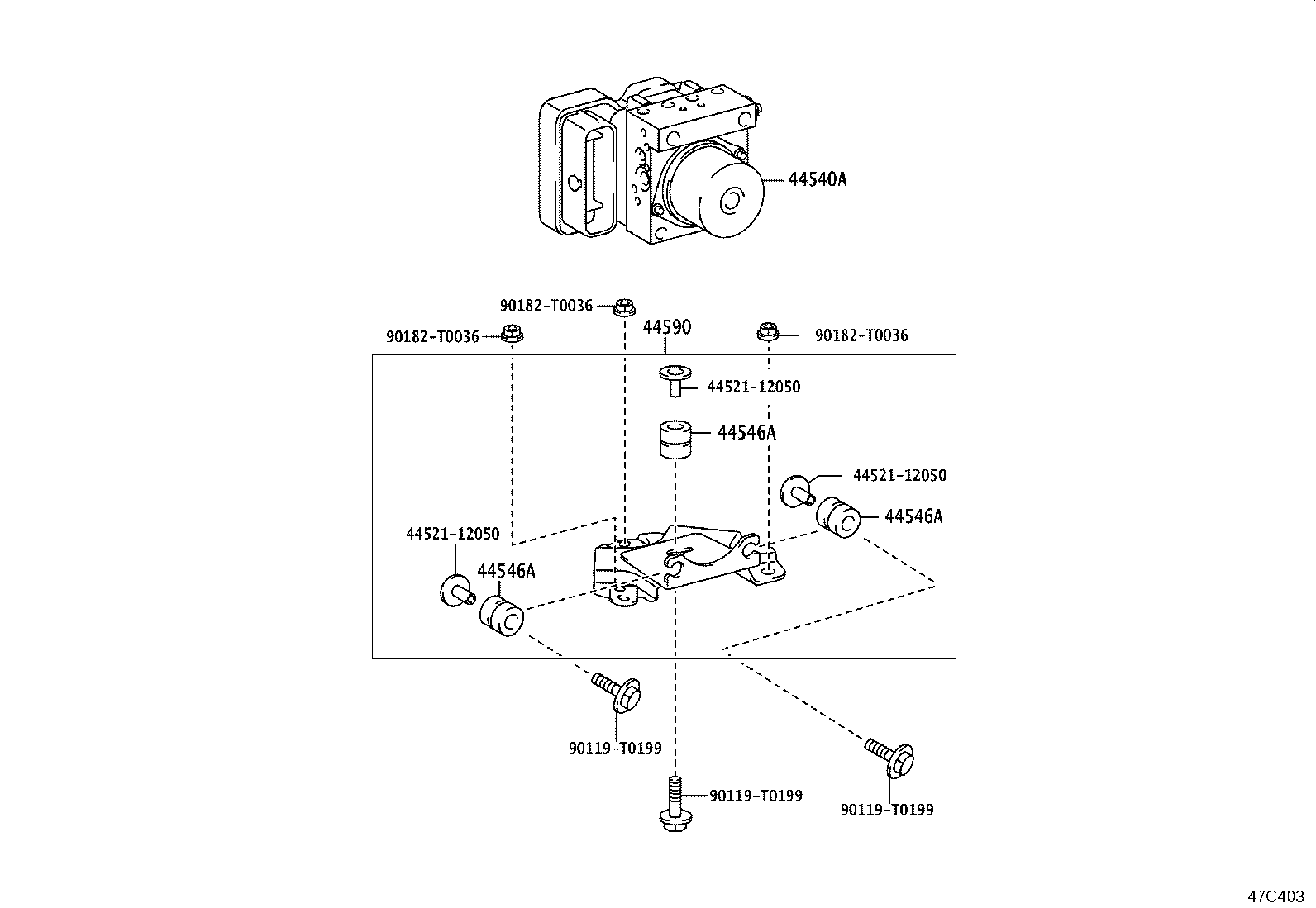

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44540A — Actuator Assy, Vsc | ||||
| 44050-71D20 note |
Actuator Assy, Vsc
2020-06 → 2021-08
ended
|
GUN156 | — | |
| 44050-71D40 note |
Actuator Assy, Vsc
2020-06 → 2021-08
ended
|
GUN156 | — | |
| 44050-71D70 |
Actuator Assy, Vsc
2020-06 → 2021-08
ended
|
GUN156,TGN156 | — | |
| 44050-71D90 note |
Actuator Assy, Vsc
2020-06 → 2021-08
ended
|
GUN156,TGN156 6FC | — | |
| 44546A — Cushion, Brake Actuator Bolt | ||||
| 44546-0K010 note |
Cushion, Brake Actuator Bolt
2020-06 → 2021-08
ended
|
GUN156,TGN156 | — | |
| 44546-12120 note |
Cushion, Brake Actuator Bolt
2020-06 → 2021-08
ended
|
GUN156,TGN156 | — | |
| 44590 — Bracket Assy, Brake Actuator | ||||
| 44590-0K200 |
Bracket Assy, Brake Actuator
2020-06 → 2021-08
ended
|
GUN156,TGN156 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
