Toyota Fortuner
2020-06 → 2021-08 · chassis GUN156,TGN156 · catalogue 6715C0 · Europe
Supported model
Data version 2020-04

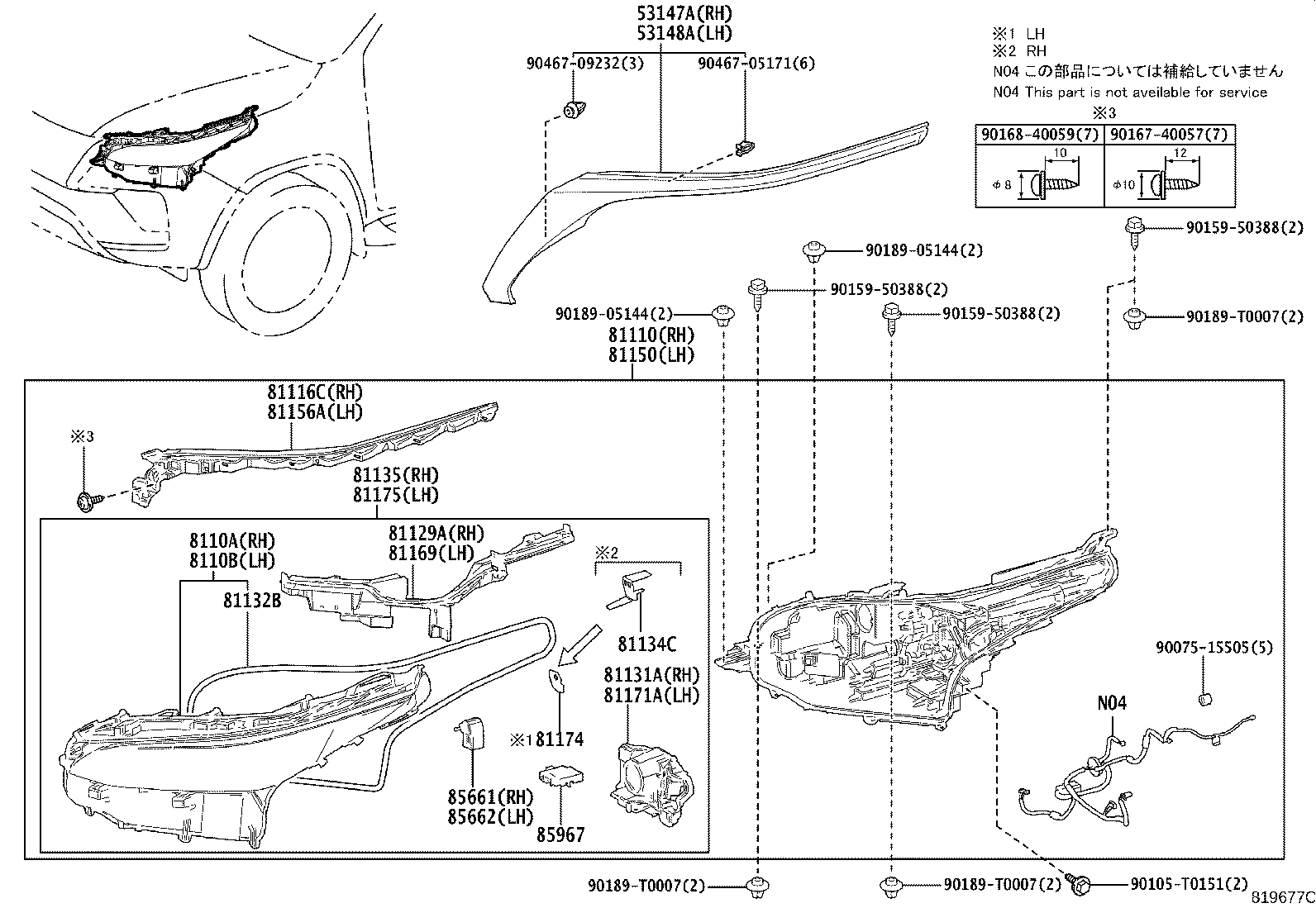

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53147A — Garnish, Headlamp Ornament, RH | ||||
| 53147-0K010 |
Garnish, Headlamp Ornament, RH
2020-06 → 2021-08
ended
|
TGN156 L | — | |
| 53147-0K030 |
Garnish, Headlamp Ornament, RH
2020-06 → 2021-08
ended
|
TGN156 S | — | |
| 53147-0K040 |
Garnish, Headlamp Ornament, RH
2020-06 → 2021-08
ended
|
GUN156,TGN156 6FC | — | |
| 53148A — Garnish, Headlamp Ornament, LH | ||||
| 53148-0K010 |
Garnish, Headlamp Ornament, LH
2020-06 → 2021-08
ended
|
TGN156 L | — | |
| 53148-0K030 |
Garnish, Headlamp Ornament, LH
2020-06 → 2021-08
ended
|
TGN156 S | — | |
| 53148-0K040 |
Garnish, Headlamp Ornament, LH
2020-06 → 2021-08
ended
|
GUN156,TGN156 6FC | — | |
| 8110A — Lens Sub-assy, Headlamp, RH | ||||
| 8110A-0KL30 |
Lens Sub-assy, Headlamp, RH
2020-06 → 2021-08
ended
|
GUN156,TGN156 L,S | — | |
| 8110A-0KL40 |
Lens Sub-assy, Headlamp, RH
2020-06 → 2021-08
ended
|
GUN156 H | — | |
| 8110B — Lens Sub-assy, Headlamp, LH | ||||
| 8110B-0KL30 |
Lens Sub-assy, Headlamp, LH
2020-06 → 2021-08
ended
|
GUN156,TGN156 L,S | — | |
| 8110B-0KL40 |
Lens Sub-assy, Headlamp, LH
2020-06 → 2021-08
ended
|
GUN156 H | — | |
| 81110 — Headlamp Assy, RH | ||||
| 81110-0KL60 |
Headlamp Assy, RH
2020-06 → 2021-08
ended
|
GUN156,TGN156 L,S | — | |
| 81110-0KL70 |
Headlamp Assy, RH
2020-06 → 2021-08
ended
|
GUN156 H | — | |
| 81116C — Bracket, Headlamp, RH | ||||
| 81116-0KL30 |
Bracket, Headlamp, RH
2020-06 → 2021-08
ended
|
GUN156,TGN156 | — | |
| 81129A — Reflector, Headlamp, RH | ||||
| 81129-0KL30 |
Reflector, Headlamp, RH
2020-06 → 2021-08
ended
|
GUN156,TGN156 L,S | — | |
| 81129-0KL40 |
Reflector, Headlamp, RH
2020-06 → 2021-08
ended
|
GUN156 H | — | |
| 81131A — Unit, Headlamp, RH | ||||
| 81130-0KL60 |
Unit, Headlamp, RH
2020-06 → 2021-08
ended
|
GUN156,TGN156 | — | |
| 81132B — Gasket, Headlamp Lens | ||||
| 81132-48C30 |
Gasket, Headlamp Lens
2020-06 → 2021-08
ended
|
GUN156,TGN156 | — | |
| 81134C — Gasket, Headlamp Body, RH | ||||
| 81134-0KL40 |
Gasket, Headlamp Body, RH
2020-06 → 2021-08
ended
|
GUN156 H | — | |
| 81135 — Unit Assy, Headlamp, RH | ||||
| 81145-0KL60 |
Unit Assy, Headlamp, RH
2020-06 → 2021-08
ended
|
GUN156,TGN156 L,S | — | |
| 81145-0KL70 |
Unit Assy, Headlamp, RH
2020-06 → 2021-08
ended
|
GUN156 H | — | |
| 81150 — Headlamp Assy, LH | ||||
| 81150-0KL60 |
Headlamp Assy, LH
2020-06 → 2021-08
ended
|
GUN156,TGN156 L,S | — | |
| 81150-0KL70 |
Headlamp Assy, LH
2020-06 → 2021-08
ended
|
GUN156 H | — | |
| 81156A — Bracket, Headlamp, LH | ||||
| 81156-0KL30 |
Bracket, Headlamp, LH
2020-06 → 2021-08
ended
|
GUN156,TGN156 | — | |
| 81169 — Reflector, Headlamp, LH | ||||
| 81169-0KL30 |
Reflector, Headlamp, LH
2020-06 → 2021-08
ended
|
GUN156,TGN156 L,S | — | |
| 81169-0KL40 |
Reflector, Headlamp, LH
2020-06 → 2021-08
ended
|
GUN156 H | — | |
| 81171A — Unit, Headlamp, LH | ||||
| 81170-0KL60 |
Unit, Headlamp, LH
2020-06 → 2021-08
ended
|
GUN156,TGN156 | — | |
| 81174 — Gasket, Headlamp Body, LH | ||||
| 81174-0KL40 |
Gasket, Headlamp Body, LH
2020-06 → 2021-08
ended
|
GUN156 H | — | |
| 81175 — Unit Assy, Headlamp, LH | ||||
| 81185-0KL60 |
Unit Assy, Headlamp, LH
2020-06 → 2021-08
ended
|
GUN156,TGN156 L,S | — | |
| 81185-0KL70 |
Unit Assy, Headlamp, LH
2020-06 → 2021-08
ended
|
GUN156 H | — | |
| 85661 — Motor, Headlamp Leveling, RH | ||||
| 85661-48050 |
Motor, Headlamp Leveling, RH
2020-06 → 2021-08
ended
|
GUN156,TGN156 | — | |
| 85662 — Motor, Headlamp Leveling, LH | ||||
| 85661-48050 |
Motor, Headlamp Leveling, LH
2020-06 → 2021-08
ended
|
GUN156,TGN156 | — | |
| 85967 — Computer, Light Control | ||||
| 85967-12050 |
Computer, Light Control
2020-06 → 2021-08
ended
|
GUN156,TGN156 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
