Toyota Fortuner

2020-06 → 2021-08 · chassis GUN156,TGN156 · catalogue 6715C0 · Europe

Supported model Data version 2020-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

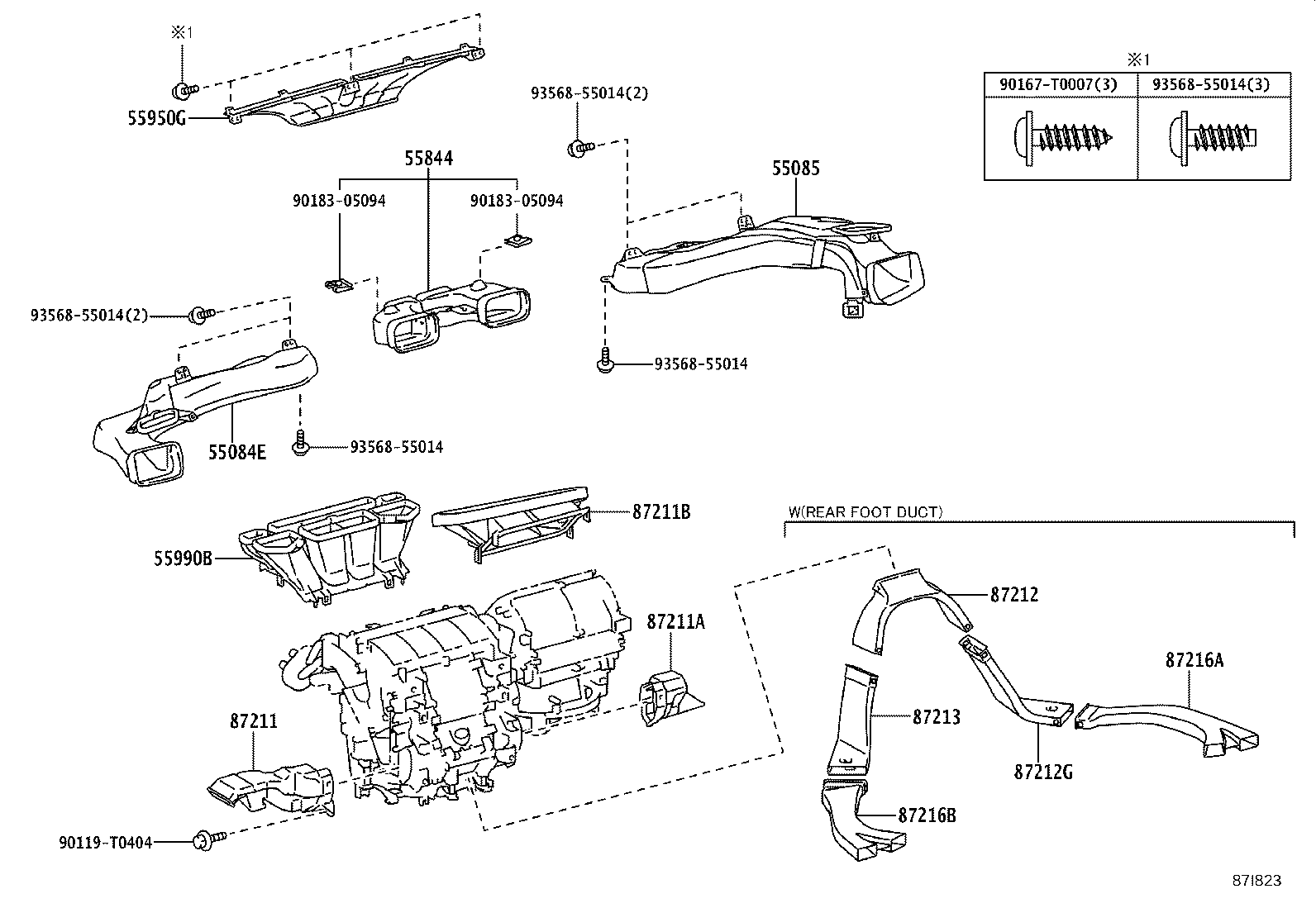

Exploded illustration 87I823 90119T0404 — not listed in this catalogue 55085 — DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 (2 parts) 87211B — DUCT, AIR, NO.3 (1 parts) 55084E — DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 (1 parts) 55950G — NOZZLE ASSY, DEFROSTER (1 parts) 55990B — NOZZLE ASSY, DEFROSTER, LOWER (1 parts) 87211 — DUCT, AIR, NO.1 (1 parts) 87211A — DUCT, AIR, NO.2 (1 parts) 87212G — DUCT, AIR, REAR NO.3 (1 parts) 87216A — DUCT, AIR, REAR NO.5 (1 parts) 87212 — DUCT, AIR, REAR NO.1 (1 parts) 87213 — DUCT, AIR, REAR NO.2 (1 parts) 87216B — DUCT, AIR, REAR NO.4 (1 parts) 9356855014 — not listed in this catalogue 9356855014 — not listed in this catalogue 9356855014 — not listed in this catalogue 9356855014 — not listed in this catalogue 9018305094 — not listed in this catalogue 55844 — DUCT, HEATER TO REGISTER, NO.2 (1 parts) 9018305094 — not listed in this catalogue 9356855014 — not listed in this catalogue 90167T0007 — not listed in this catalogue
87I823 · 13 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
14 parts on this figure
Part number Description Fitment Price
55084E — Duct Sub-assy, Heater TO Register, NO.1
55084-KK040 Duct Sub-assy, Heater TO Register, NO.1
2020-06 → 2021-08 ended
GUN156,TGN156 —
55085 — Duct Sub-assy, Heater TO Register, NO.2
55085-KK060 Duct Sub-assy, Heater TO Register, NO.2
2020-06 → 2021-08 ended
GUN156,TGN156 6FC —
55085-KK090 Duct Sub-assy, Heater TO Register, NO.2
2020-06 → 2021-08 ended
TGN156 L —
55844 — Duct, Heater TO Register, NO.2
55844-KK060 Duct, Heater TO Register, NO.2
2020-06 → 2021-08 ended
GUN156,TGN156 —
55950G — Nozzle Assy, Defroster
55950-KK030 Nozzle Assy, Defroster
2020-06 → 2021-08 ended
GUN156,TGN156 —
55990B — Nozzle Assy, Defroster, Lower
55990-KK020 Nozzle Assy, Defroster, Lower
2020-06 → 2021-08 ended
GUN156,TGN156 —
87211 — Duct, Air, NO.1
87211-0K760 Duct, Air, NO.1
2020-06 → 2021-08 ended
GUN156,TGN156 —
87211A — Duct, Air, NO.2
87211-0K780 Duct, Air, NO.2
2020-06 → 2021-08 ended
GUN156,TGN156 —
87211B — Duct, Air, NO.3
87211-0KA80 Duct, Air, NO.3
2020-06 → 2021-08 ended
GUN156,TGN156 —
87212 — Duct, Air, Rear NO.1
87214-KK010 Duct, Air, Rear NO.1
2020-06 → 2021-08 ended
GUN156,TGN156 —
87212G — Duct, Air, Rear NO.3
87212-KK010 Duct, Air, Rear NO.3
2020-06 → 2021-08 ended
GUN156,TGN156 —
87213 — Duct, Air, Rear NO.2
87213-KK010 Duct, Air, Rear NO.2
2020-06 → 2021-08 ended
GUN156,TGN156 —
87216A — Duct, Air, Rear NO.5
87215-KK010 Duct, Air, Rear NO.5
2020-06 → 2021-08 ended
GUN156,TGN156 —
87216B — Duct, Air, Rear NO.4
87216-KK010 Duct, Air, Rear NO.4
2020-06 → 2021-08 ended
GUN156,TGN156 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
