Toyota Fortuner

2020-06 → 2021-08 · chassis GUN156,TGN156 · catalogue 6715C0 · Europe

Supported model Data version 2020-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

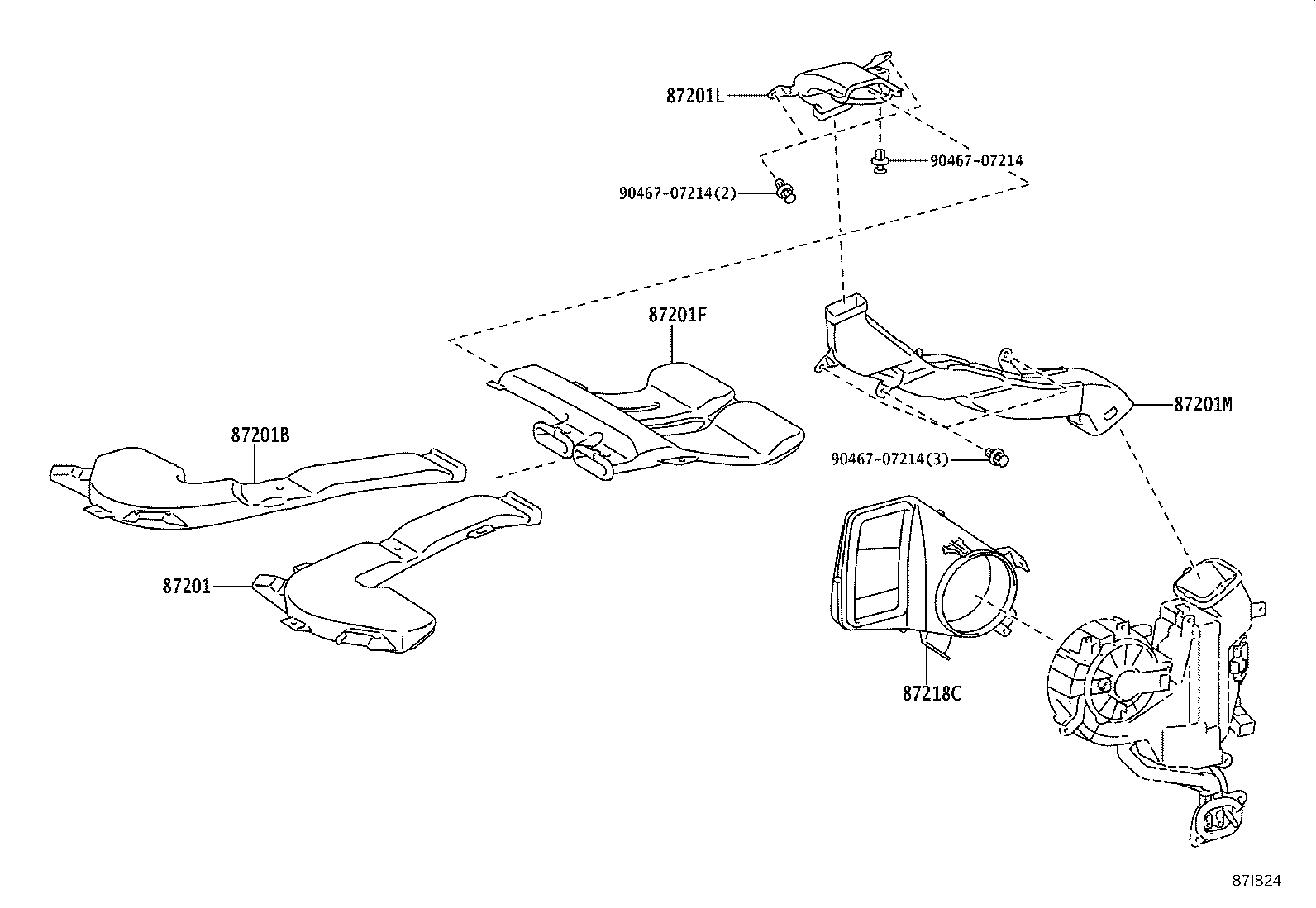

Exploded illustration 87I824 87201B — DUCT SUB-ASSY, AIR, NO.2 (1 parts) 87201 — DUCT SUB-ASSY, AIR, NO.1 (1 parts) 87218C — DUCT, AIR, REAR NO.6 (1 parts) 87201L — DUCT SUB-ASSY, AIR, NO.4 (1 parts) 87201M — DUCT SUB-ASSY, AIR, NO.5 (1 parts) 87201F — DUCT SUB-ASSY, AIR, NO.3 (1 parts) 9046707214 — not listed in this catalogue 9046707214 — not listed in this catalogue 9046707214 — not listed in this catalogue
87I824 · 6 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
6 parts on this figure
Part number Description Fitment Price
87201 — Duct Sub-assy, Air, NO.1
87201-0K100 Duct Sub-assy, Air, NO.1
2020-06 → 2021-08 ended
GUN156,TGN156 —
87201B — Duct Sub-assy, Air, NO.2
87201-0K050 Duct Sub-assy, Air, NO.2
2020-06 → 2021-08 ended
GUN156,TGN156 —
87201F — Duct Sub-assy, Air, NO.3
87202-0K050 Duct Sub-assy, Air, NO.3
2020-06 → 2021-08 ended
GUN156,TGN156 —
87201L — Duct Sub-assy, Air, NO.4
62971-0K050 Duct Sub-assy, Air, NO.4
2020-06 → 2021-08 ended
GUN156,TGN156 —
87201M — Duct Sub-assy, Air, NO.5
62972-0K050 Duct Sub-assy, Air, NO.5
2020-06 → 2021-08 ended
GUN156,TGN156 —
87218C — Duct, Air, Rear NO.6
88566-0K540 Duct, Air, Rear NO.6
2020-06 → 2021-08 ended
GUN156,TGN156 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
