Toyota Fortuner
2020-06 → 2021-08 · chassis GUN156,TGN156 · catalogue 6715C0 · Europe
Supported model
Data version 2020-04

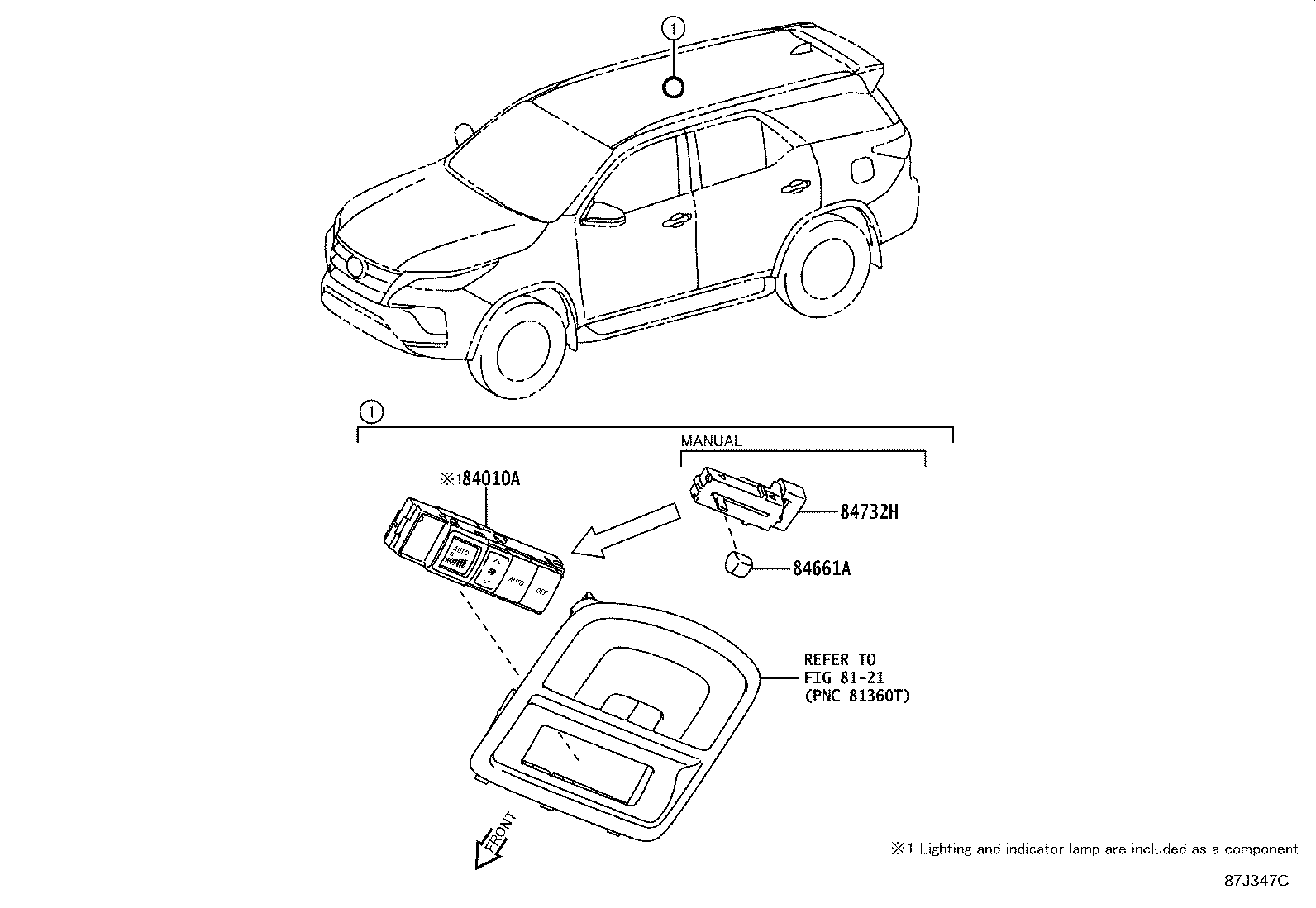

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84010A — Control & Panel Assy, Integration | ||||
| 84010-0K060-B0 note |
Control & Panel Assy, Integration
2020-06 → 2021-08
ended
|
GUN156 | — | |
| 84010-0K060-B0 note |
Control & Panel Assy, Integration
2020-06 → 2021-08
ended
|
TGN156 S | — | |
| 84661A — Knob, Cooler Control Switch | ||||
| 84661-0K010-B0 note |
Knob, Cooler Control Switch
2020-06 → 2021-04
ended
|
TGN156 S | — | |
| 84661-0K010-B0 note |
Knob, Cooler Control Switch
2020-06 → 2021-08
ended
|
TGN156 | — | |
| 84732H — Switch, Heater Blower | ||||
| 84732-0K010 note |
Switch, Heater Blower
2020-06 → 2021-04
ended
|
TGN156 S | — | |
| 84732-0K010 |
Switch, Heater Blower
2020-06 → 2021-08
ended
|
TGN156 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
