Toyota Fortuner

2020-06 → 2021-08 · chassis GUN156,TGN156 · catalogue 6715C0 · Europe

Supported model Data version 2020-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

11 part groups · 3 illustrations

Illustrations

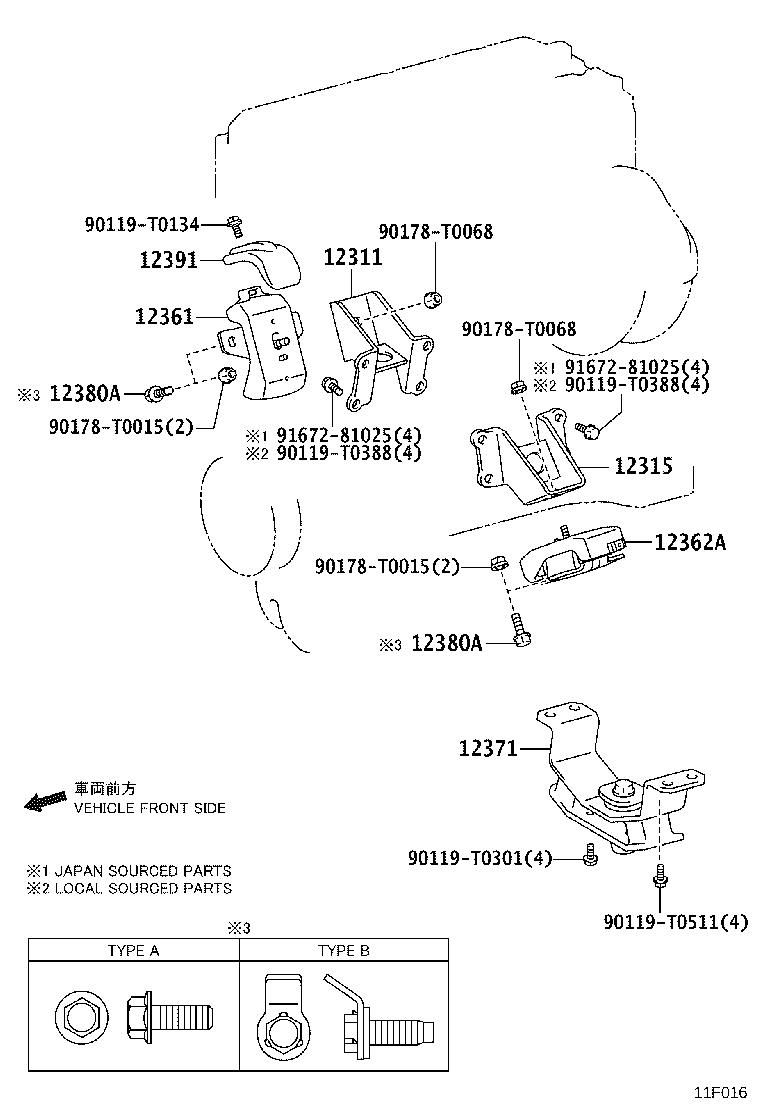

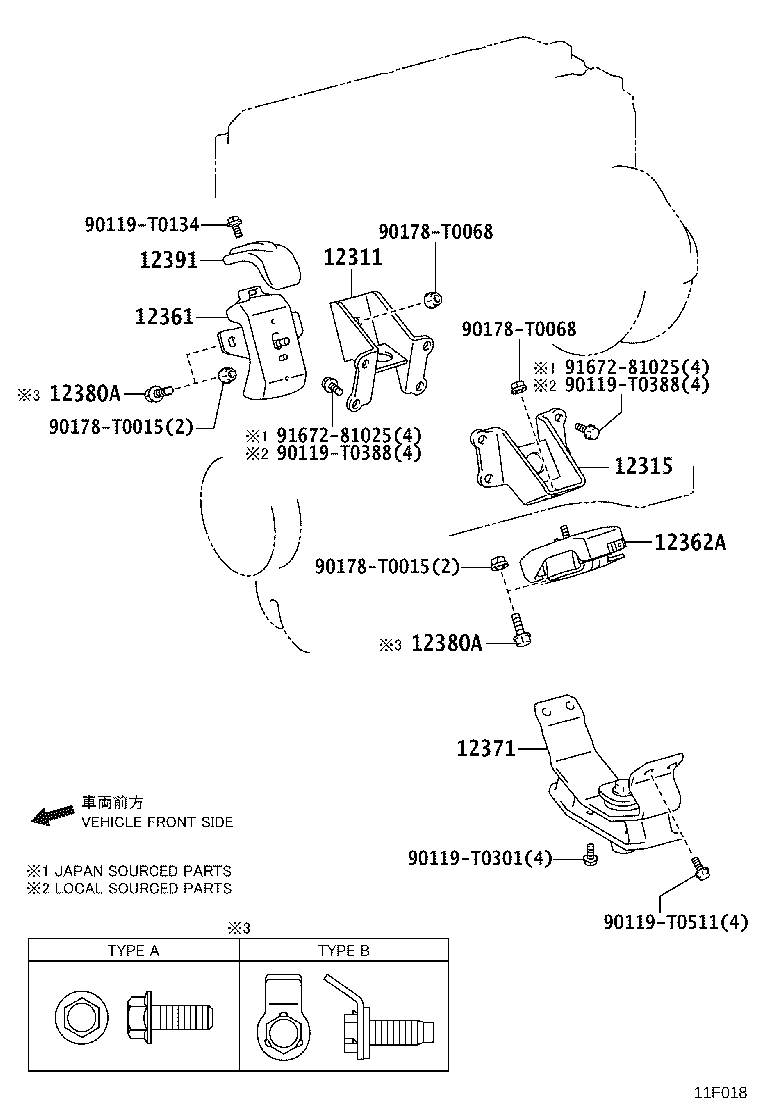

Figure 11E900B 11E900B 2020-06 → — Figure 11F018 11F018 2020-06 → — Figure 11F016 11F016 2020-06 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12361 Insulator, Engine Mounting, Front
12362A Insulator, Engine Mounting, Front LH
12371 Insulator, Engine Mounting, Rear NO.1
12371A Insulator, Engine Mounting, Rear
12380A Bolt(FOR ENGINE MOUNTING INSURATOR)
12381 Stabilizer, Engine Mounting
12391 Insulator, Engine Mounting Front, Heat, RH
12501 Bracket Sub-assy, Alternator
12582 Insulator, Cylinder Block, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
