Toyota Fortuner

2020-06 → 2021-08 · chassis GUN156,TGN156 · catalogue 6715C0 · Europe

Supported model Data version 2020-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

93 part groups · 9 illustrations

Illustrations

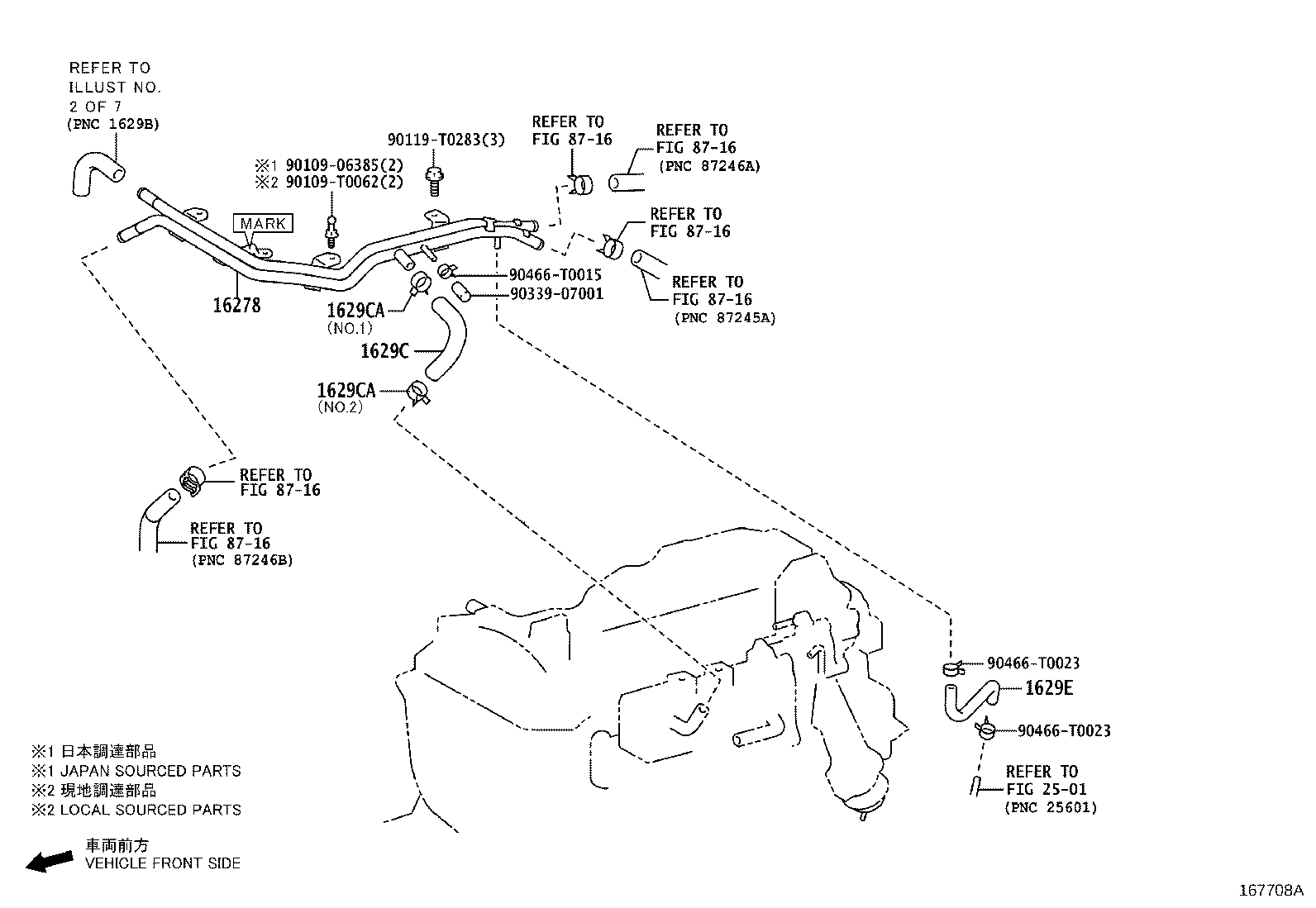

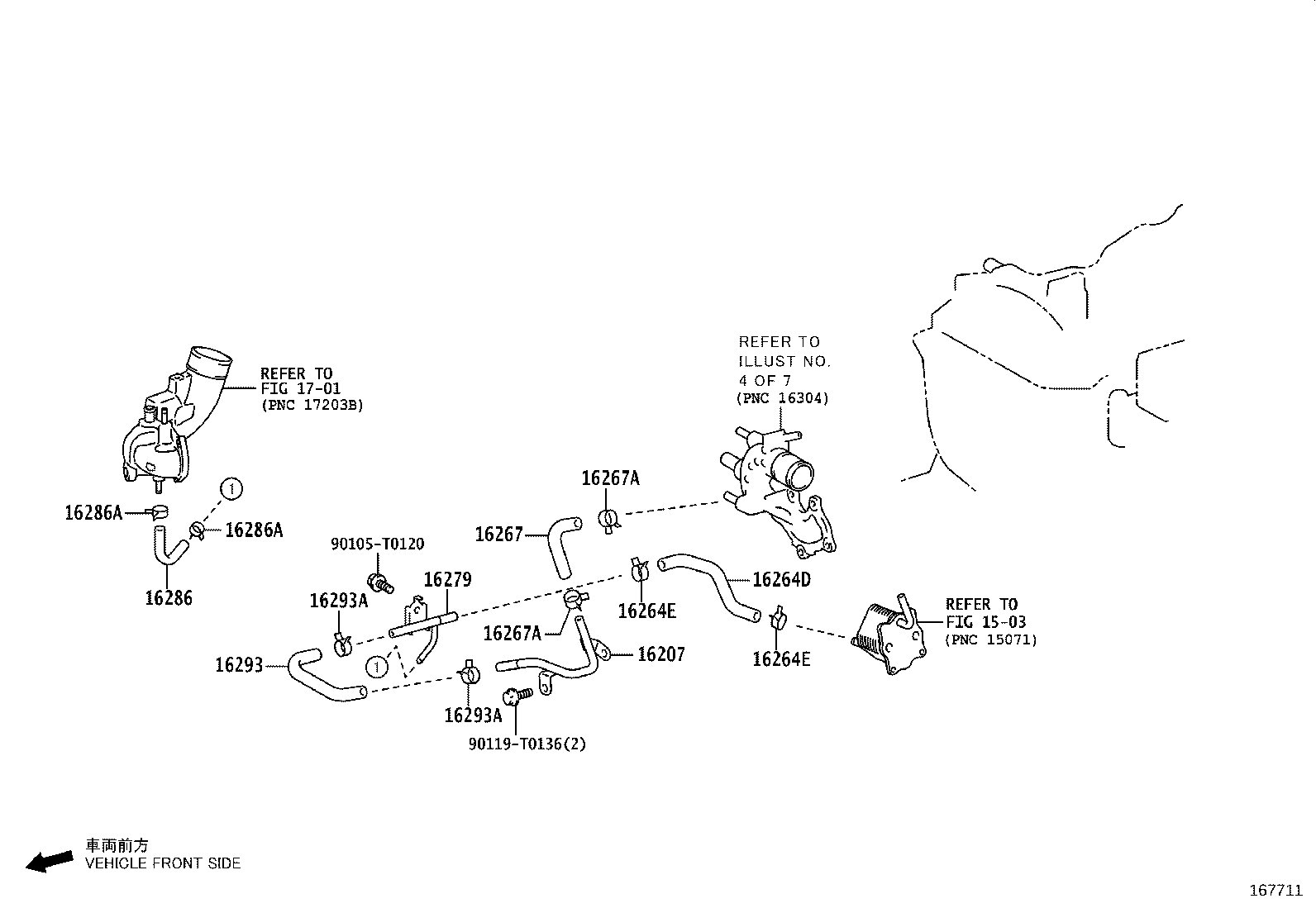

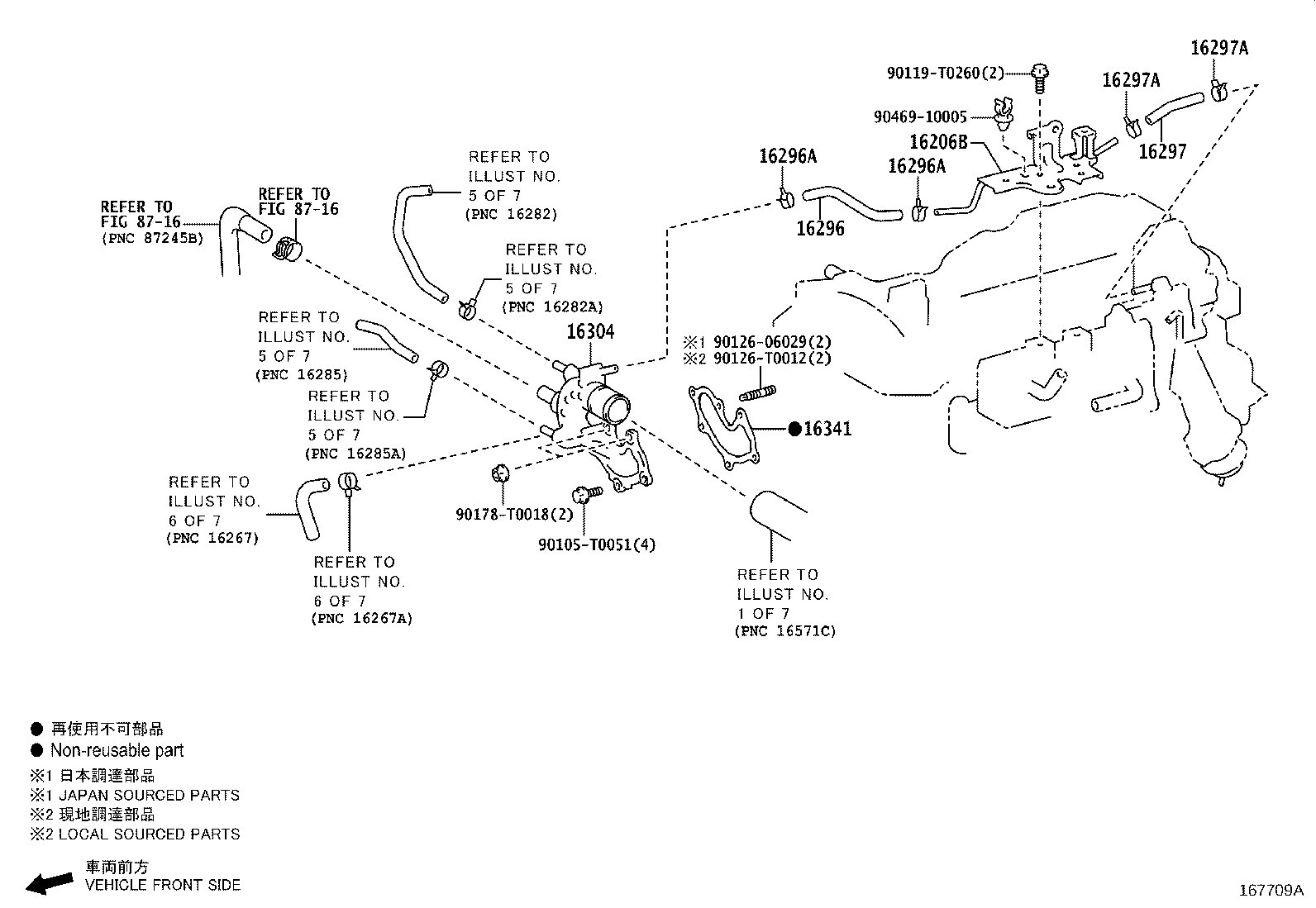

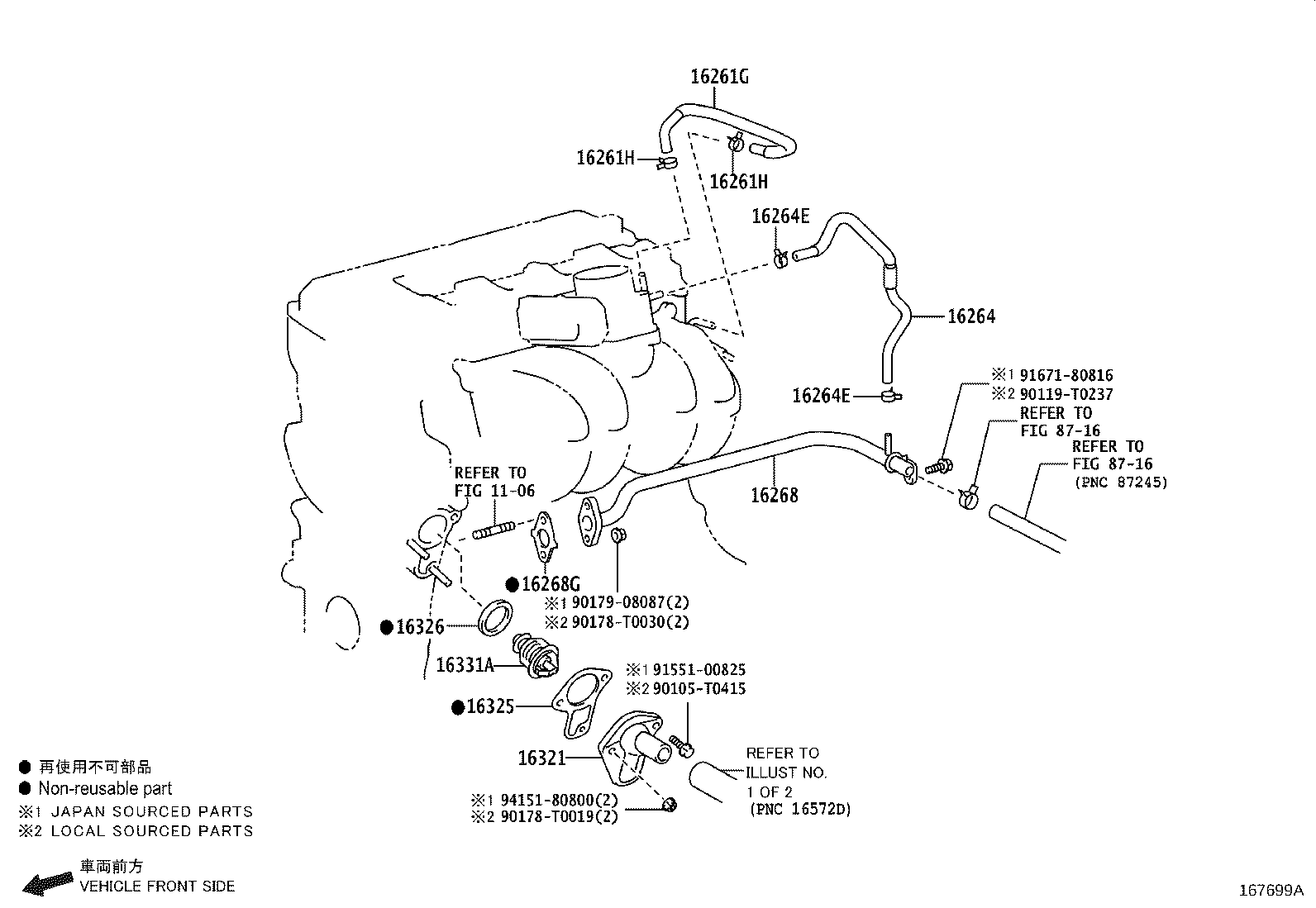

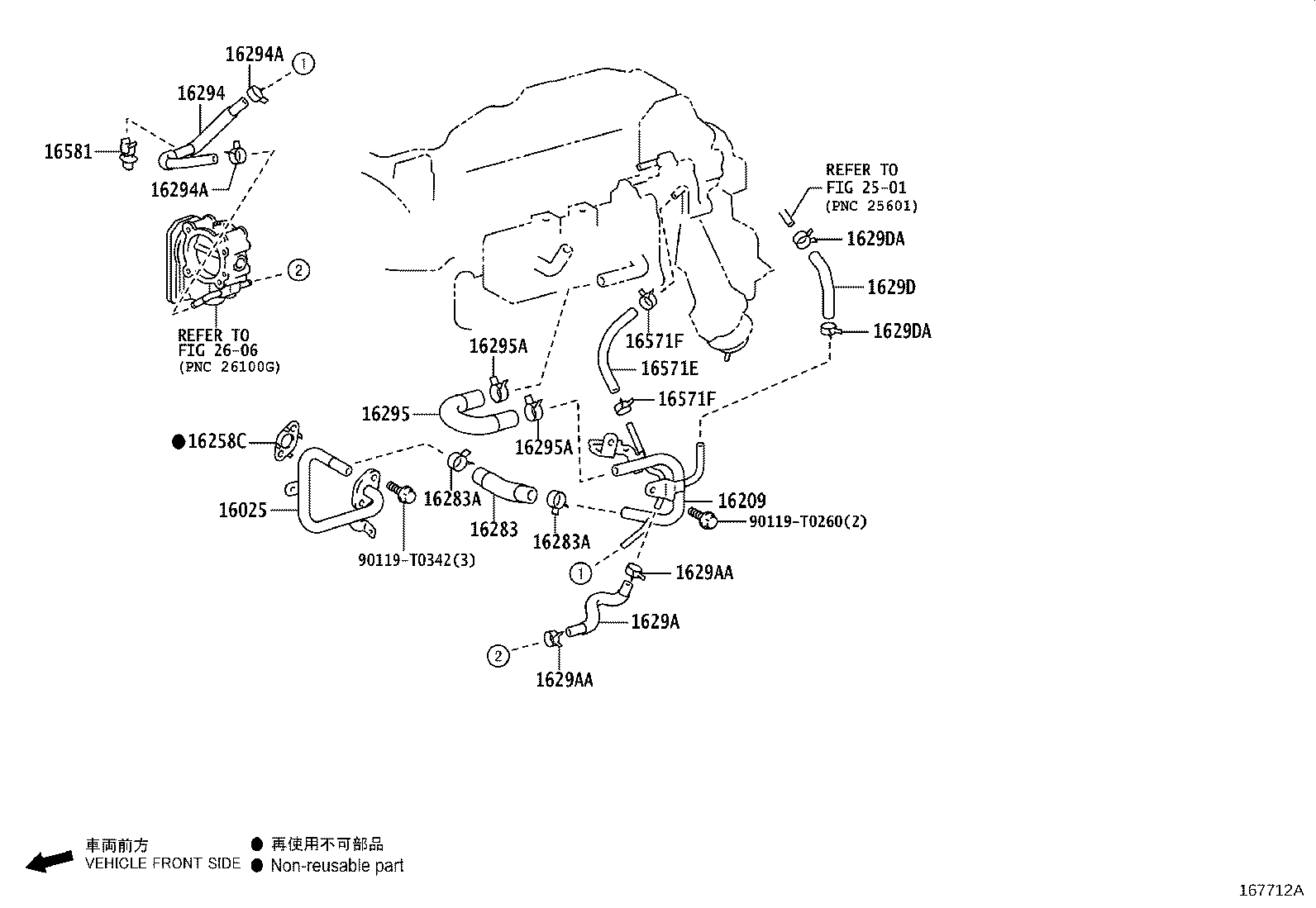

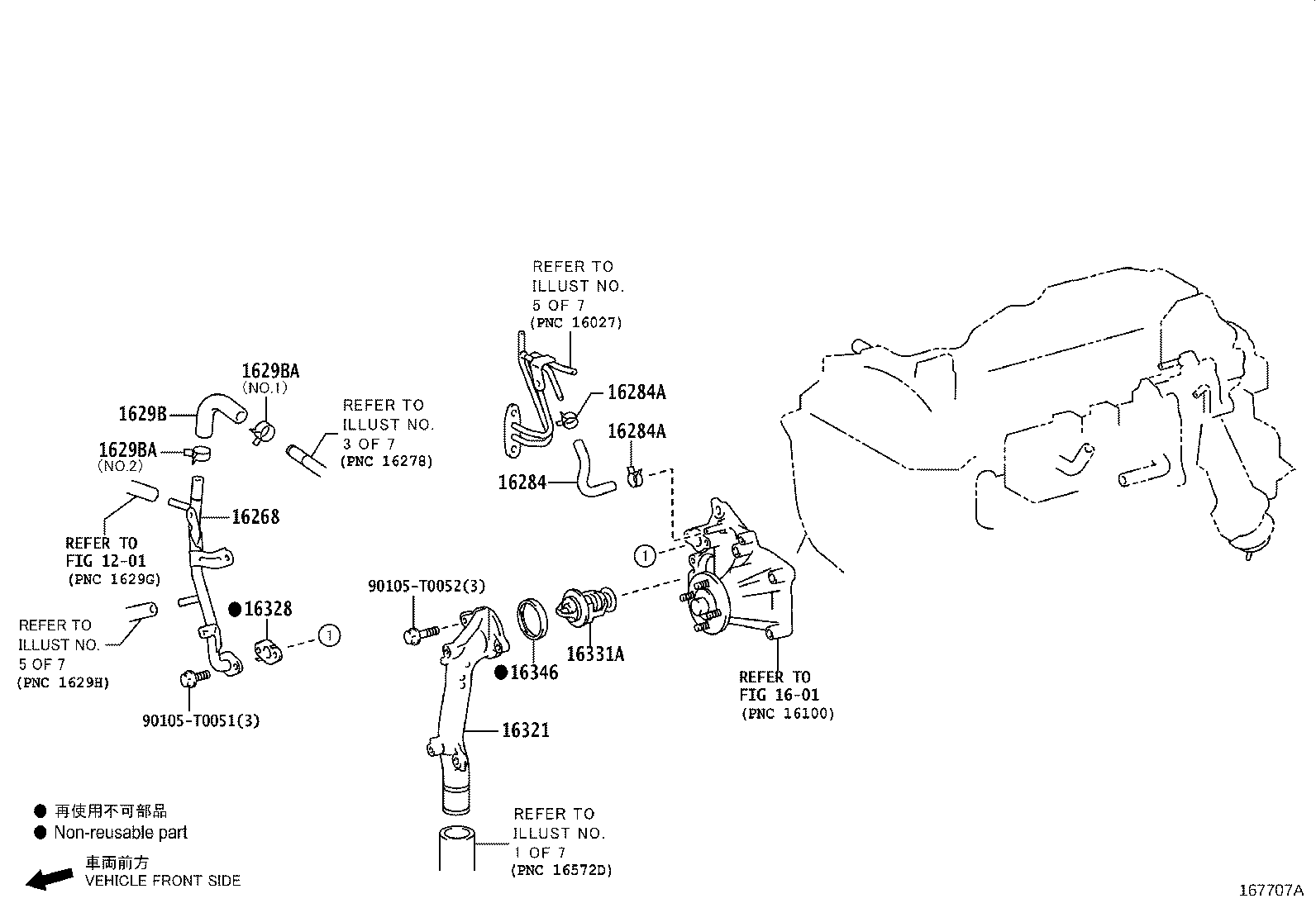

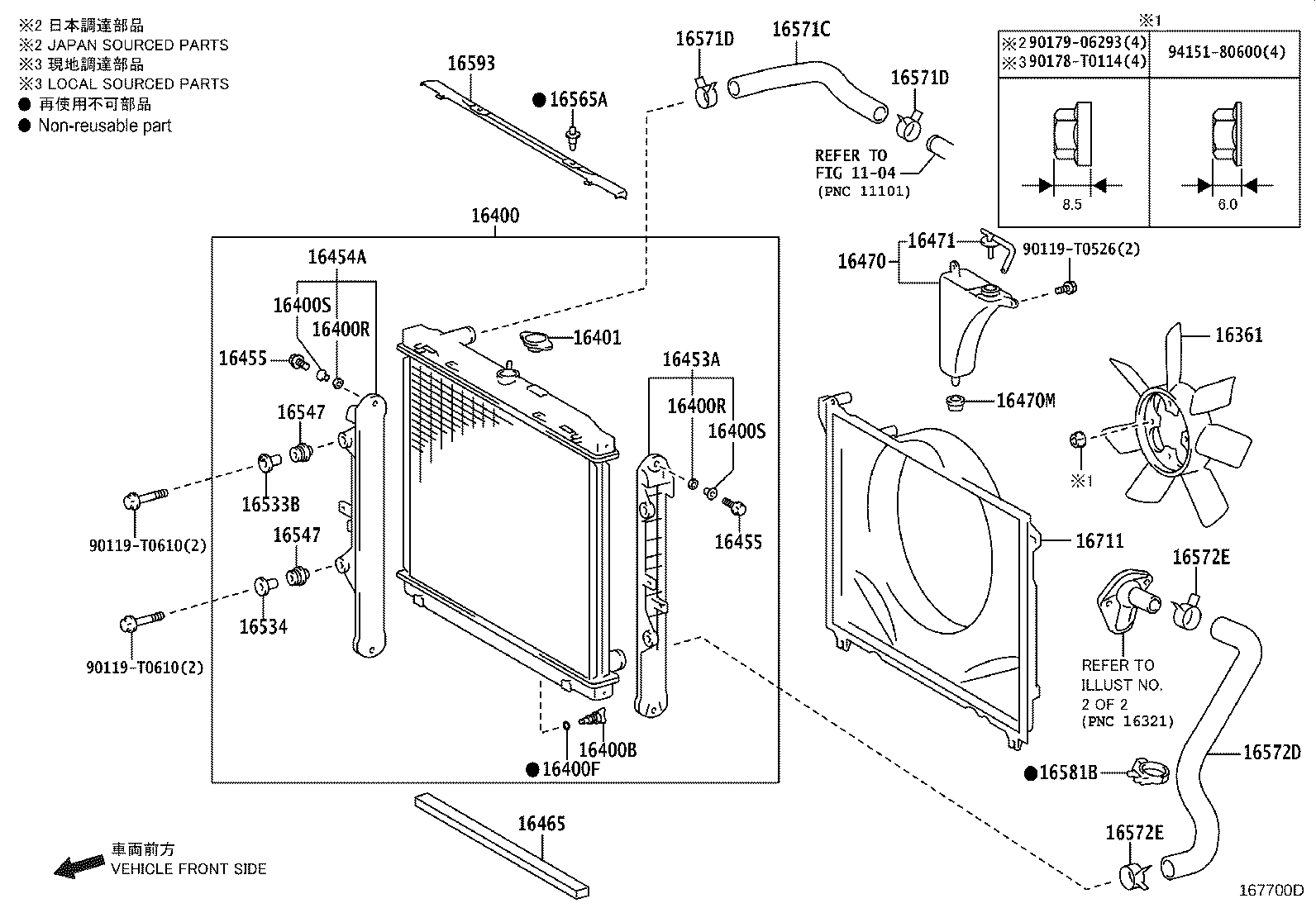

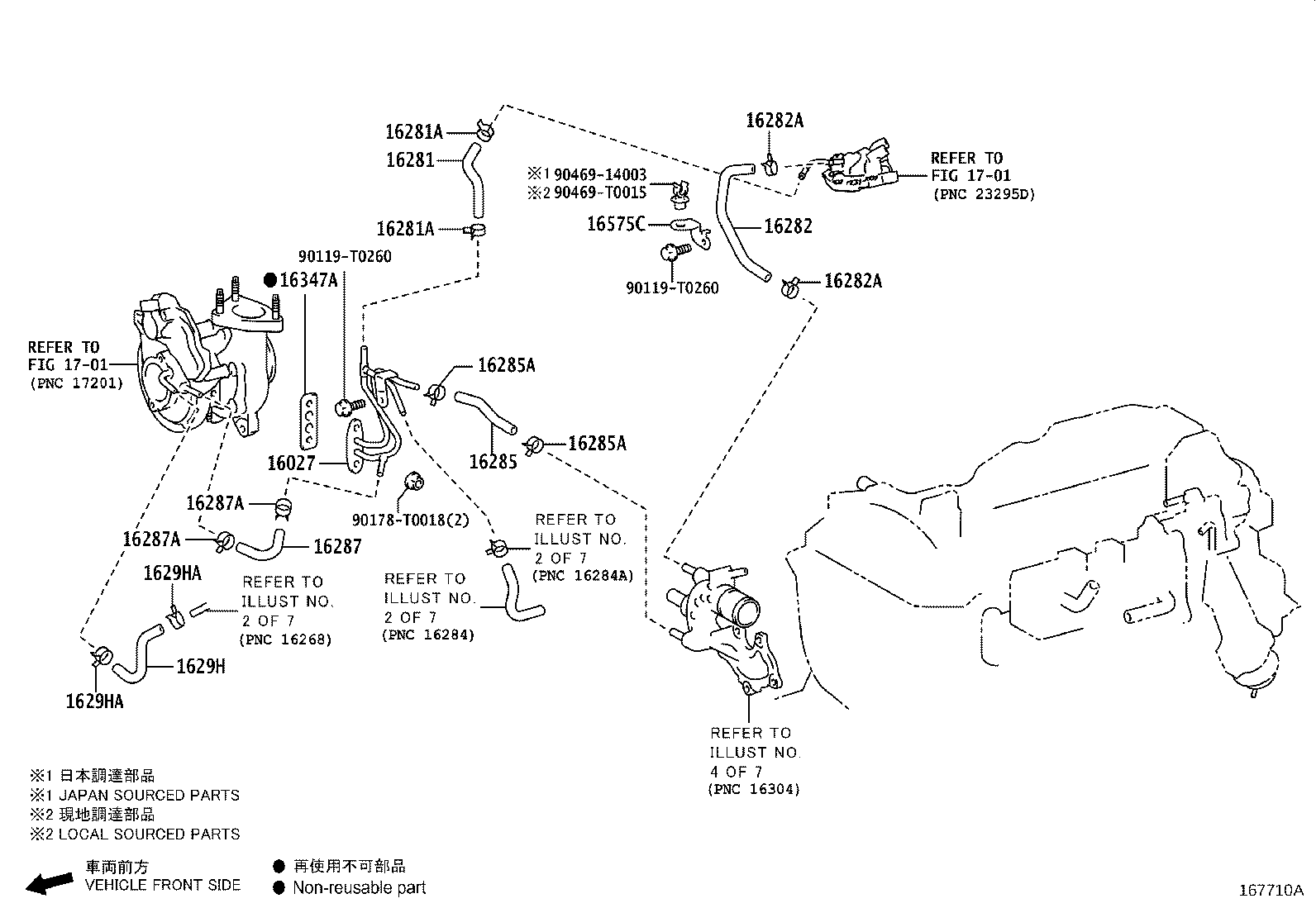

Figure 167706F 167706F 2020-06 → — Figure 167707A 167707A 2020-06 → — Figure 167708A 167708A 2020-06 → — Figure 167709A 167709A 2020-06 → — Figure 167710A 167710A 2020-06 → — Figure 167711 167711 2020-06 → — Figure 167712A 167712A 2020-06 → — Figure 167700D 167700D 2020-06 → — Figure 167699A 167699A 2020-06 → —

Part groups

PNCDescription
16025 Pipe Sub-assy, Water By-pass, NO.5
16027 Pipe Sub-assy, Turbo Water, NO.1
16206B Pipe Sub-assy, Water By-pass, NO.3
16207 Pipe Sub-assy, Water By-pass, NO.2
16209 Pipe Sub-assy, Water By-pass, NO.4
16258C Gasket(FOR WATER BY-PASS PIPE)
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261G Hose, Water By-pass, NO.1
16261H Clip(FOR WATER BY-PASS HOSE NO.1)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16264D Hose, Water By-pass, NO.2
16264E Clip(FOR WATER BY-PASS HOSE NO.2)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16268 Pipe, Water By-pass, NO.1
16268G Gasket(FOR WATER BY-PASS PIPE)
16278 Pipe, Water By-pass, NO.2
16279 Pipe, Water By-pass, NO.3
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16282 Hose, Water By-pass, NO.5
16282A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16283 Hose, Water By-pass, NO.6
16283A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
16284 Hose, Turbo Water, NO.1
16284A Clip(FOR TURBO WATER HOSE NO.1)
16285 Hose, Turbo Water, NO.2
16285A Clip(FOR TURBO WATER HOSE NO.2)
16286 Hose, Turbo Water, NO.3
16286A Clip(FOR TURBO WATER HOSE NO.3)
16287 Hose, Turbo Water, NO.4
16287A Clip(FOR TURBO WATER HOSE NO.4)
16293 Hose, Water By-pass, NO.10
16293A Clip(FOR WATER BY-PASS HOSE NO.10)
16294 Hose, Water By-pass, NO.11
16294A Clip(FOR WATER BY-PASS HOSE NO.11)
16295 Hose, Water By-pass, NO.7
16295A Clip(FOR WATER BY-PASS HOSE NO.7)
16296 Hose, Water By-pass, NO.8
16296A Clip(FOR WATER BY-PASS HOSE NO.8)
16297 Hose, Water By-pass, NO.9
16297A Clip(FOR WATER BY-PASS HOSE NO.9)
1629A Hose, Water By-pass, NO.14
1629AA Clip(FOR WATER BY-PASS HOSE NO.14)
1629B Hose, Water By-pass, NO.15
1629BA Clip(FOR WATER BY-PASS HOSE NO.15)
1629C Hose, Water By-pass, NO.16
1629CA Clip(FOR WATER BY-PASS HOSE NO.16)
1629D Hose, Water By-pass, NO.17
1629DA Clip(FOR WATER BY-PASS HOSE NO.17)
1629E Hose, Water By-pass, NO.18
1629H Hose, Water By-pass, NO.21
1629HA Clip(FOR WATER BY-PASS HOSE NO.21)
16304 Outlet Sub-assy, Water
16321 Inlet, Water
16325 Gasket, Water Inlet Housing, NO.1
16326 Gasket, Water Inlet Housing, NO.2
16328 Gasket, Water Inlet Pipe
16331A Thermostat
16341 Gasket, Water Outlet
16346 Gasket, Thermostat
16347A Gasket(FOR TURBO WATER PIPE)
16361 Fan
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16400R Bushing(FOR RADIATOR)
16400S Collar(FOR RADIATOR)
16401 Cap Sub-assy, Radiator
16453A Plate, Radiator Side Support, RH
16454A Plate, Radiator Side Support, LH
16455 Bolt, Radiator Side Support Plate
16465 Packing, Radiator
16470 Tank Assy, Radiator Reserve
16470M Grommet
16471 Cap Sub-assy, Reserve Tank
16533B Support, Radiator, NO.1
16534 Support, Radiator, NO.2
16547 Bush, Radiator Support, NO.1
16565A Clip
16571C Hose, Radiator, NO.1
16571D Clip, Radiator Hose, NO.1
16571E Hose, Water
16571F Clamp OR Clip(FOR WATER HOSE)
16572D Hose, Radiator, NO.2
16572E Clip, Radiator Hose, NO.2
16575C Bracket, Water Hose Clamp, NO.1
16581 Clamp, Hose(FOR WATER HOSE)
16581B Clamp, Hose(FOR RADIATOR HOSE)
16593 Guide, Radiator Air, NO.1
16711 Shroud, Fan
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
