Toyota Fortuner

2020-06 → 2021-08 · chassis GUN156,TGN156 · catalogue 6715C0 · Europe

Supported model Data version 2020-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

24 part groups · 3 illustrations

Illustrations

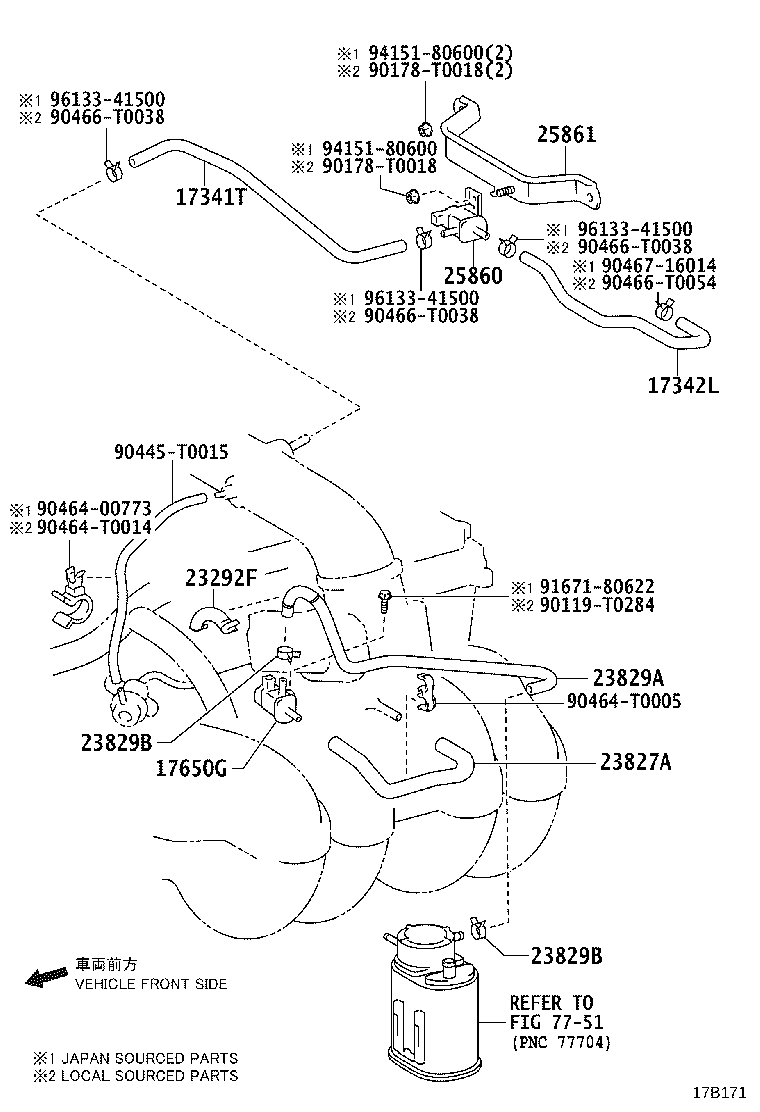

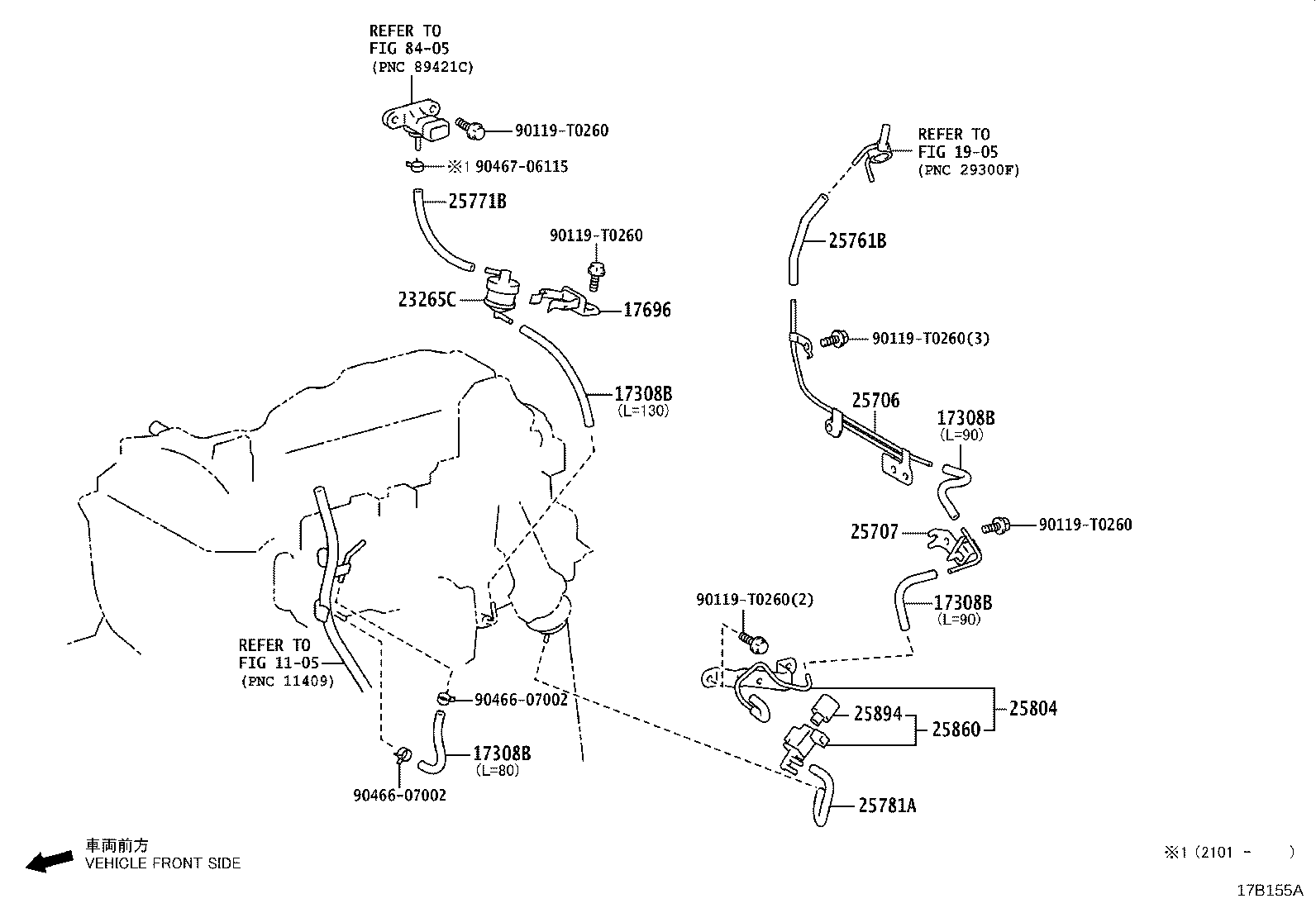

Figure 17B154A 17B154A 2020-06 → — Figure 17B155A 17B155A 2020-06 → — Figure 17B171 17B171 2020-06 → —

Part groups

PNCDescription
17308B Hose Sub-assy, Vacuum
17341P Hose, Air
17341T Hose, Air, NO.1
17342L Hose, Air, NO.2
17578B Clamp, Pipe
17650G Valve, Duty Vacuum Switching
17696 Bracket, Gas Filter
23265C Filter, Gas
23292F Protector, Fuel Hose
23827A Hose, Fuel Vapor Feed, NO.2
23829A Hose, Fuel Vapor Feed
23829B Clip(FOR FUEL VAPOR FEED HOSE)
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25733A Pipe, Vacuum, NO.1
25734 Pipe, Vacuum, NO.2
25761B Hose, Vaccum Transmitting, NO.1
25771B Hose, Vaccum Transmitting, NO.2
25781A Hose, Vacuum Transmitting, NO.3
25804 Valve Set, Vacuum Control
25860 Valve Assy, Vacuum Switching, NO.1
25861 Bracket, Vacuum Switching Valve
25894 Filter, NO.1
89639E Clamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
