Toyota Fortuner

2020-06 → 2021-08 · chassis GUN156,TGN156 · catalogue 6715C0 · Europe

Supported model Data version 2020-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vane Pump & Reservoir (POWER STEERING)

17 part groups · 2 illustrations

Illustrations

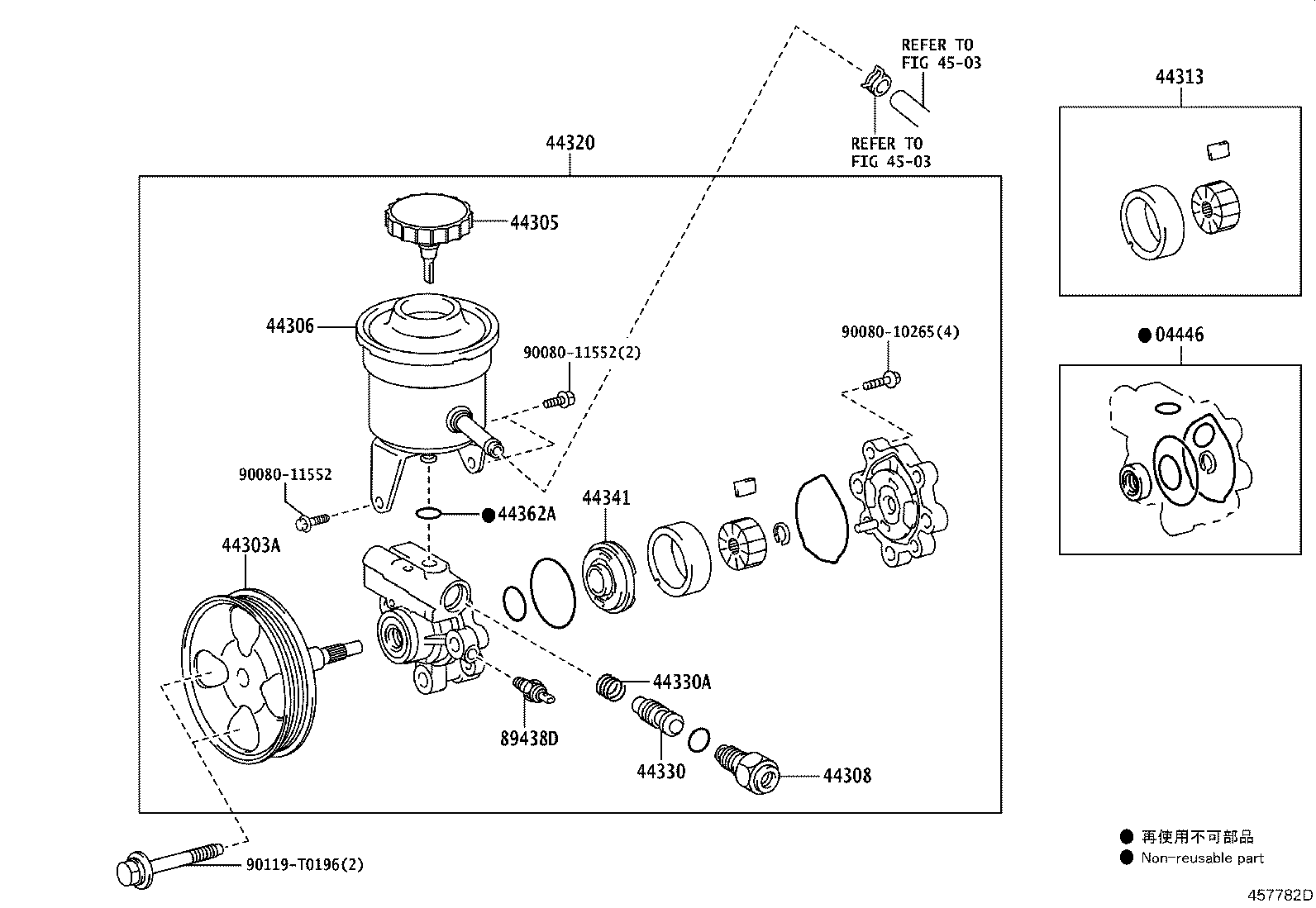

Figure 457780Q 457780Q 2020-06 → — Figure 457782D 457782D 2020-06 → —

Part groups

PNCDescription
04446 Gasket Kit, Power Steering Pump
44303A Shaft Sub-assy, W/Pulley
44305 Cap Sub-assy, Vane Pump Oil Reservoir
44306 Reservoir Sub-assy, Vane Pump Oil
44308 Union Sub-assy, Pressure Port
44313 Rotor, Vane Pump
44320 Pump Assy, Vane
44330 Valve Assy, Flow Control
44330A Spring, Compression(FOR FLOW CONTROL VALVE)
44337 Union, Power Steering Suction Port
44337A Ring, O(FOR POWER STEERING SUCTION PORT)
44341 Plate, Vane Pump Side, Front
44360 Reservoir Assy, Vane Pump Oil
44362A Ring, O(FOR VANE PUMP OIL RESERVOIR)
44369A Bracket, Oil Reservoir, NO.1
44413F Tube, Pressure Feed, NO.2
89438D Switch, Power Steering Oil Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
