Toyota Fortuner
2020-06 → 2021-08 · chassis GUN156,TGN156 · catalogue 6715C0 · Europe
Supported model
Data version 2020-04

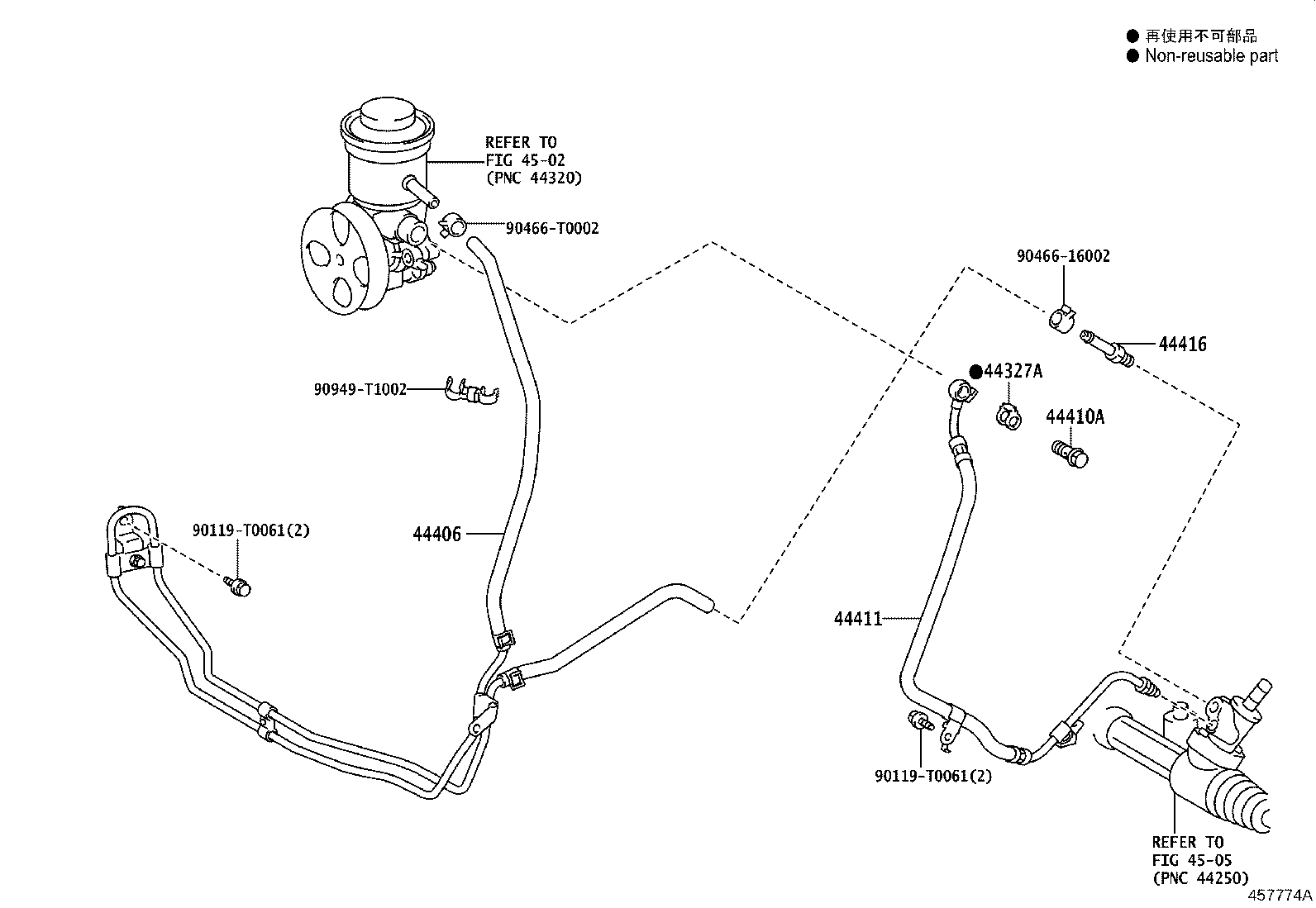

Power Steering Tube
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44327A | Gasket, Pressure Port, NO.1 |
| 44348A | Hose, Oil Reservoir TO Pump, NO.1 |
| 44406 | Tube Sub-assy, Return |
| 44410A | Bolt, Union(FOR PRESSURE FEED TUBE) |
| 44411 | Hose, Pressure Feed |
| 44416 | Tube, Return(FOR STEERING GEAR OUTLET) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
