Toyota Fortuner
2020-06 → 2021-08 · chassis GUN156,TGN156 · catalogue 6715C0 · Europe
Supported model
Data version 2020-04

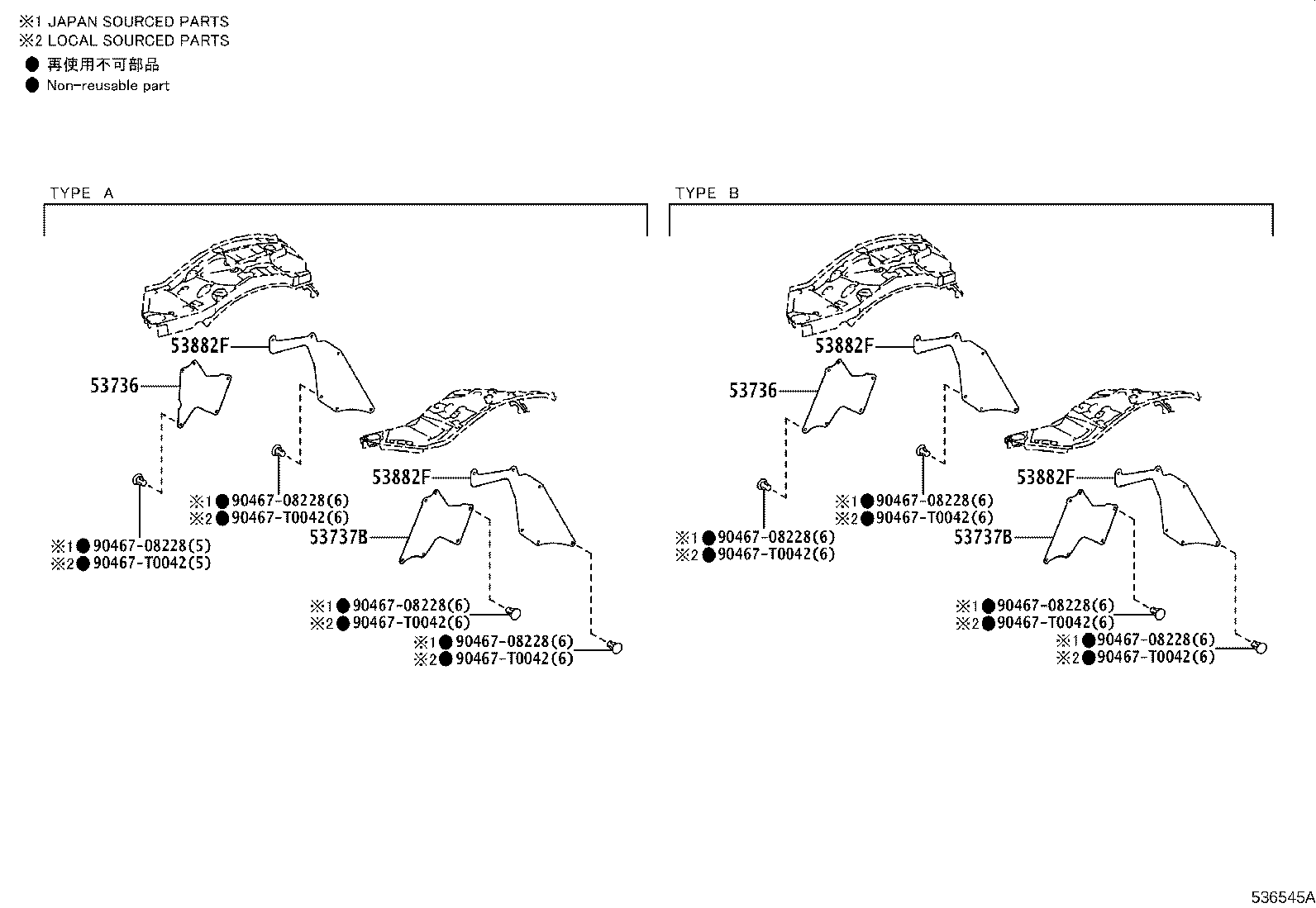

Front Fender Apron & Dash Panel
48 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53201 | Support Sub-assy, Radiator |
| 53202 | Support Sub-assy, Radiator, RH |
| 53202D | Cushion, Radiator Support |
| 53203 | Support Sub-assy, Radiator, LH |
| 53205 | Support Sub-assy, Radiator, Upper |
| 53208A | Support Sub-assy, Hood Lock |
| 53218D | Extension, Hood Lock Brace |
| 53257B | Bracket, Radiator Support TO Front Fender |
| 53268A | Reinforcement, Radiator Mounting, RH |
| 53269A | Reinforcement, Radiator Mounting, LH |
| 53275 | Bracket, Headlamp Door Mounting, NO.1 RH |
| 53276 | Bracket, Headlamp Door Mounting, NO.1 LH |
| 53293C | Deflector, Radiator Side, RH |
| 53294C | Deflector, Radiator Side, LH |
| 53298E | Seal, Radiator Side, RH |
| 53299C | Seal, Radiator Side, LH |
| 53701 | Apron Sub-assy, Front Fender, RH |
| 53702 | Apron Sub-assy, Front Fender, LH |
| 53704B | Support Sub-assy, Battery, LH |
| 53707F | Gusset Sub-assy, Front Fender Apron, Lower RH |
| 53708C | Gusset Sub-assy, Front Fender Apron, Lower LH |
| 53713C | Extension, Front Fender Apron, Front RH |
| 53714C | Extension, Front Fender Apron, Front LH |
| 53715E | Extension, Front Fender Apron, Rear RH |
| 53716E | Extension, Front Fender Apron, Rear LH |
| 53717 | Plate, Fender Apron, RH |
| 53718 | Plate, Fender Apron, LH |
| 53731H | Patch, Front Fender Apron, RH |
| 53732E | Reinforcement, Front Fender Apron, LH |
| 53736 | Seal, Front Fender Apron, RH |
| 53737B | Seal, Front Fender Apron, LH |
| 53741B | Plate, Fender Apron Reinforce, RH |
| 53742B | Plate, Fender Apron Reinforce, LH |
| 53743B | Reinforcement, Front Fender Apron, Front RH |
| 53744B | Reinforcement, Front Fender Apron, Front LH |
| 53745B | Reinforcement, Front Fender Apron, Rear RH |
| 53746 | Reinforcement, Front Fender Apron, Rear LH |
| 53882F | Seal, Front Fender |
| 55101 | Panel Sub-assy, Dash |
| 55210 | Insulator Assy, Dash Panel |
| 55210A | Clip |
| 55210C | Clip |
| 55223A | Insulator, Dash Panel, Outer |
| 55223C | Clip |
| 57161C | Member, Front Cross |
| 57225 | Brace, Front Mounting Bracket, RH |
| 57226 | Brace, Front Mounting Bracket, LH |
| 87417D | Packing, Air Duct |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
