Toyota Fortuner

2020-06 → 2021-08 · chassis GUN156,TGN156 · catalogue 6715C0 · Europe

Supported model Data version 2020-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

26 part groups · 2 illustrations

Illustrations

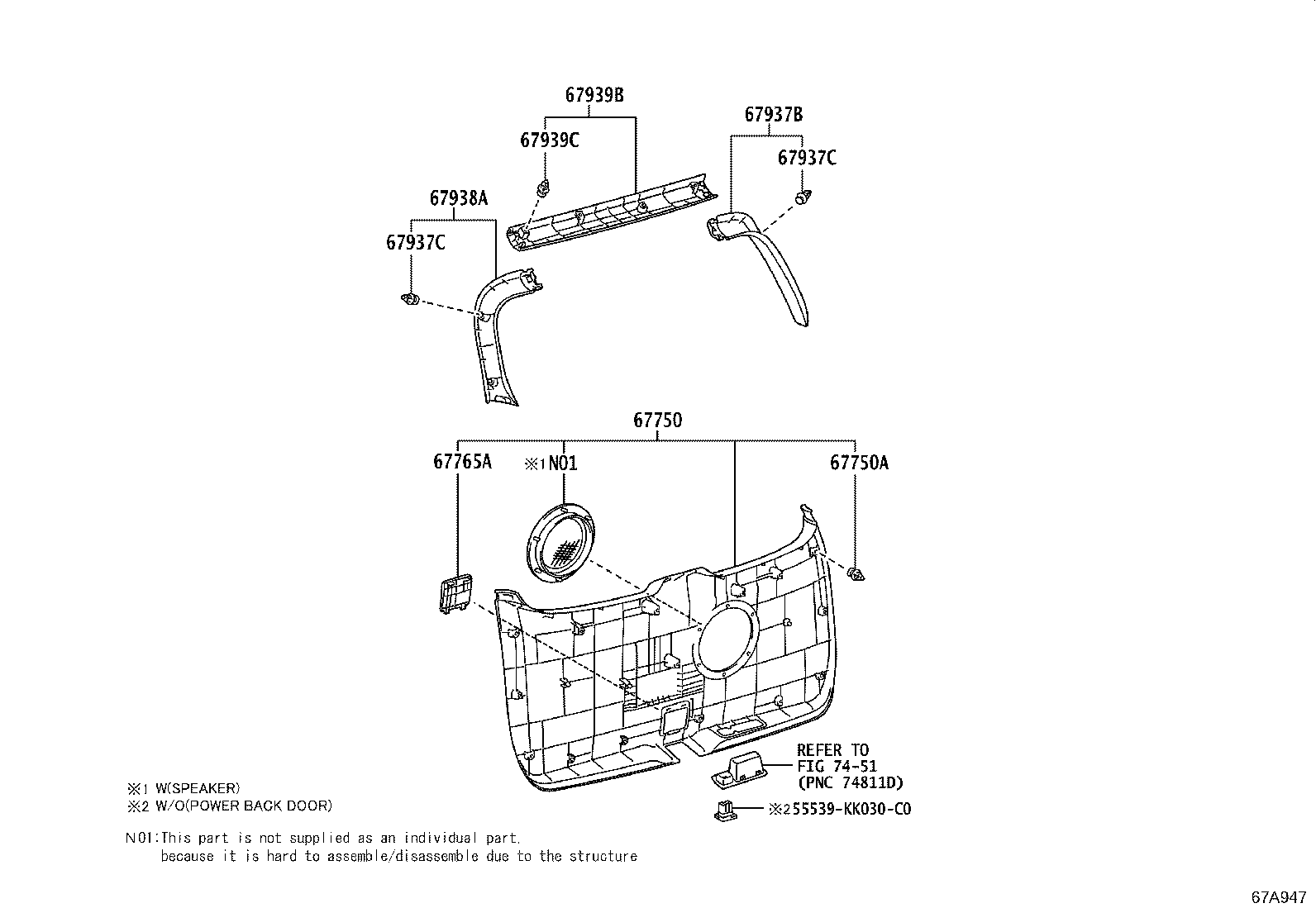

Figure 67A948B 67A948B 2020-05 → — Figure 67A947 67A947 2020-05 → —

Part groups

PNCDescription
62785F Spacer, Back Door Glass
64818B Spacer, Back Door Glass, NO.1
64819 Spacer, Back Window Glass, NO.2
64827A Clip, Back Window Glass, RH
64828 Clip, Back Window Glass, LH
64885C Channel, Back Door Glass, RH
64886B Channel, Back Door Glass, LH
67005 Panel Sub-assy, Back Door
67005B Cushion(FOR BACK DOOR PANEL)
67750 Board Assy, Back Door Trim
67750A Clip(FOR BACK DOOR TRIM)
67765A Cover, Back Door Service Hole, NO.1
67837L Seal, Door Dust Proof
67881A Weatherstrip, Back Door
67937B Garnish, Back Door Side, RH
67937C Clip(FOR BACK DOOR SIDE GARNISH)
67938A Garnish, Back Door Side, LH
67939B Garnish, Back Door, Center
67939C Clip(FOR BACK DOOR CENTER GARNISH)
68131 Glass, Back Door
75129C Cushion, Rear Licence Plate
75571F Mouldimg, Back Door Window
76801 Garnish Sub-assy, Back Door, Outside
76825H Protector, Back Door Outside Garnish, NO.1
76825J Protector, Back Door Outside Garnish, NO.2
76825K Protector, Back Door Outside Garnish, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
