Toyota Fortuner

2020-06 → 2021-08 · chassis GUN156,TGN156 · catalogue 6715C0 · Europe

Supported model Data version 2020-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

29 part groups · 3 illustrations

Illustrations

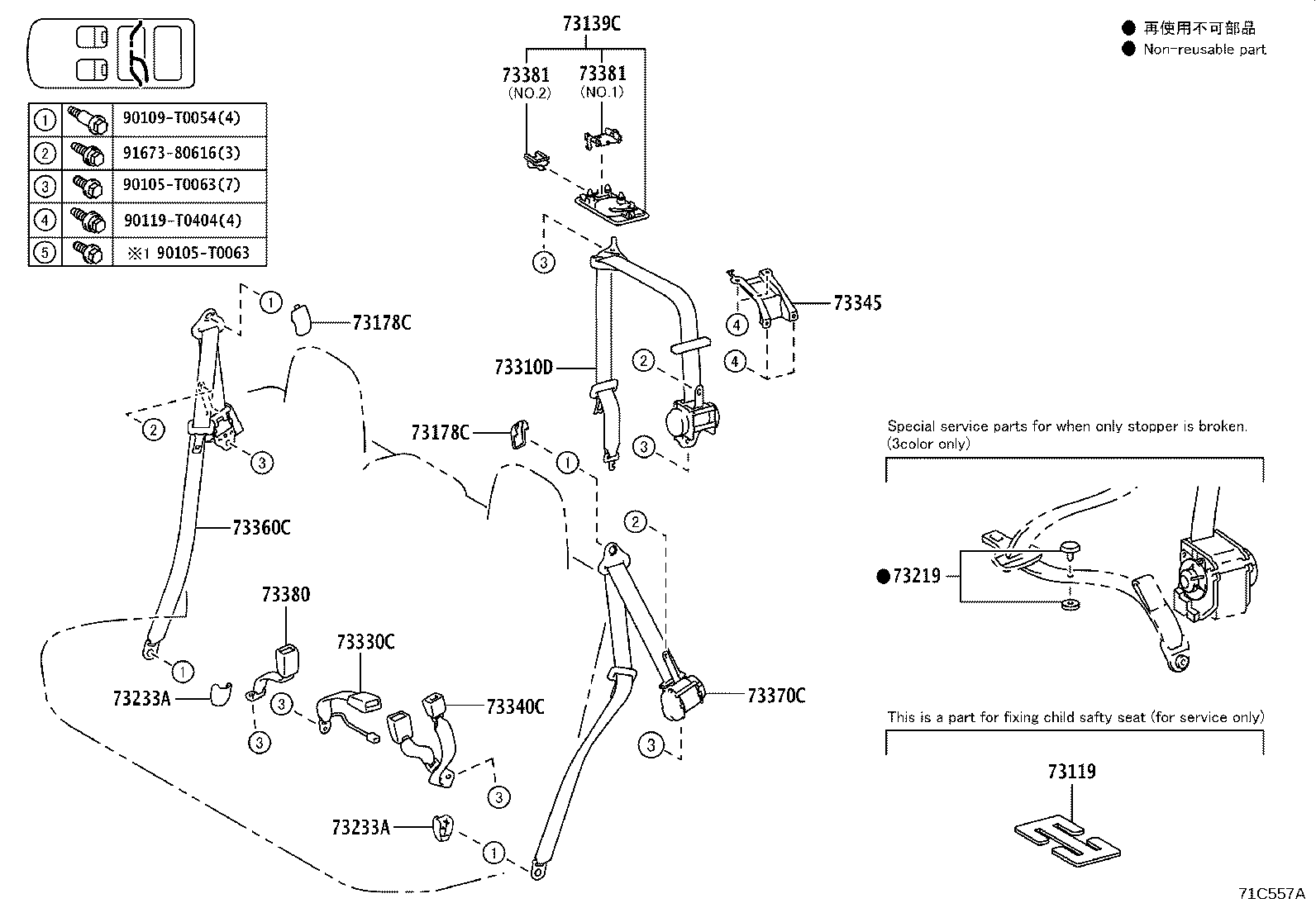

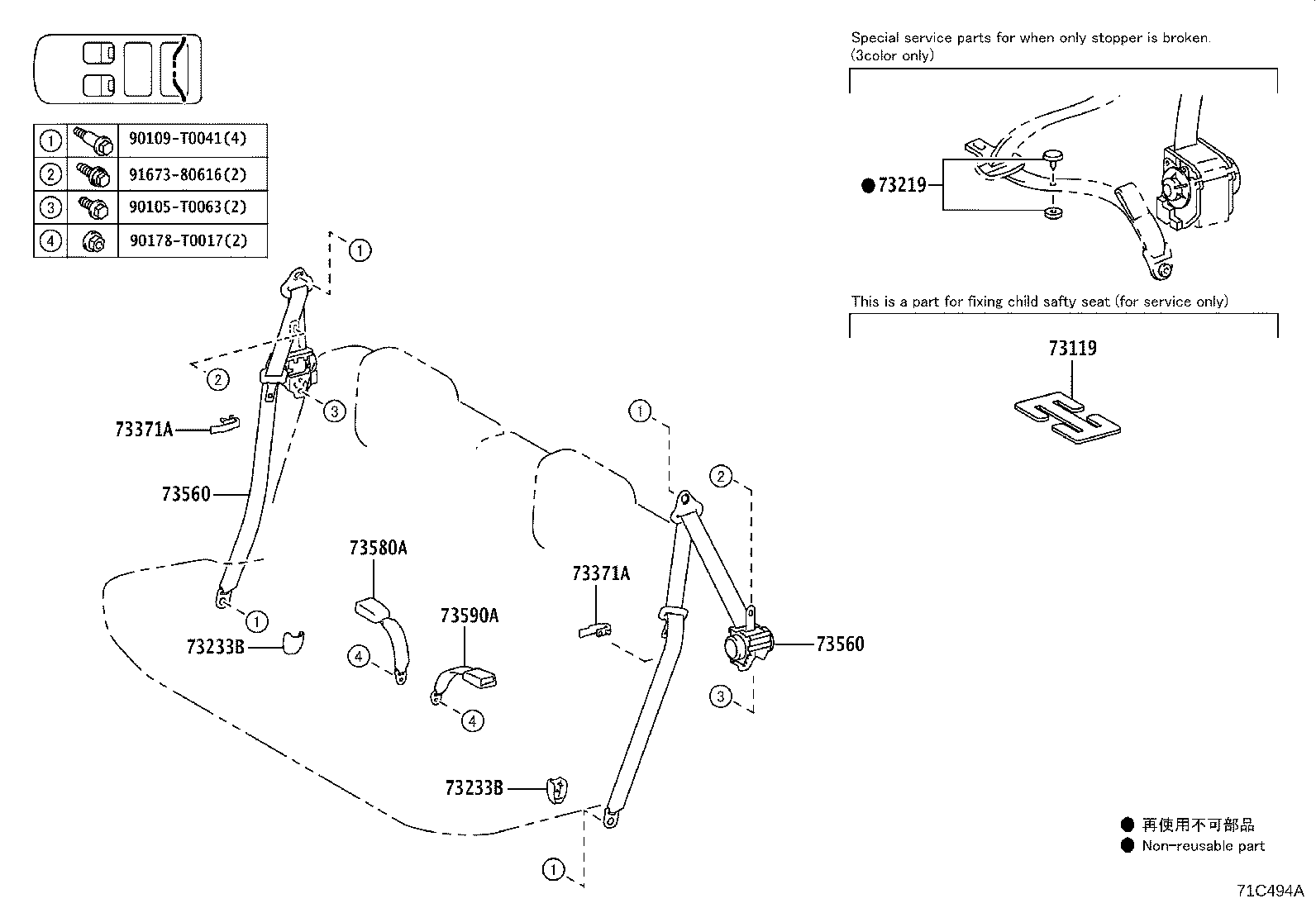

Figure 71C556A 71C556A 2020-05 → — Figure 71C557A 71C557A 2020-05 → — Figure 71C494A 71C494A 2020-05 → —

Part groups

PNCDescription
73023 Plate Sub-assy, Front Shoulder Belt Anchor, RH
73024 Plate Sub-assy, Front Shoulder Belt Anchor, LH
73119 Plate, Seat Belt Webbing Clip
73135A Cover, Shoulder Belt Anchor, RH
73136A Cover, Shoulder Belt Anchor, LH
73139C Cover, Rear Seat Belt
73178A Cap, Seat Belt Anchor Cover
73178C Cap, Seat Belt Anchor Cover
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73233A Cover, Lap Belt Outer Anchor, Rear NO.1 Seat
73233B Cover, Lap Belt Outer Anchor, Rear NO.2 Seat
73240 Belt Assy, Front Seat Inner, LH
73310D Belt Assy, Rear Seat 3 Point Type, Center
73330C Belt Assy, Rear Seat Lap Type, Center RH
73340C Belt Assy, Rear Seat Lap Type, Center LH
73345 Guide, Rear Seat Shoulder Belt, Center
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73371A Hanger Rear Seat Shoulder Belt
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73381 Holder, Rear Seat Belt
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73580A Belt Sub Assy, Rear NO.2 Seat, Inner
73590A Belt Assy, Rear Seat, Inner LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
