Toyota Fortuner (SUV)

2021-08 → 2022-08 · chassis GUN156,TGN156 · catalogue 6715D0 · Europe

Supported model Data version 2023-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

9 part groups · 2 illustrations

Illustrations

Figure 153471A

153471A 2021-08 → —

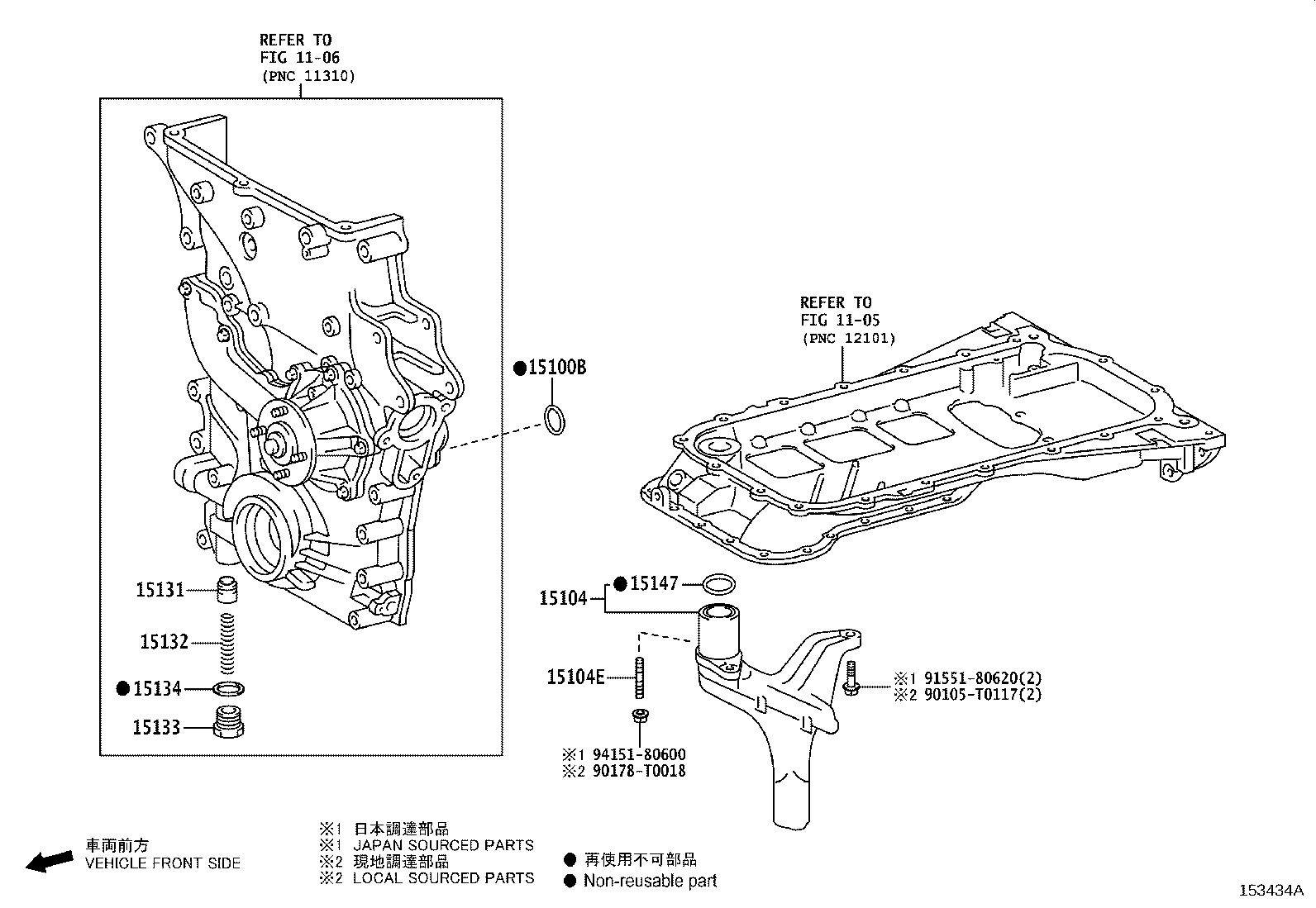

Figure 153434A

153434A 2021-08 → —

Part groups

PNC	Description
15100B	Ring, O(FOR OIL PUMP)
15104	Strainer Sub-assy, Oil
15104E	Bolt, Stud(FOR OIL STRAINER)
15131	Valve, Oil Pump Relief
15132	Spring, Oil Pump Relief Valve
15133	Plug, Oil Pump Relief Valve
15134	Gasket, Oil Pump Relief Valve
15147	Gasket, Oil Strainer
15149	Gasket, Oil Strainer Flange

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
