Toyota Fortuner (SUV)

2021-08 → 2022-08 · chassis GUN156,TGN156 · catalogue 6715D0 · Europe

Supported model Data version 2023-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

7 part groups · 2 illustrations

Illustrations

196042 2021-08 → —

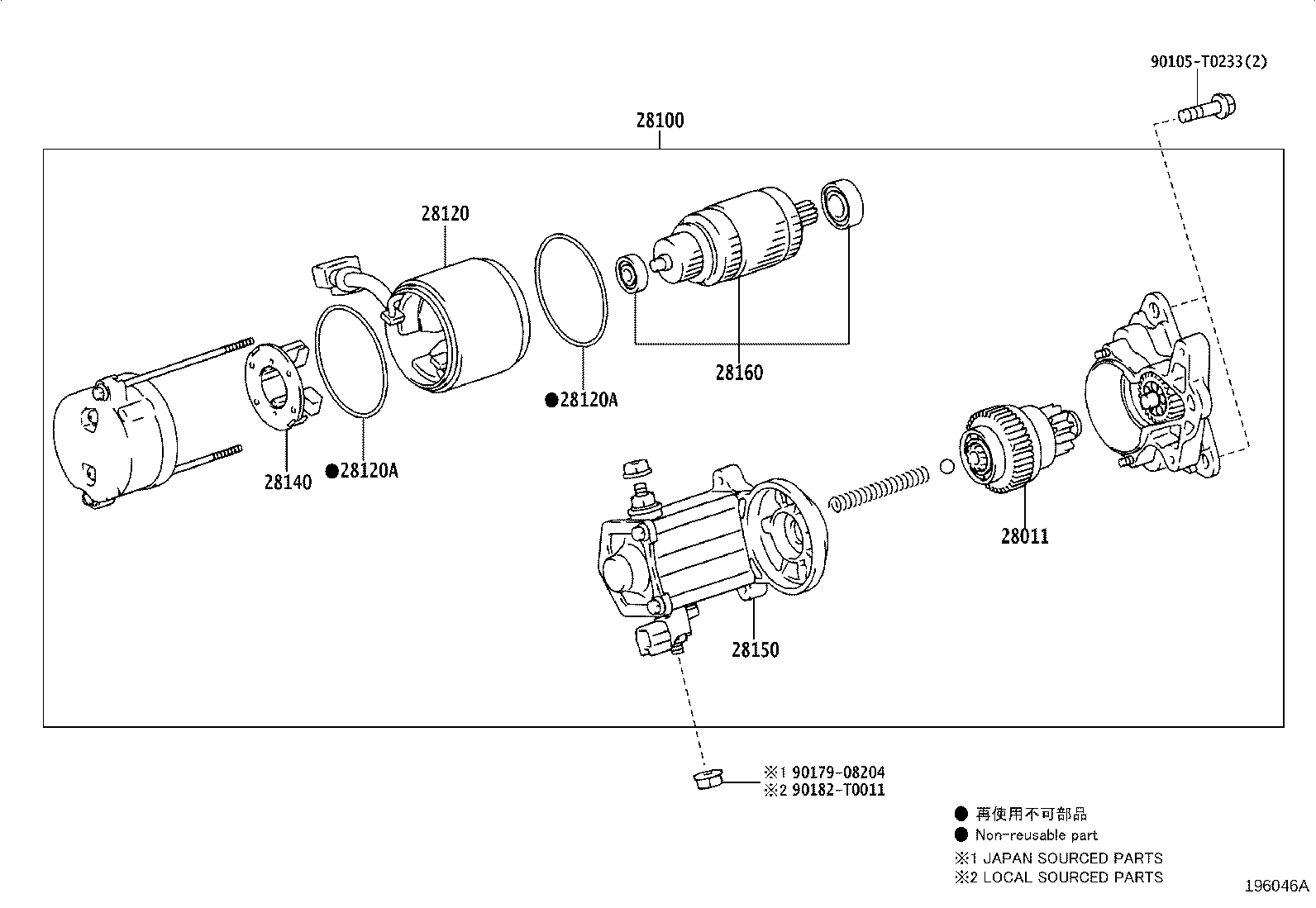

Figure 196046A

196046A 2021-08 → —

Part groups

PNC	Description
28011	Clutch Sub-assy, Starter
28100	Starter Assy
28120	Yoke Assy, Starter
28120A	Ring, O(FOR STARTER YOKE)
28140	Holder Assy, Starter Brush
28150	Switch Assy, Magnet Starter
28160	Armature Assy, Starter

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
