Toyota Fortuner (SUV)
2021-08 → 2022-08 · chassis GUN156,TGN156 · catalogue 6715D0 · Europe
Supported model
Data version 2023-09
Frame
44 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17571A | Bracket, Exhaust Pipe Support, NO.9 |
| 17578H | Bracket, Exhaust Pipe Support, NO.10 |
| 51021B | Crossmember Sub-assy, Frame Auxiliary |
| 51025A | Bracket Sub-assy, Frame NO.3 Crossmember, RH |
| 51026 | Bracket Sub-assy, Frame NO.3 Crossmember, LH |
| 51035 | Plate Sub-assy, Frame Side Rail, RH |
| 51036 | Plate Sub-assy, Frame Side Rail, LH |
| 51095A | Hook Sub-assy, Transport, Rear RH |
| 51096 | Hook Sub-assy, Transport, Rear LH |
| 51100F | Frame Sub-assy |
| 51110 | Extension Assy, Side Rail, RH |
| 51120 | Extension Assy, Side Rail, LH |
| 51202 | Crossmember Sub-assy, Frame, NO.1 |
| 51203 | Crossmember Sub-assy, Frame, NO.2 |
| 51204 | Crossmember Sub-assy, Frame, NO.3 |
| 51205 | Crossmember Sub-assy, Frame, NO.4 |
| 51206 | Crossmember Sub-assy, Frame, NO.5 |
| 51206B | Crossmember Sub-assy, Frame, NO.6 |
| 51209C | Crossmember Sub-assy, Frame, Rear |
| 51365 | Stopper, Rear Bumper |
| 51401 | Bracket Sub-assy, Engine Front Mounting, RH |
| 51402 | Bracket Sub-assy, Engine Front Mounting, LH |
| 51501 | Support Sub-assy, Suspension Arm, RH |
| 51502 | Support Sub-assy, Suspension Arm, LH |
| 51503A | Bracket Sub-assy, Lower Control Link Support, RH |
| 51504 | Bracket Sub-assy, Lower Control Link Support, LH |

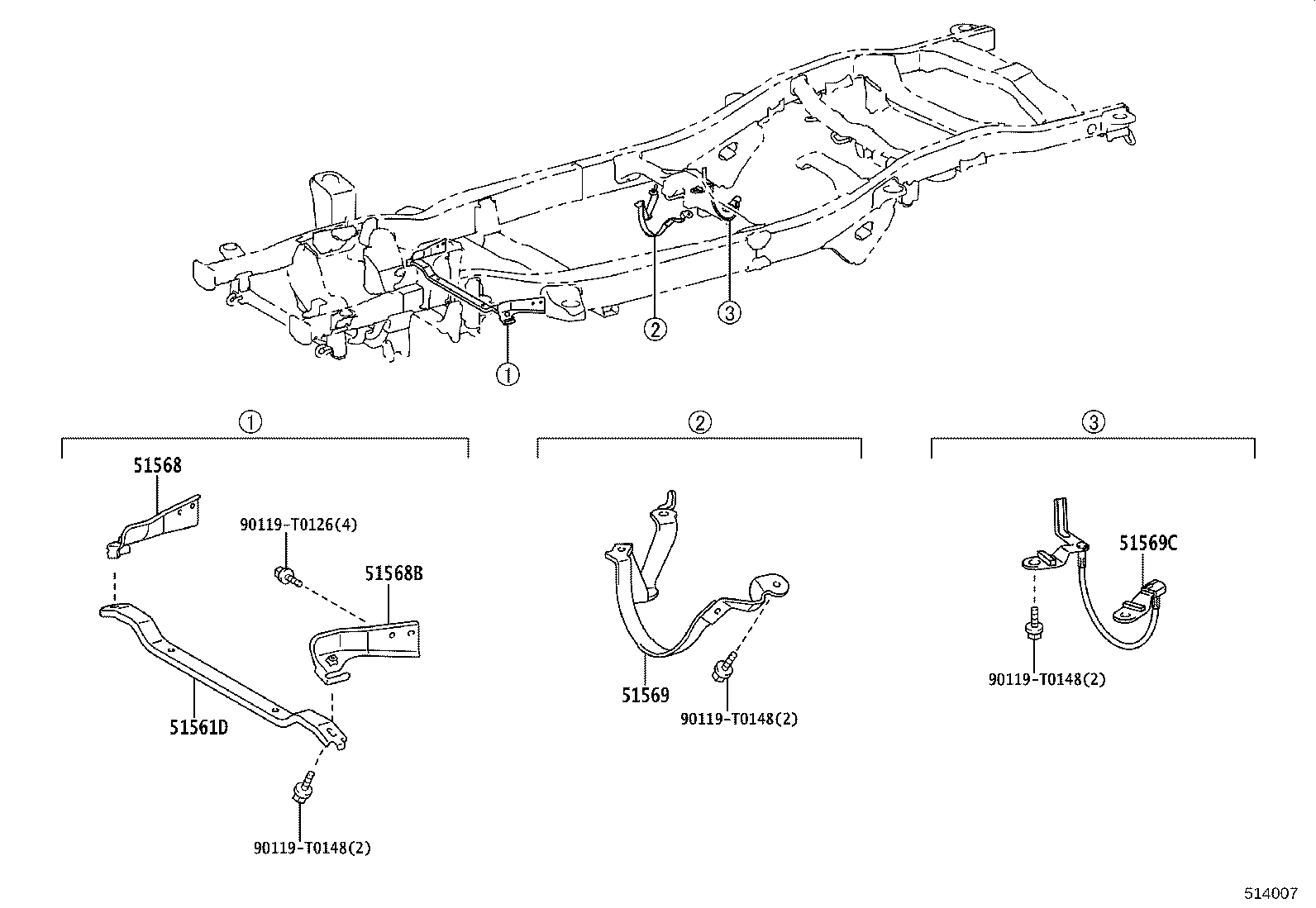

| 51561D | Guard, Propeller Shaft |
| 51568 | Bracket, Propeller Shaft Guard |
| 51568B | Bracket, Propeller Shaft Guard |
| 51569 | Guard, Propeller Shaft |
| 51569C | Guard, Propeller Shaft |
| 51591A | Support, Stabilizer, RH |
| 51592A | Support, Stabilizer, LH |
| 51701 | Bracket Sub-assy, Cab Mounting, NO.1 RH |
| 51702 | Bracket Sub-assy, Cab Mounting, NO.1 LH |
| 51703 | Bracket Sub-assy, Cab Mounting, NO.2, RH |
| 51704 | Bracket Sub-assy, Cab Mounting, NO.2 LH |
| 51707C | Bracket Sub-assy, Cab Mounting, NO.4 RH |
| 51708A | Bracket Sub-assy, Cab Mounting, NO.4 LH |
| 51709C | Bracket Sub-assy, Cab Mounting, NO.5 RH |
| 51709D | Bracket Sub-assy, Cab Mounting, NO.5 LH |
| 57771A | Plate, Rear Spring, RH |
| 57772A | Plate, Rear Spring, LH |
| 77501U | Bracket Sub-assy, Fuel Tank |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
