Toyota Fortuner (SUV)
2021-08 → 2022-08 · chassis GUN156,TGN156 · catalogue 6715D0 · Europe
Supported model
Data version 2023-09

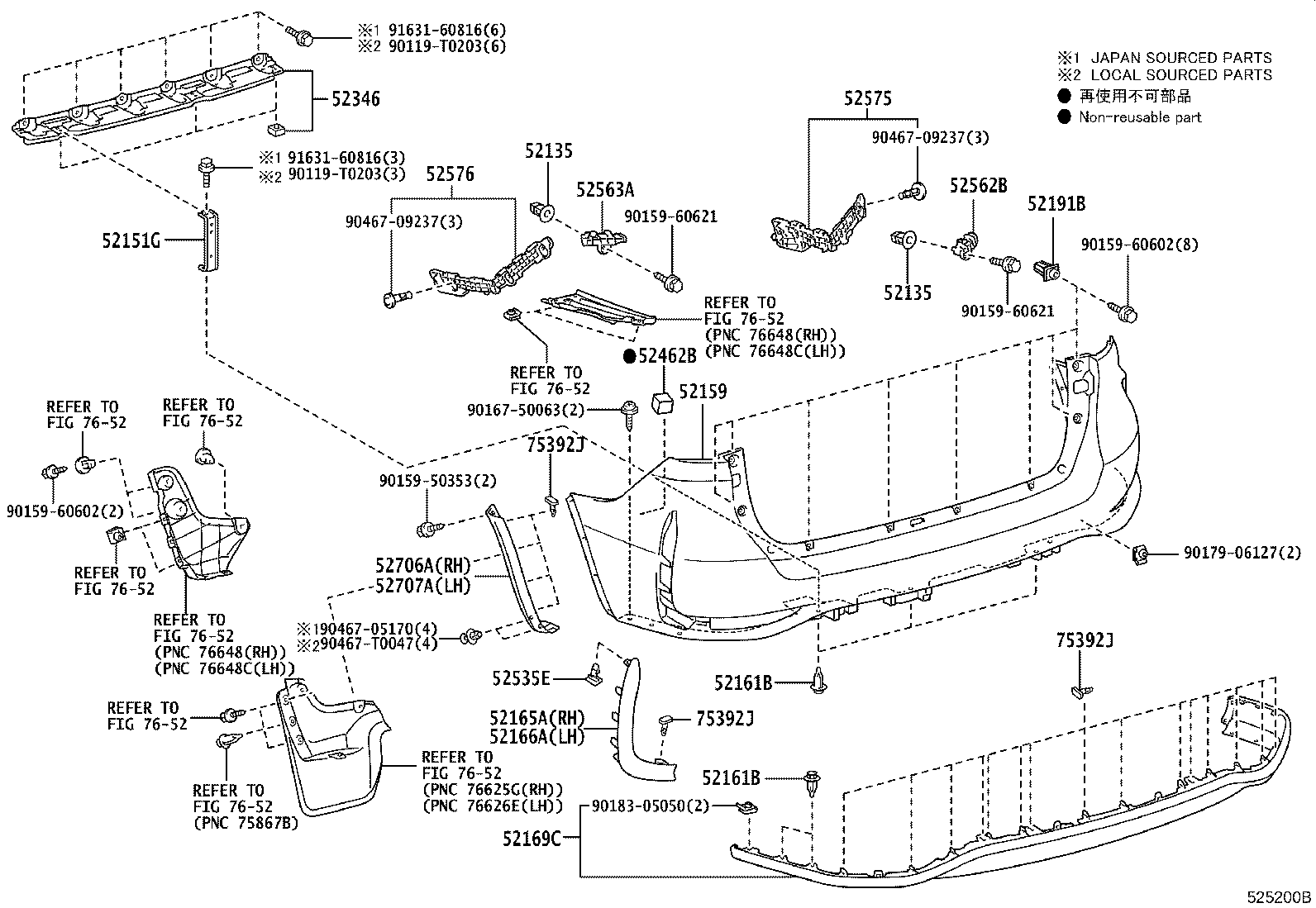

Rear Bumper & Bumper Stay
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52135 | Grommet, Rear Bumper Stay |
| 52151G | Extension, Rear Bumper |
| 52159 | Cover, Rear Bumper |
| 52161B | Piece, Rear Bumper |
| 52165A | Cover, Rear Bumper, Upr RH |
| 52166A | Cover, Rear Bumper, Upr LH |
| 52169C | Cover, Rear Bumper, Lower |
| 52191B | Grommet, Rear Bumper Stay |
| 52346 | Frame, Back Step, Rear |
| 52462 | Pad, Rear Bumper, RH |
| 52462B | Pad, Rear Bumper |
| 52535E | Retainer, Rear Bumper Side |
| 52562B | Retainer, Rear Bumper, Upper RH |
| 52563A | Retainer, Rear Bumper, Upper LH |
| 52575 | Retainer, Rear Bumper Side, RH |
| 52576 | Retainer, Rear Bumper Side, LH |
| 52706A | Moulding Sub-assy, Rear Bumper Side, RH |
| 52707A | Moulding Sub-assy, Rear Bumper Side, LH |
| 75392J | Retainer, Outside Moulding |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
