Toyota Fortuner (SUV)
2021-08 → 2022-08 · chassis GUN156,TGN156 · catalogue 6715D0 · Europe
Supported model
Data version 2023-09

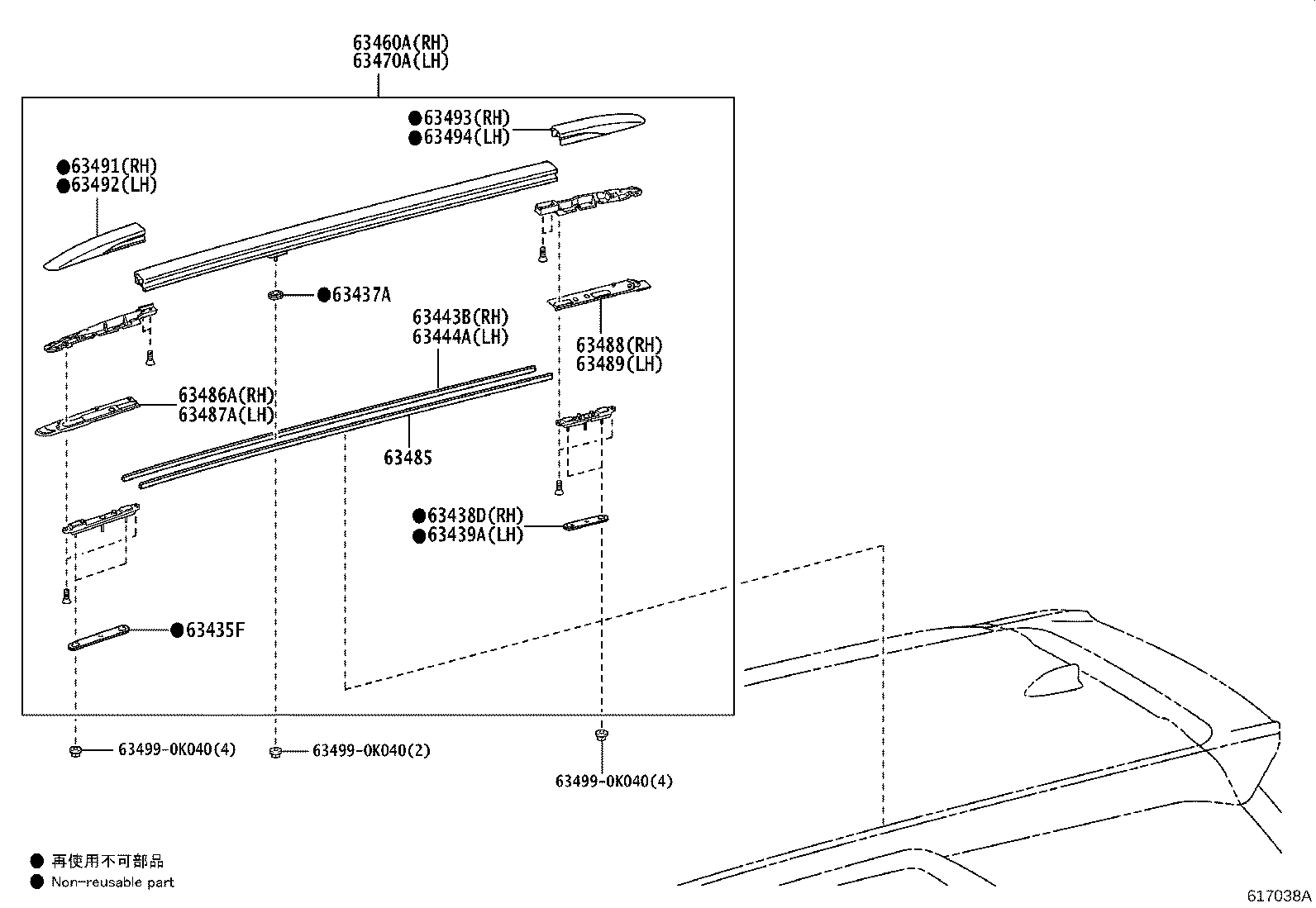

Roof Panel & Back Panel
27 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63105D | Frame Sub-assy, Back Window, Upper |
| 63111 | Panel, Roof |
| 63132 | Panel, Windshield Header, Inner |
| 63137A | Bracket, Dome Lamp, NO.1 |
| 63141G | Reinforcement, Roof Panel, NO.1 |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63144B | Reinforcement, Roof Panel, NO.4 |
| 63145A | Reinforcement, Roof Panel, NO.5 |
| 63145D | Bracket, Roof Reinforcement |
| 63435F | Seal, Roof Carrier, NO.1 |
| 63437A | Seal, Roof Carrier, NO.2 |
| 63438D | Seal, Roof Carrier, NO.3 RH |
| 63439A | Seal, Roof Carrier, NO.3 LH |
| 63443B | Protector, Roof Rack, RH |
| 63444A | Protector, Roof Rack, LH |
| 63460A | Rack Assy, Roof, RH |
| 63470A | Rack Assy, Roof, LH |
| 63485 | Cushion, Roof Rack Leg, Center |
| 63486A | Cushion, Roof Rack Leg, Front RH |
| 63487A | Cushion, Roof Rack Leg, Front LH |
| 63488 | Cushion, Roof Rack Leg, Rear RH |
| 63489 | Cushion, Roof Rack Leg, Rear LH |
| 63491 | Cover, Roof Rack Leg, Front RH |
| 63492 | Cover, Roof Rack Leg, Front LH |
| 63493 | Cover, Roof Rack Leg, Rear RH |
| 63494 | Cover, Roof Rack Leg, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
