Toyota Fortuner (SUV)
2021-08 → 2022-08 · chassis GUN156,TGN156 · catalogue 6715D0 · Europe
Supported model
Data version 2023-09

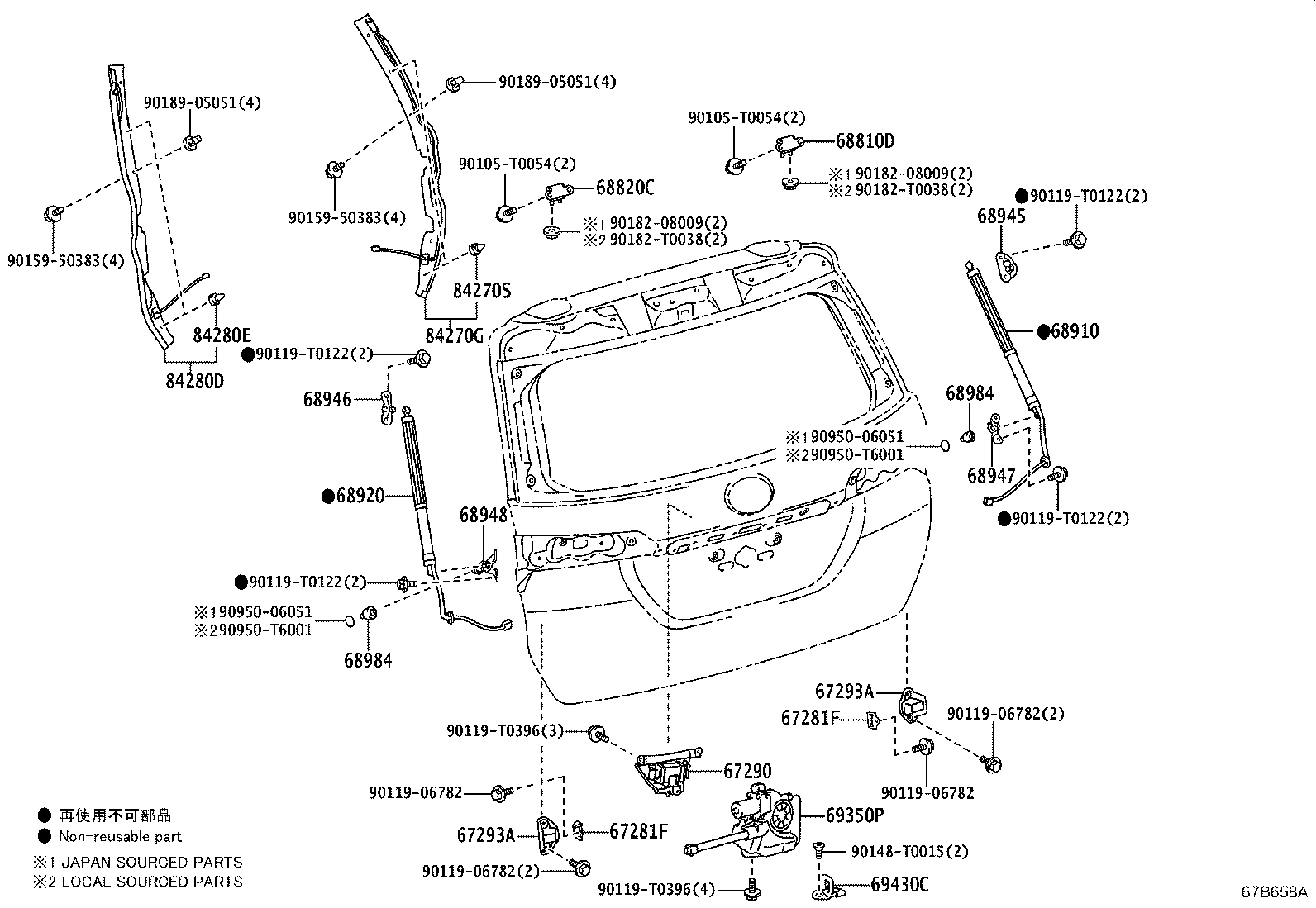

Back Door Lock & Hinge
20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67281F | Stopper, Back Door, Lower |
| 67290 | Damper Assy, Back Door |
| 67293A | Cushion, Back Door Stopper |
| 68810D | Hinge Assy, Back Door, RH |
| 68820C | Hinge Assy, Back Door, LH |
| 68910 | Unit Assy, Power Back Door |
| 68920 | Unit Assy Set, Power Back Door, LH |
| 68945 | Bracket, Back Door Damper Stay, Upper RH |
| 68946 | Bracket, Back Door Damper Stay, Upper LH |
| 68947 | Bracket, Back Door Damper Stay, Lower RH |
| 68948 | Bracket, Back Door Damper Stay, Lower LH |
| 68950C | Stay Assy, Back Door, RH |
| 68960 | Stay Assy, Back Door, LH |
| 68984 | Stopper, Back Door Stay |
| 69350P | Lock Assy, Back Door, W/Courtesy Lamp Switch |
| 69430C | Striker Assy, Back Door Lock |
| 84270G | Sensor Assy, Power Back Door, RH |
| 84270S | Clip(POWER BACK DOOR SENSOR, RH) |
| 84280D | Sensor Assy, Power Back Door, LH |
| 84280E | Clip (FOR POWER BACK DOOR SENSOR, LH) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
