Toyota Fortuner (SUV)

2021-08 → 2022-08 · chassis GUN156,TGN156 · catalogue 6715D0 · Europe

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

11 part groups · 2 illustrations

Illustrations

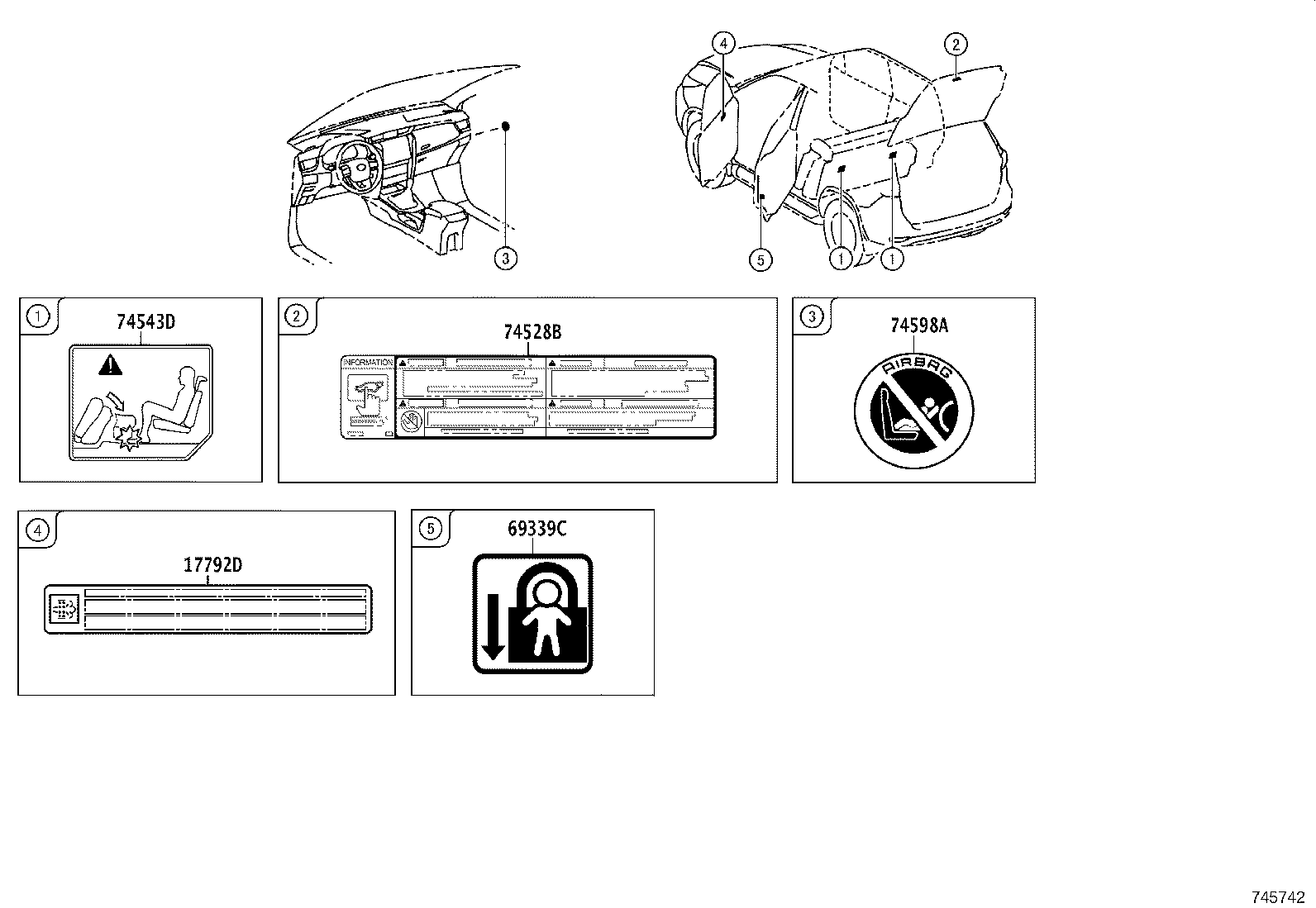

Figure 745741 745741 2021-08 → — Figure 745742 745742 2021-08 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
17792D Label, Emission Control Device Information
69339C Label, Child Protector Information
74528B Label, Back Door Caution
74543D Plate, Rear Seat Caution, NO.1
74559B Label, Fuel Information
74567A Plate, E.C.E Approved Number
74598A Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
88723H Label, Cooler Service Caution
88733A Label, Cooler Service Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
