Toyota Fortuner (SUV)

2021-08 → 2022-08 · chassis GUN156,TGN156 · catalogue 6715D0 · Europe

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

8 part groups · 2 illustrations

Illustrations

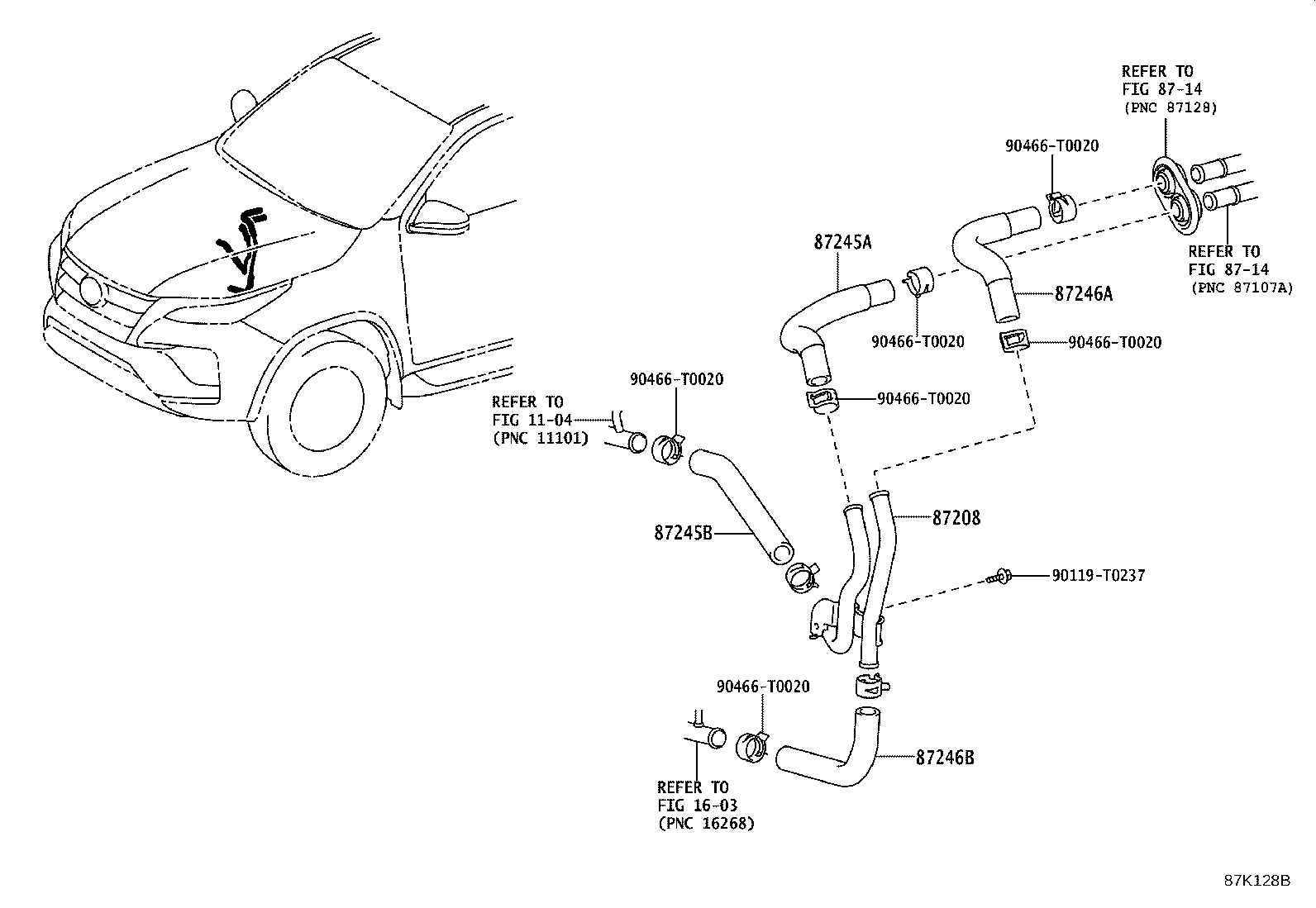

Figure 87K127C 87K127C 2021-08 → — Figure 87K128B 87K128B 2021-08 → —

Part groups

PNCDescription
87124 Clamp, Heater
87124A Clamp, Heater
87124F Clamp, Heater Hose, NO.1
87208 Pipe Sub-assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
