Toyota Fortuner (SUV)
2022-08 → 2023-07 · chassis GUN156,TGN156 · catalogue 6715E0 · Europe
Supported model
Data version 2024-09

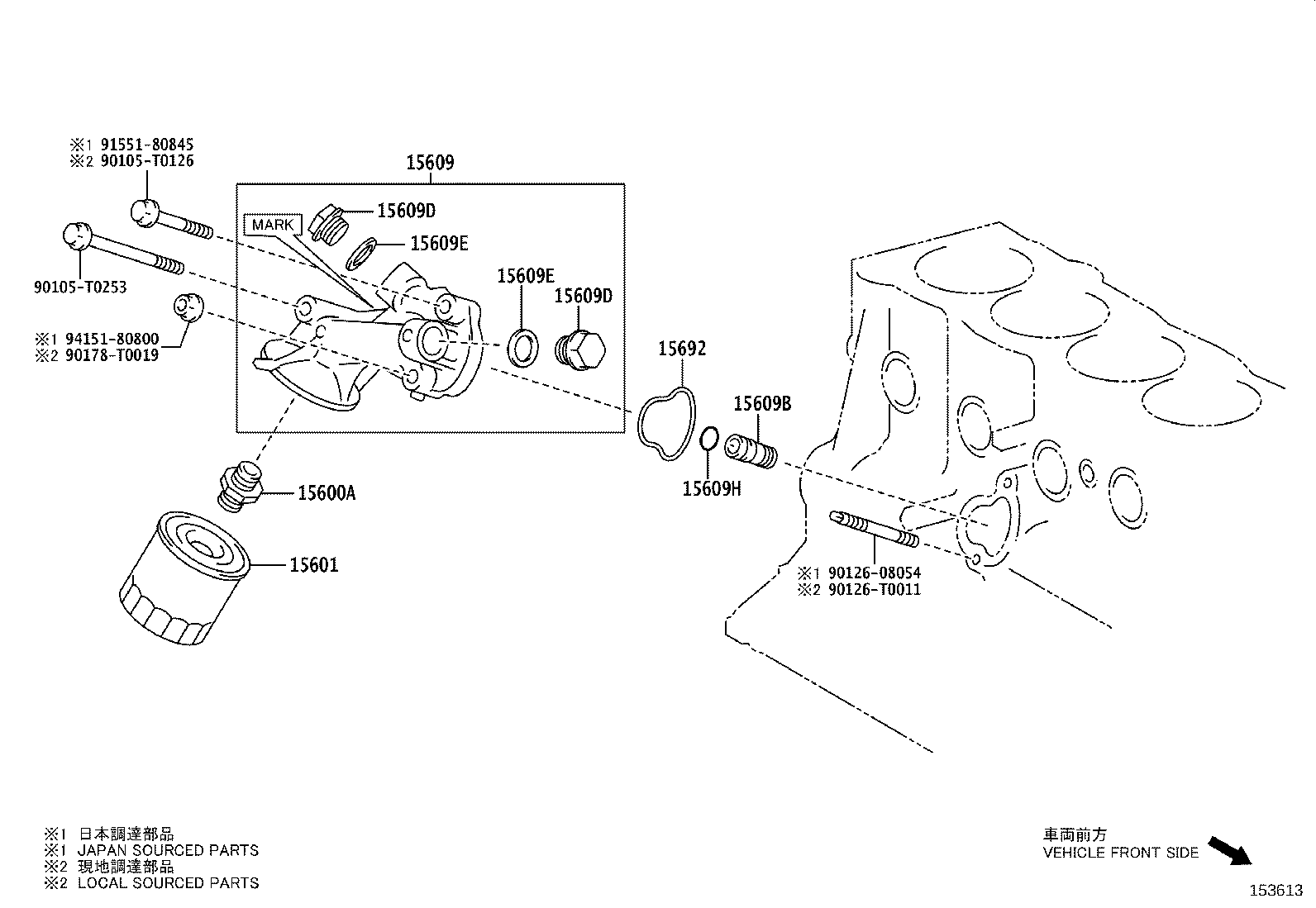

Oil Filter
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 15600A | Union(FOR OIL FILTER) |
| 15601 | Filter Sub-assy, Oil |
| 15609 | Bracket Sub-assy, Oil Filter |
| 15609B | Union(FOR OIL FILTER BRACKET) |
| 15609D | Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET) |
| 15609E | Gasket, W/Head Straight Screw Plug |
| 15609H | Ring, O(FOR OIL FILTER BRACKET) |
| 15677 | Bracket, Oil Filter |
| 15692 | Gasket, Oil Filter Bracket |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
