Toyota Fortuner (SUV)

2022-08 → 2023-07 · chassis GUN156,TGN156 · catalogue 6715E0 · Europe

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

8 part groups · 2 illustrations

Illustrations

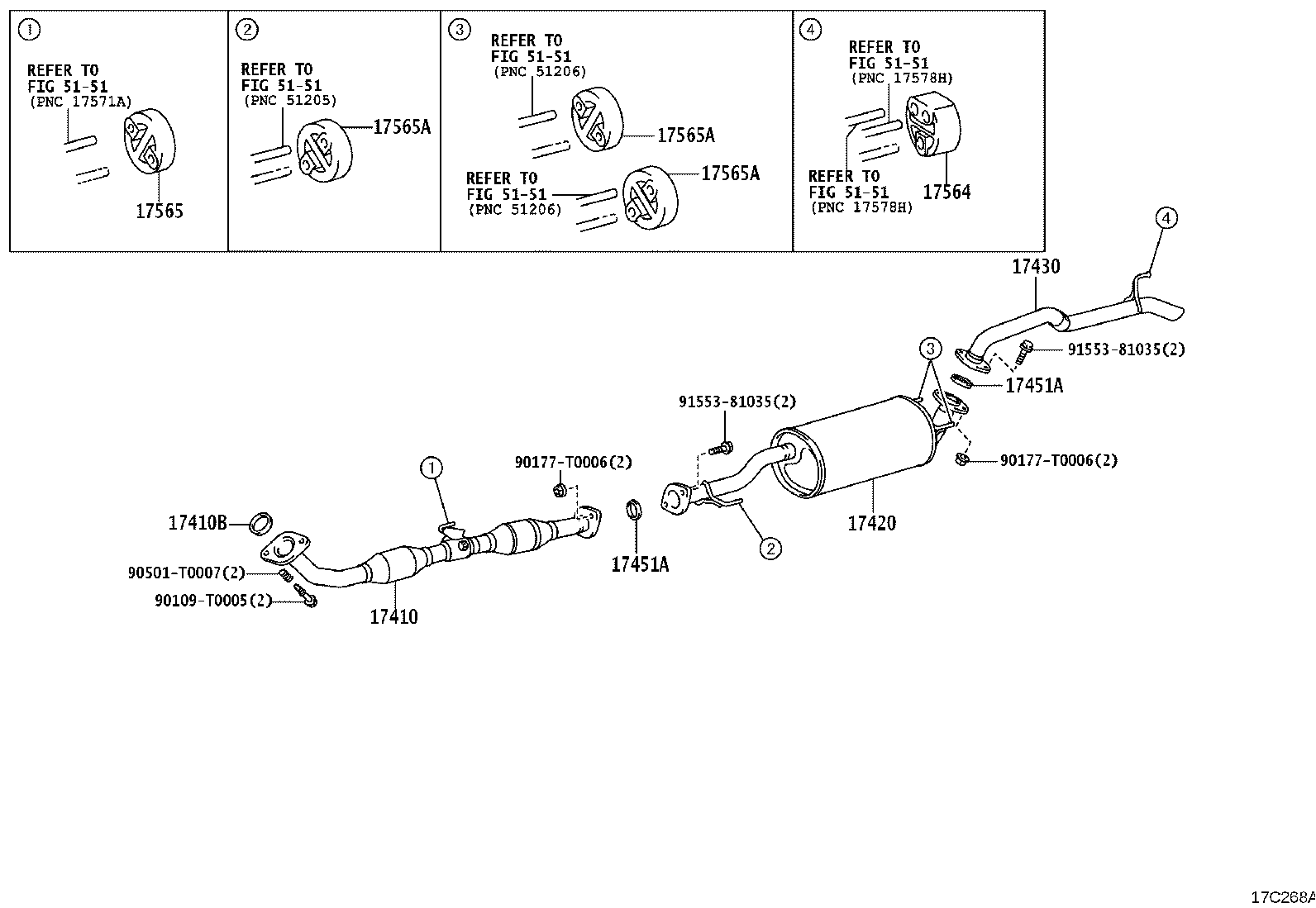

Figure 17C266A 17C266A 2022-08 → — Figure 17C268A 17C268A 2022-08 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17430 Pipe Assy, Exhaust, Tail
17451A Gasket, Exhaust Pipe, NO.2
17564 Support,Exhaust Pipe, NO.4
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
