Toyota Fortuner (SUV)
2022-08 → 2023-07 · chassis GUN156,TGN156 · catalogue 6715E0 · Europe
Supported model
Data version 2024-09

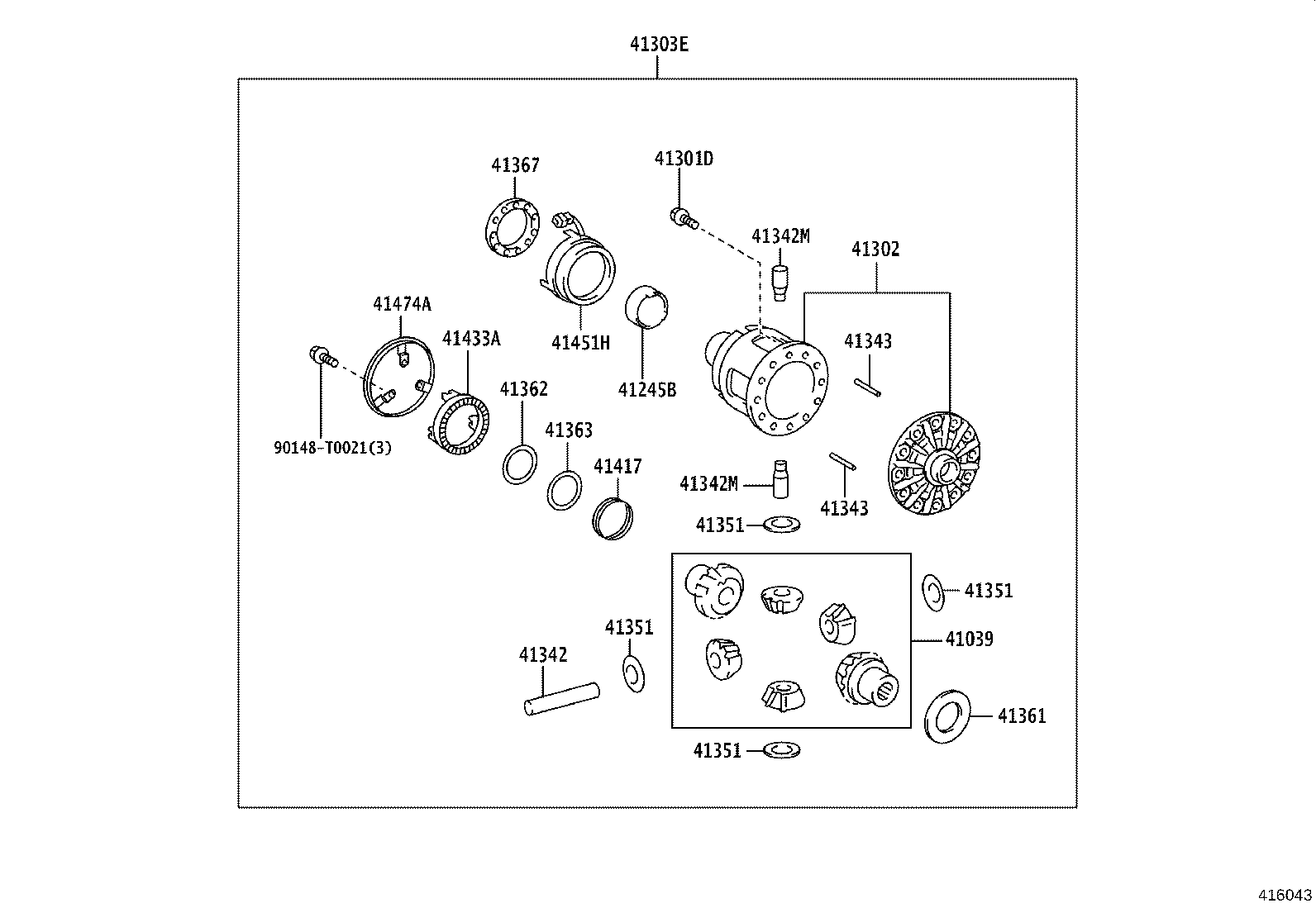

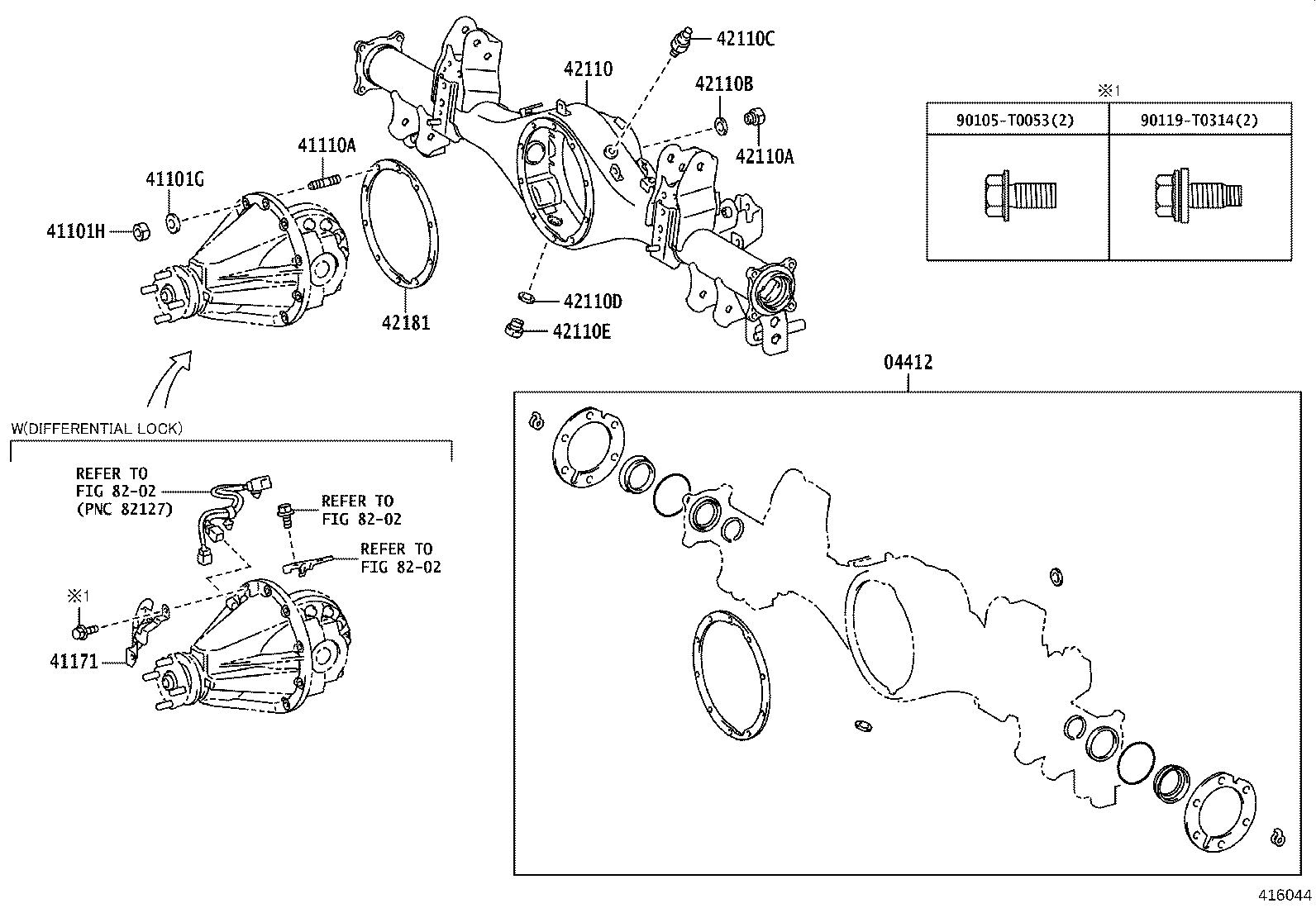

Rear Axle Housing & Differential
46 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 04412 | Gasket Kit, Rear Differential Carrier |
| 41039 | Gear Kit, Differential, Rear |
| 41101 | Carrier Sub-assy, Differential, Rear |
| 41101G | Washer, Spring(FOR REAR DIFFERENTIAL CARRIER SET) |
| 41101H | Nut, Hexagon(FOR REAR DIFFERENTIAL CARRIER SET) |
| 41101J | Connector, Wiring Harness |
| 41110 | Carrier Assy, Differential, Rear |
| 41110A | Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) |
| 41114 | Bolt, Rear Differential Bearing Cap |
| 41171 | Protector, Differential, Rear |
| 41201 | Final Gear Kit, Differential, Rear |
| 41201A | Bearing (FOR REAR DRIVE PINION REAR) |
| 41201B | Bearing (FOR REAR DRIVE PINION FRONT) |
| 41201C | Seal, Oil (FOR REAR DIFFERENTIAL CARRIER) |
| 41201E | Shim (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) |
| 41204 | Flange Sub-assy, Rear Drive Pinion Companion, Rear |
| 41204B | Nut (FOR REAR DRIVE PINION) |
| 41214 | Slinger, Rear Differential Drive Pinion Oil |
| 41231 | Spacer, Rear Differential Drive Pinion Bearing |
| 41245B | Plunger, Differential Lock |
| 41301A | Bearing(FOR REAR DIFFERENTIAL CASE) |
| 41301D | Screw(FOR REAR DIFFERENTIAL CASE) |
| 41301E | Shim(FOR DIFFERENTIAL CASE) |
| 41302 | Case Sub-assy, Rear Differential |
| 41302A | Bolt(FOR REAR DIFFERENTIAL CASE) |
| 41303E | Case Sub-assy, Electronic Differential Lock |
| 41342 | Shaft, Rear Differential Pinion |
| 41342M | Shaft, Rear Differential Pinion, NO.2 |
| 41343 | Pin, Rear Differential Pinion Shaft |
| 41351 | Washer, Rear Differential Pinion Thrust |
| 41361 | Washer, Rear Differential Side Gear Thrust, NO.1 |
| 41362 | Washer, Rear Differential Side Gear Thrust, NO.2 |
| 41363 | Washer, Rear Differential Side Gear Thrust, NO.3 |
| 41367 | Washer, Differential Solenoid |
| 41417 | Spring, Differential Lock |
| 41433A | Ring, Differential Lock Cam |
| 41451H | Coil, Differential Lock |
| 41474A | Plate, Differential Lock Position |
| 42110 | Housing Assy, Rear Axle |
| 42110A | Plug (FOR REAR AXLE HOUSING FILLER) |
| 42110B | Gasket (FOR REAR AXLE HOUSING FILLER PLUG) |
| 42110C | Plug, Breather (FOR REAR AXLE HOUSING) |
| 42110D | Gasket (FOR REAR AXLE HOUSING DRAIN PLUG) |
| 42110E | Plug (FOR REAR AXLE HOUSING DRAIN) |
| 42181 | Gasket, Rear Differential Carrier |
| 84222Q | Switch, Differential Lock Indicator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
