Toyota Fortuner (SUV)
2022-08 → 2023-07 · chassis GUN156,TGN156 · catalogue 6715E0 · Europe
Supported model
Data version 2024-09

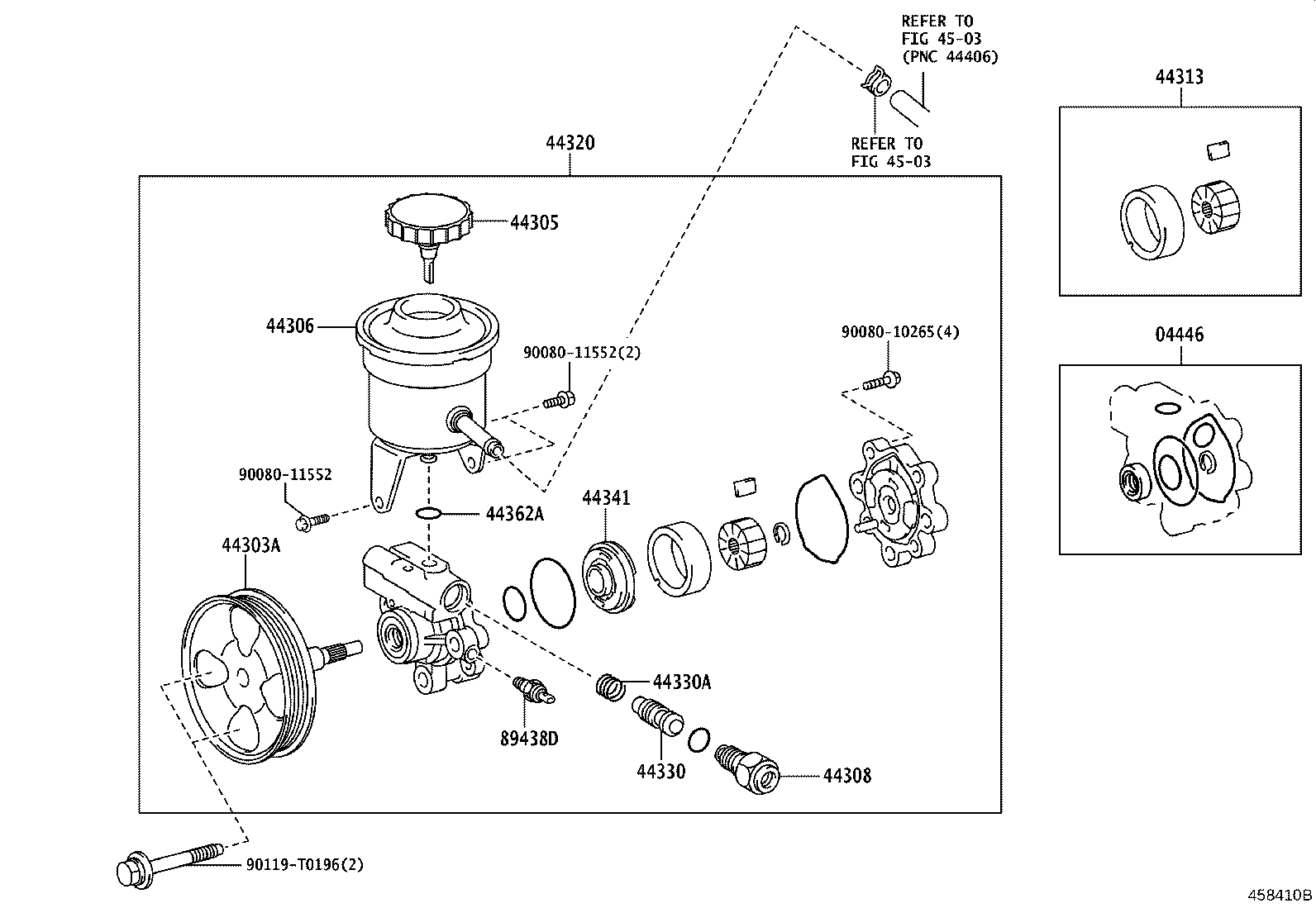

Vane Pump & Reservoir (POWER STEERING)
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04446 | Gasket Kit, Power Steering Pump |
| 44303A | Shaft Sub-assy, W/Pulley |
| 44305 | Cap Sub-assy, Vane Pump Oil Reservoir |
| 44306 | Reservoir Sub-assy, Vane Pump Oil |
| 44308 | Union Sub-assy, Pressure Port |
| 44313 | Rotor, Vane Pump |
| 44320 | Pump Assy, Vane |
| 44330 | Valve Assy, Flow Control |
| 44330A | Spring, Compression(FOR FLOW CONTROL VALVE) |
| 44337 | Union, Power Steering Suction Port |
| 44337A | Ring, O(FOR POWER STEERING SUCTION PORT) |
| 44341 | Plate, Vane Pump Side, Front |
| 44360 | Reservoir Assy, Vane Pump Oil |
| 44362A | Ring, O(FOR VANE PUMP OIL RESERVOIR) |
| 44369A | Bracket, Oil Reservoir, NO.1 |
| 44413F | Tube, Pressure Feed, NO.2 |
| 89438D | Switch, Power Steering Oil Pressure |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
