Toyota Fortuner (SUV)
2022-08 → 2023-07 · chassis GUN156,TGN156 · catalogue 6715E0 · Europe
Supported model
Data version 2024-09
Fuel Tank & Tube
58 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 23217D | Filter, Fuel Pump |
| 23220A | Pump Assy, Fuel W/Filter |
| 23225A | Spacer, Fuel Pump |

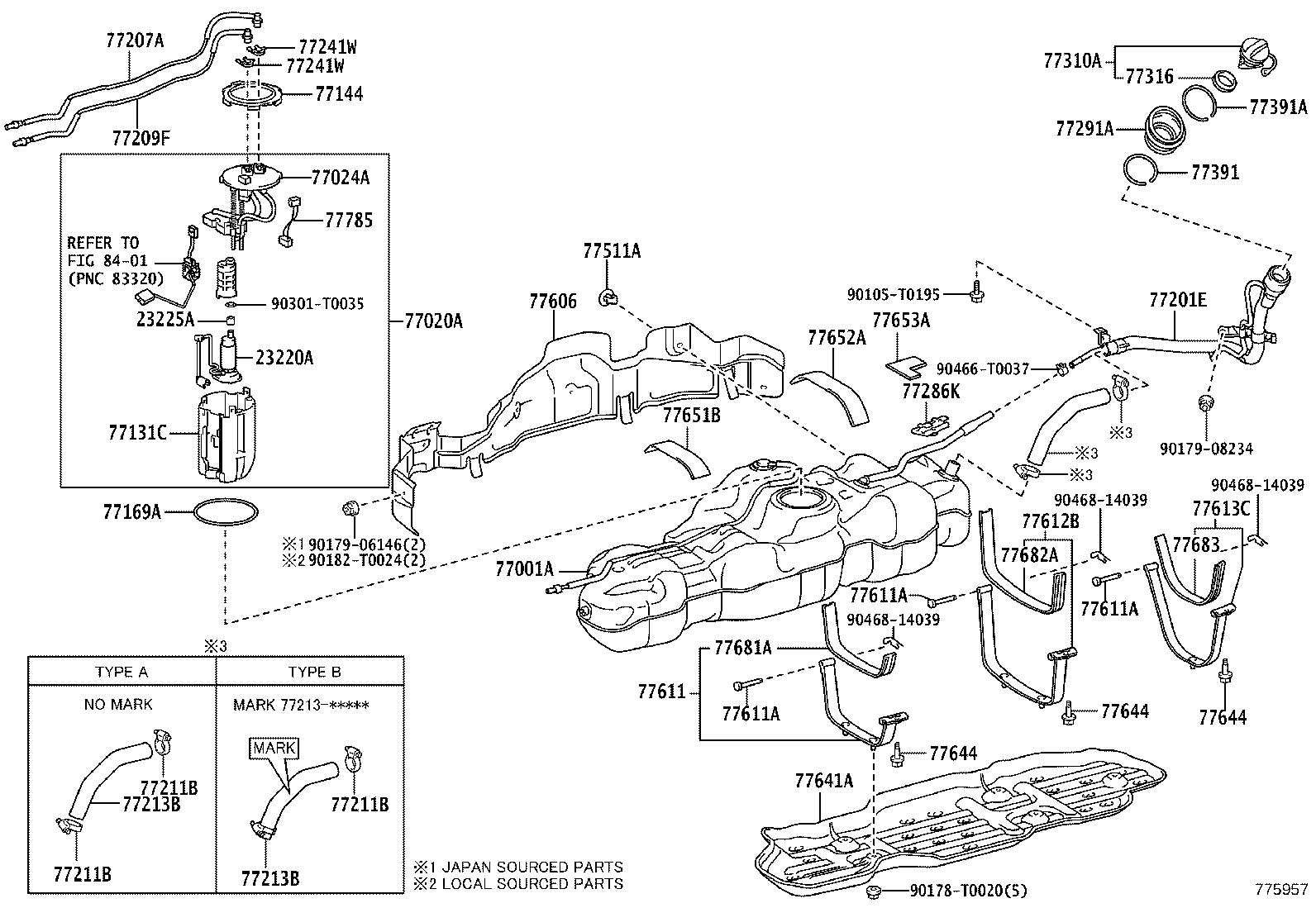

| 77001A | Tank Sub-assy, Fuel |
| 77010 | Tube Assy, Fuel Tank Vent |
| 77020A | Tube Assy, Fuel Suction W/Pump & Gage |
| 77024A | Plate Sub-assy, Fuel Suction |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77131C | Sub-tank, Fuel, NO.1 |
| 77144 | Retainer, Fuel Pump Gauge |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77201E | Pipe Sub-assy, Fuel Tank Filler |
| 77207A | Tube Sub-assy, Fuel Return |
| 77209F | Tube Sub-assy, Fuel Tank Main |
| 77211B | Clamp (FOR FUEL FILLER PIPE) |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77241V | Clip, Tube Joint |
| 77241W | Clip, Tube Joint |
| 77249 | Hose, Fuel Emission |

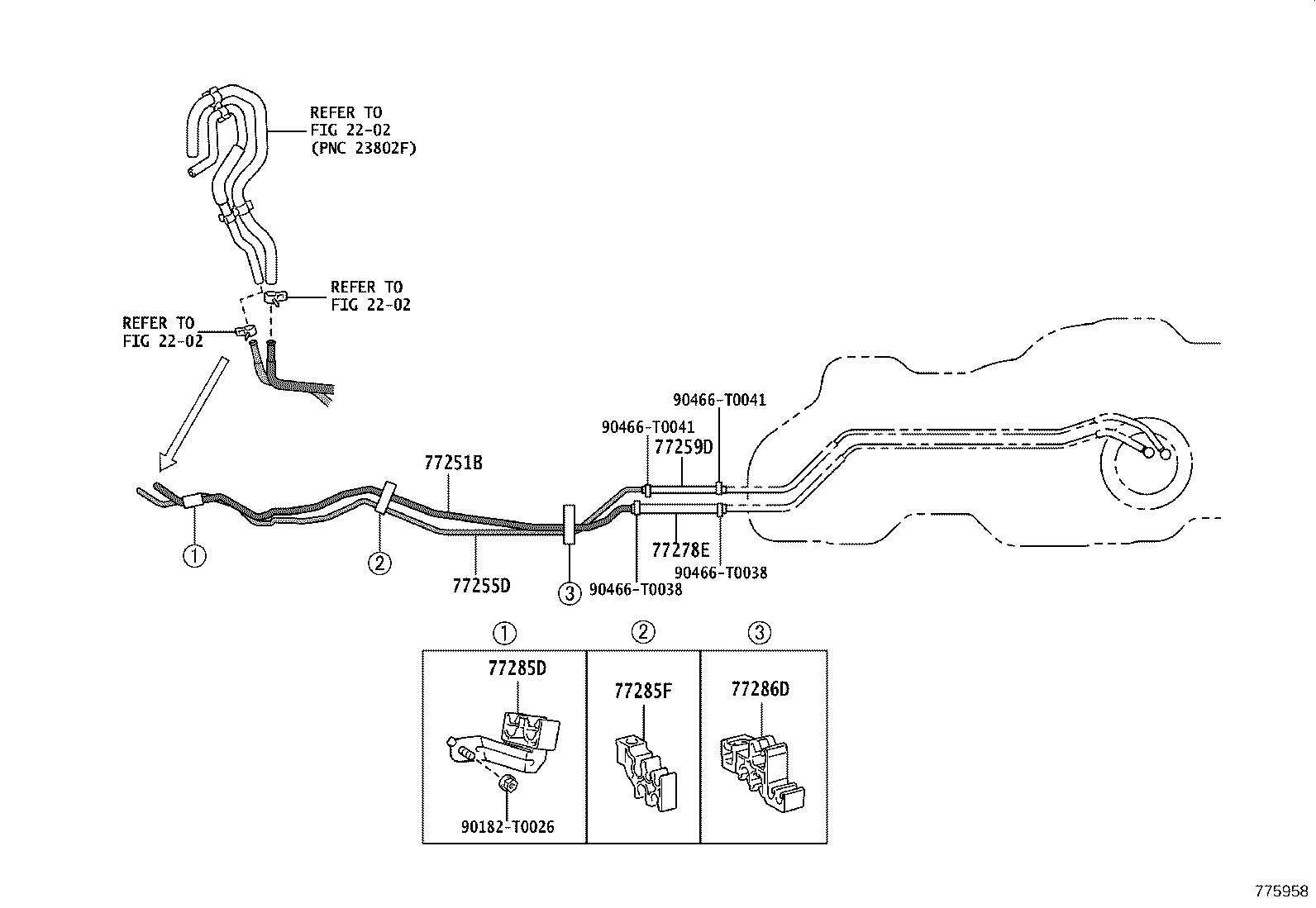

| 77251B | Tube, Fuel Main |
| 77255D | Tube, Fuel Return |
| 77259D | Hose, Fuel, NO.1 |

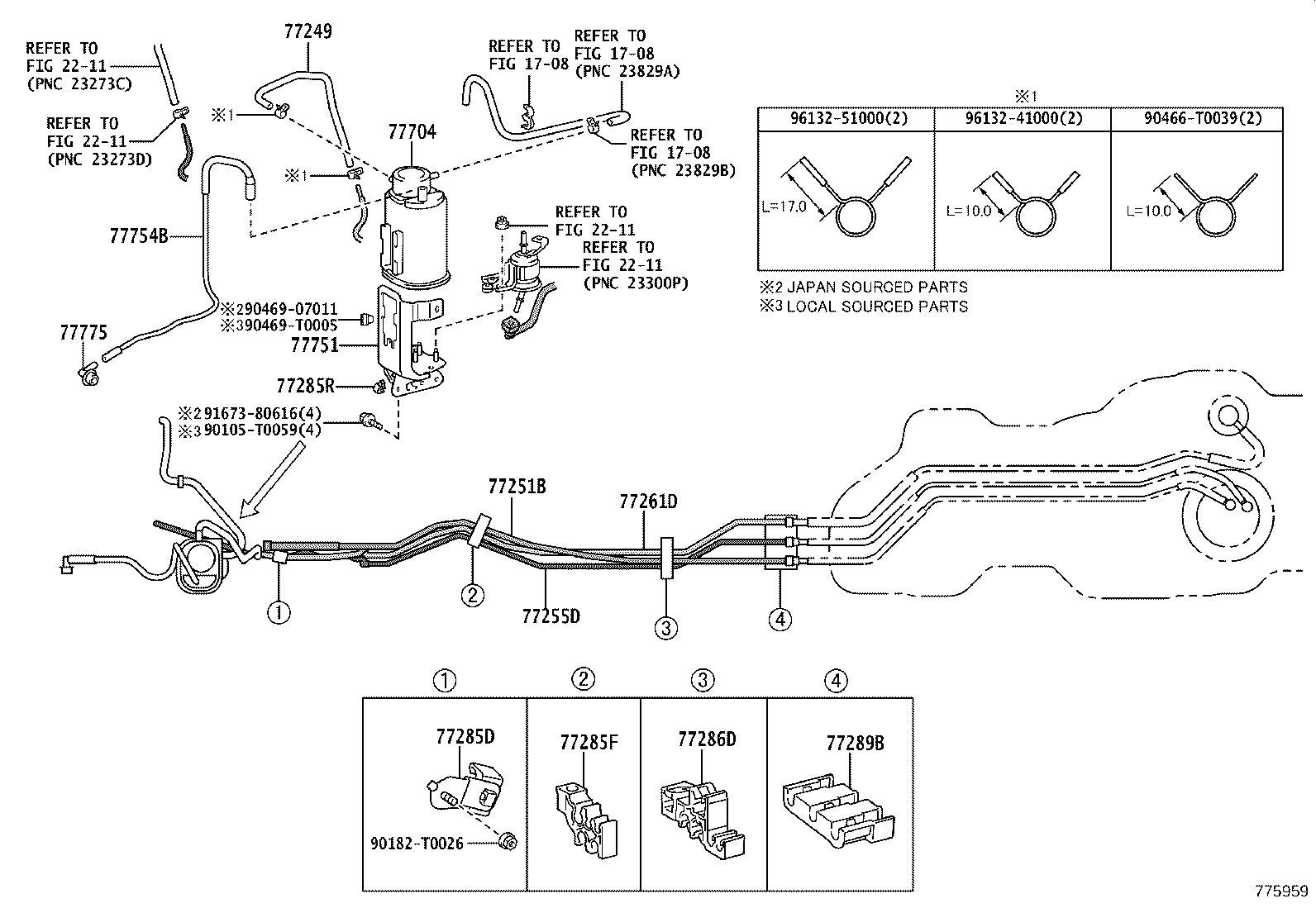

| 77261D | Tube, Fuel Tank TO Canister |
| 77278E | Hose, Fuel |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77285F | Clamp, Fuel Tube, NO.1 |
| 77285R | Clamp, Fuel Tube, NO.1 |
| 77286D | Clamp, Fuel Tube, NO.2 |
| 77286K | Clamp, Fuel Tube, NO.2 |
| 77289B | Clamp, Fuel Tube, NO.3 |
| 77291A | Shield, Fuel Tank Filler Pipe |

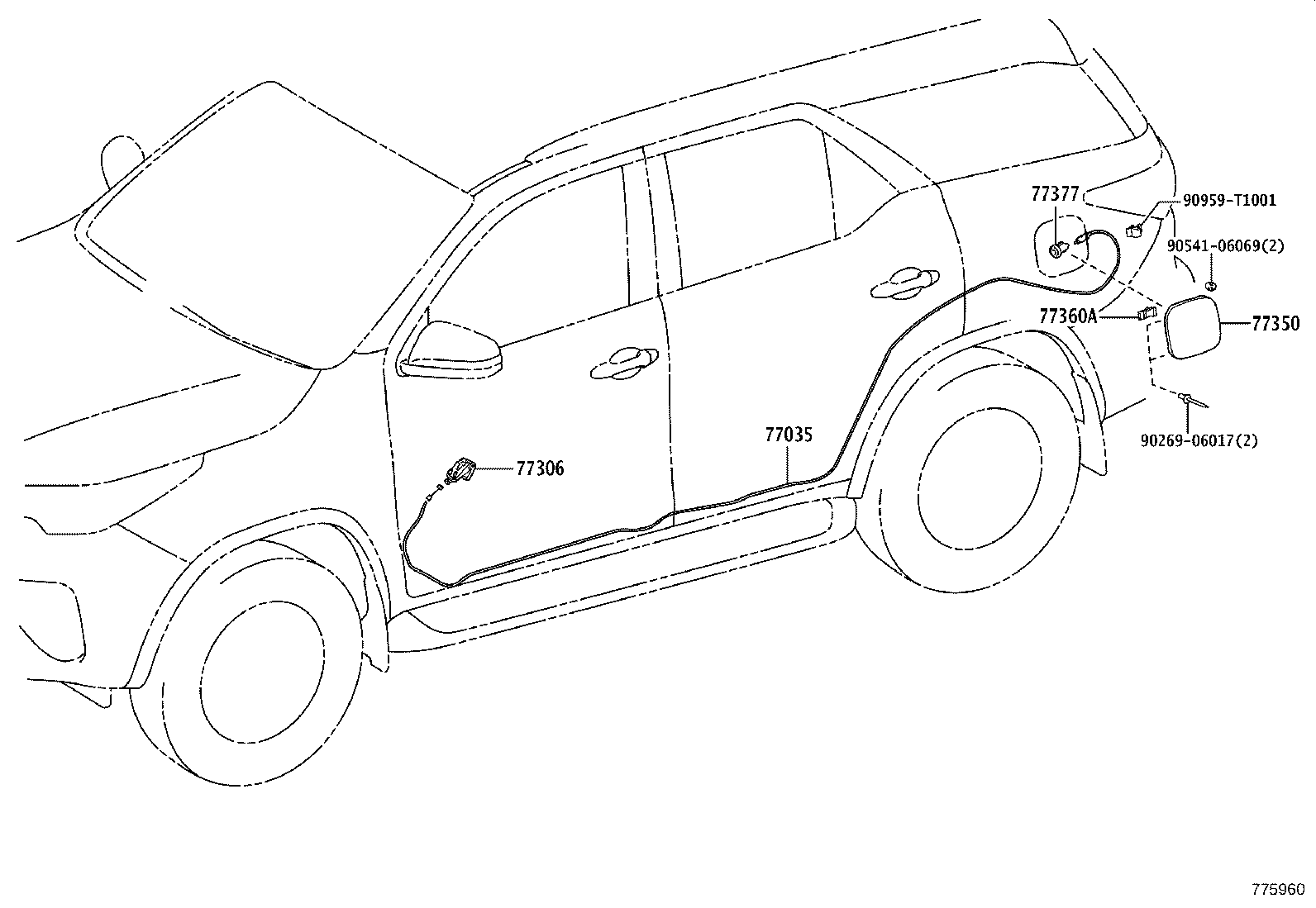

| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77360A | Spring Assy, Fuel Filler Opening Lid |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77391 | Ring, Fuel Inlet Box |
| 77391A | Ring, Fuel Inlet Box |
| 77511A | Bracket, Fuel Tank |
| 77606 | Protector Sub-assy, Fuel Tank, NO.1 |
| 77611 | Band, Fuel Tank |
| 77611A | Pin (FOR FUEL TANK BAND) |
| 77612B | Band, Fuel Tank, NO.2 |
| 77613C | Band, Fuel Tank, NO.3 |
| 77641A | Protector, Fuel Tank, NO.1 |
| 77644 | Bolt, Fuel Tank |
| 77651B | Cushion, Fuel Tank |
| 77652A | Cushion, Fuel Tank, NO.2 |
| 77653A | Cushion, Fuel Tank, NO.3 |
| 77681A | Seat, Fuel Tank Band |
| 77682A | Seat, Fuel Tank Band, NO.2 |
| 77683 | Seat, Fuel Tank Band, NO.3 |
| 77704 | Canister Sub-assy, Charcoal |
| 77751 | Bracket, Charcoal Canister Base |
| 77754B | Hose, Charcoal Canister Outlet |
| 77775 | Guide, Charcoal Canister Outlet |
| 77785 | Harness, Fuel Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
